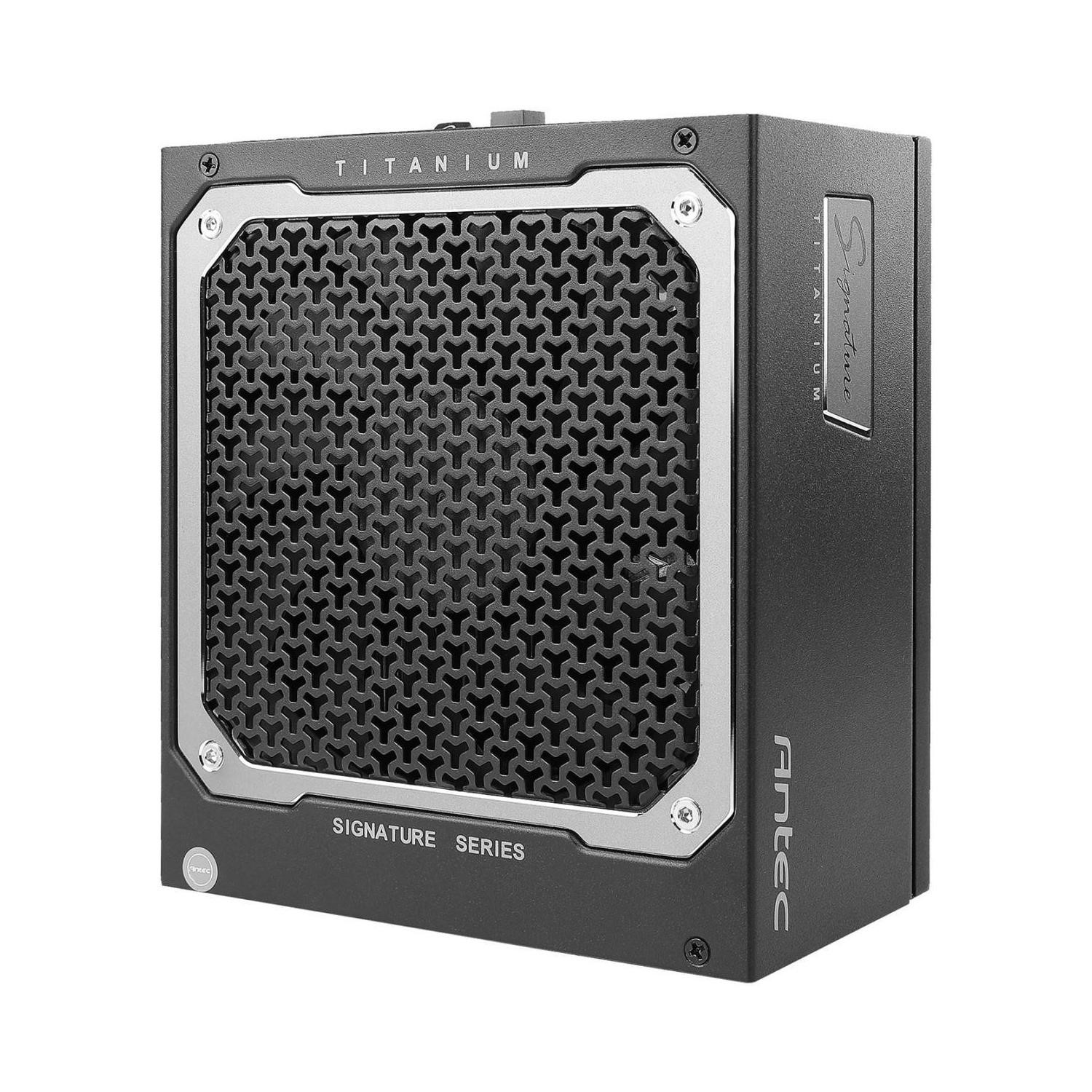

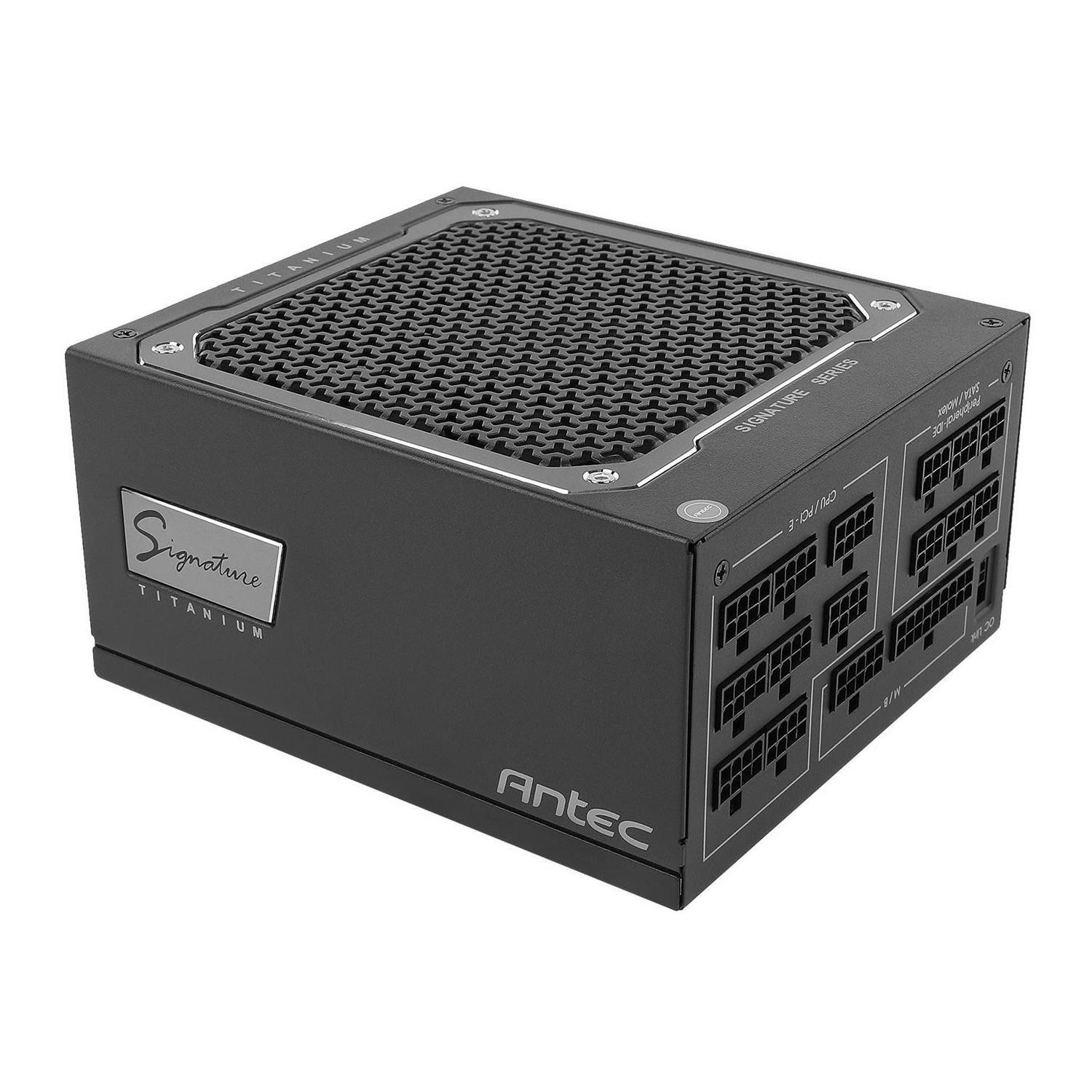

Antec Signature 1000W Fully Modular 80+ Titanum Power Supply

SKU: 0-761345-11713-5 Quickfind Code: 1819814
Was: £233.98     You save: £64.01
£169.97
Why buy me
  • Model- X9000A505-18
  • Type -ATX
  • Modular -Fully
  • Dimension -(W x L x H) 150 x 170 x 86mm
  • Input Voltage -100-240
  • Input Current -13A ~ 6.5A
  • Input Frequency Range -47Hz ~ 63Hz
  • PFC - APFC
click

ANTEC SIGNATURE 1000W 80 PLUS TITANIUM FULLY MODULAR PSU POWER SUPPLY

The Antec Signature 1000W 80 Plus Titanium Fully Modular PSU Power Supply is equipped with features which ensure peak performance for enthusiasts and gamers. The PSU boasts unparalleled stability and 80 PLUS® Titanium-certified efficiencies. Advanced thermal control with Zero RPM mode helps to enable the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.

TECHNICAL SPECIFICATIONS

  • Model- X9000A505-18
  • Type -ATX
  • Modular -Fully
  • Dimension -(W x L x H) 150 x 170 x 86mm
  • Input Voltage -100-240
  • Input Current -13A ~ 6.5A
  • Input Frequency Range -47Hz ~ 63Hz
  • PFC -
    • APFC
    • PFC at half / full load:
    • <0.95 at AC 110v 60Hz(typical)
    • <0.90 at AC 230v 50Hz(typical)
  • Power Good Signal- 100 ~ 500mS
  • Efficiency -At 10% / 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 94% / 90%.
  • Protection- OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
  • Output Capacity- 1000W
  • Operation Temperature -0 ~ 40°C
  • Regulatory cTUVus / TUV / CB [IEC62368 Compliant] / CE / FCC / BSMI / 3C / KC / RCM
  • Fan -135 x 135 x 25(mm) FDB Silent Fan
  • Certifications- 80 Plus Titanium

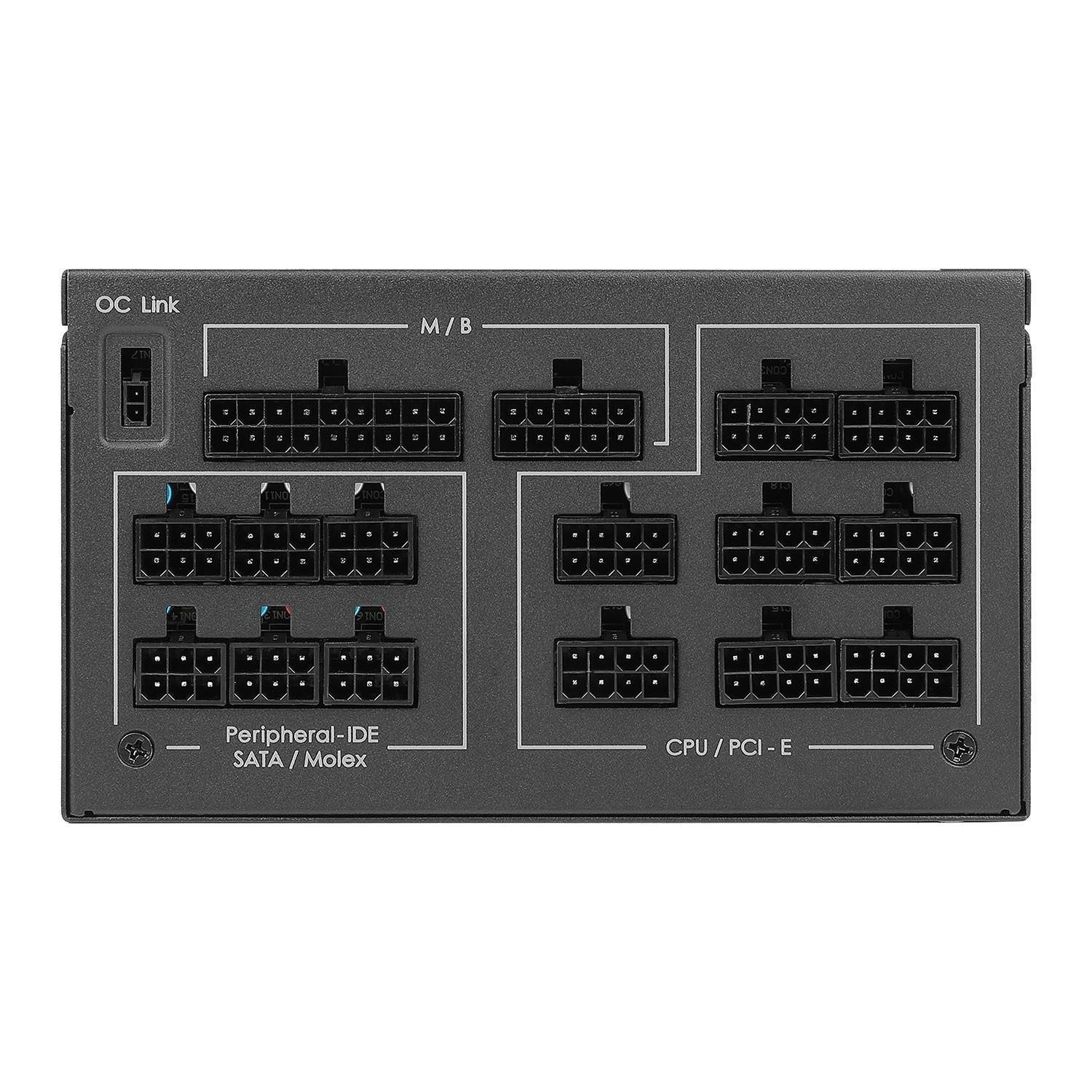

  • Connector-
    • 1 x MB 24(20 + 4) Pin
    • 2 x 8(4 + 4) Pin EPS 12V
    • 8 x 8(6 + 2) Pin PCI-E
    • 16 x SATA
    • 5 x Molex
    • 1 x FDD

Dimensions
Depth 17cm
Key Specification
Brand Antec
Power 1000W
Modularity Fully Modular
80 PLUS certification 80 PLUS Titanium
Form Factor ATX
Warranty 3 year warranty
Dimensions
Height 9cm
Width 15cm
