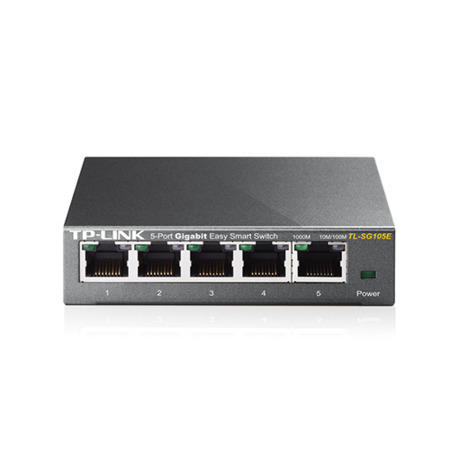

  • TP-link 5-Port Gigabit Easy Smart Switch - TL-SG105E TL-SG105E

    Quickfind code: 900067
    Condition: Brand new

    Was: £27.97     You save: £3
    £24.97

    See all delivery & collection options

    We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield store, or from thousands of nationwide CollectPlus collection points.

    Simply enter your postcode below to see your delivery options:

    Enter delivery postcode for options and prices:
    click to close
    Why buy me
    • 5 10/100/1000Mbps RJ45 ports
    • Provides network monitoring, traffic prioritization and VLAN features
    • Innovative energy-efficient technology reduces power output by up to 75%
    • Simple network set-up on top of plug-and-play connectivity
    • Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
    More Info » Tech Spec »
    click
    Valid promotions & discounts

    £10 off orders over £250 when you trial Which? for only £1. Click here for more information.
    First month £1, then £10.75 per month unless cancelled

    Great Value: We constantly check our prices to give you the best deal possible.

    click
    Ways to pay

    Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

    payment options

    We now accept Amazon Pay!
    In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

    click

    Popular Bundles

    Product Information

    What This Product Does

    The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.

    Simple & Effective Management

    TP-LINK's Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

    Go Green with Your Ethernet

    You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network's capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    Power down Idle Ports

    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

    Power Budget According to Cable Length

    Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

    Ease of Use

    TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

    • 5 10/100/1000Mbps RJ45 ports
    • Provides network monitoring, traffic prioritization and VLAN features
    • Innovative energy-efficient technology reduces power output by up to 75%
    • Simple network set-up on top of plug-and-play connectivity
    • Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility


    Tech Spec

    Data transmission
    Jumbo Frames support
    MAC address table 8192 entries
    Number of VLANs 32
    Store-and-forward
    Switching capacity - Gbit/s
    Throughput 7.4 mpps
    Design
    Certification FCC, CE, RoHS
    Colour of product Black
    LED indicators
    Rack mounting -
    Management features
    Quality of Service (QoS) support
    Switch layer L2
    Switch type -
    Web-based management
    Networking
    10G support
    Auto MDI/MDI-X
    Flow control support
    IGMP snooping
    Link aggregation
    Networking standards IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
    Port mirroring
    VLAN support
    Performance
    Packet buffer memory 250 MB
    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity 5
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Copper ethernet cabling technology 1000BASE-T,100BASE-TX,10BASE-T
    Gigabit Ethernet (copper) ports quantity 5
    SFP ports quantity 0
    SFP+ ports quantity 0
    Power
    Energy Star certified -
    Power consumption (typical) - W
    Power Over Ethernet (PoE)
    Power over Ethernet (PoE) Support
    Operational conditions
    Operating relative humidity (H-H) 10 - 90
    Operating temperature (T-T) 0 - 40
    Storage relative humidity (H-H) 5 - 90
    Storage temperature (T-T) -40 - 70
    Packaging data
    Quick Start Guide
    System Requirements
    Compatible operating systems Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
