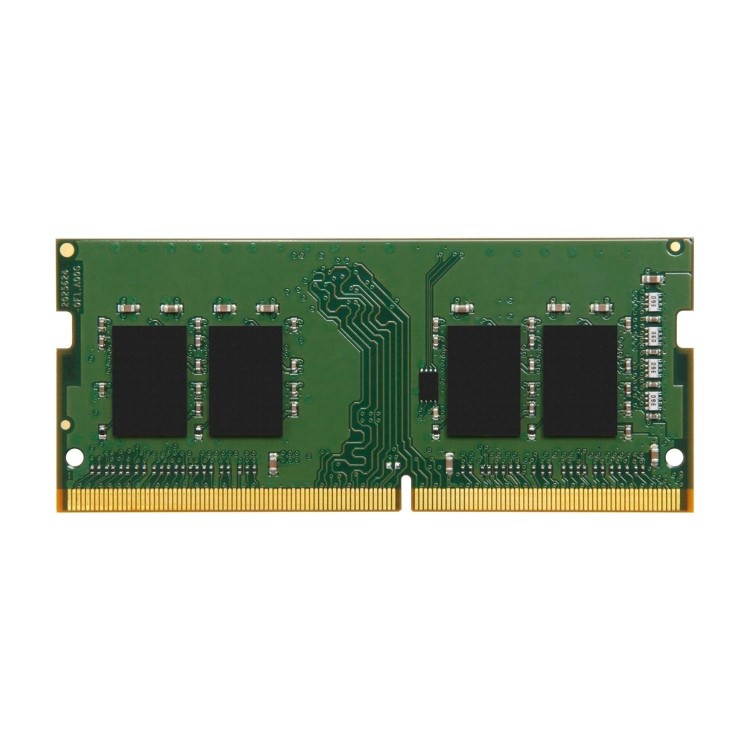

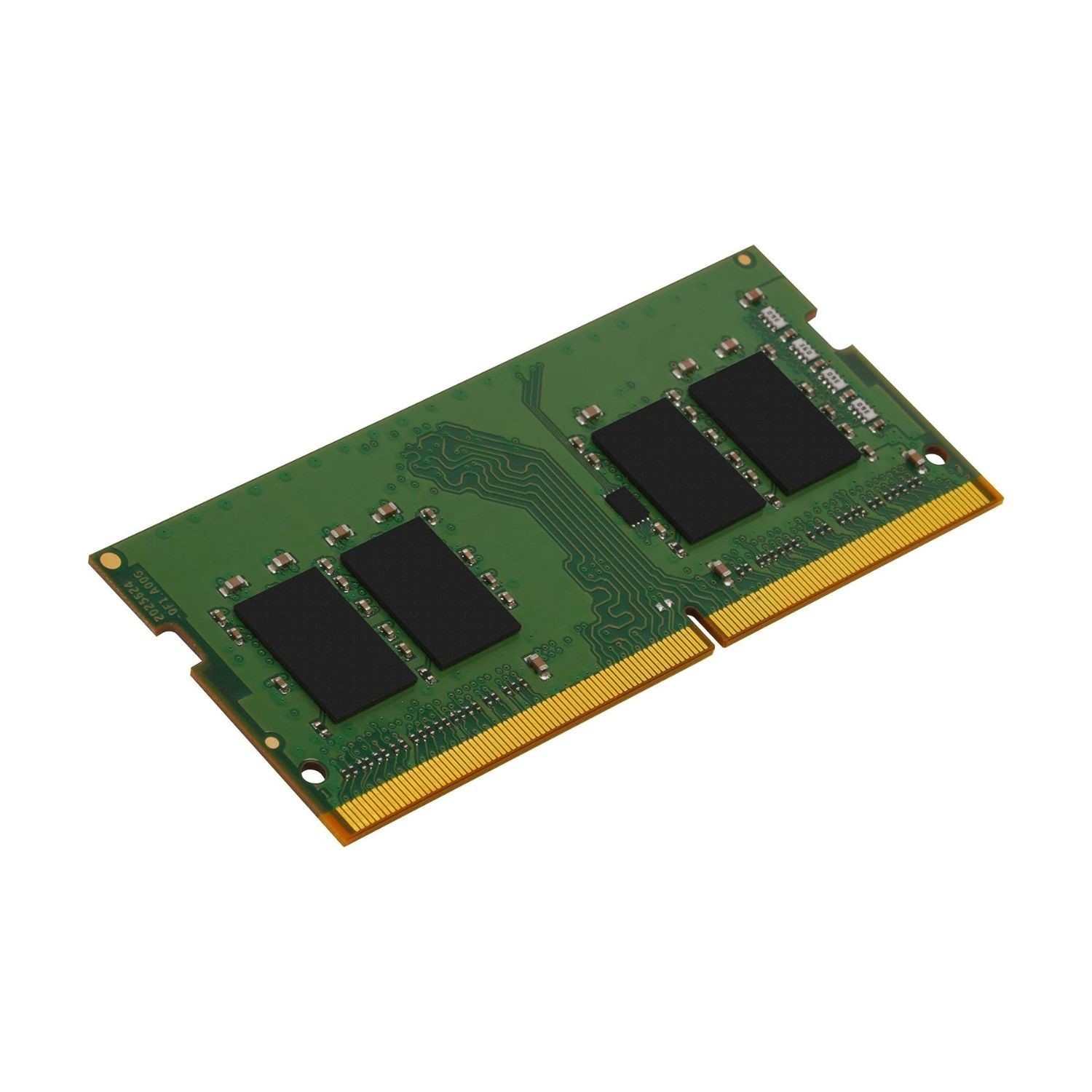

Optimized Power Consumption
The module operates at a typical voltage of 1.2V for both VDD and VDDQ, ensuring efficient power usage while maintaining performance.
Flexible Voltage Parameters
Features a VPP of 2.5V and a VDDSPD range from 2.2V to 3.6V, offering versatility in voltage management for different system requirements.
Enhanced Signal Stability
Implements nominal and dynamic on-die termination (ODT) for data strobe and mask signals, optimizing signal integrity for reliable data transactions.
Low-Power Auto Self Refresh (LPASR)
The LPASR mechanism reduces power consumption during idle periods, enhancing energy efficiency without sacrificing data integrity.
Data Bus Inversion (DBI) for Data Bus
Incorporates DBI technology to minimize signal interference, improving data integrity and overall memory performance.
On-Die VREFDQ Generation and Calibration
This feature ensures accurate data reference voltages directly on the memory chip, enhancing performance stability and compatibility.
High Bank Count for Improved Parallelism
With 16 internal banks divided into 4 groups, the module facilitates parallel processing, improving data access times and throughput.
Efficient Data Handling
Offers fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS), with the flexibility to select BC4 or BL8 on-the-fly for optimized performance.
