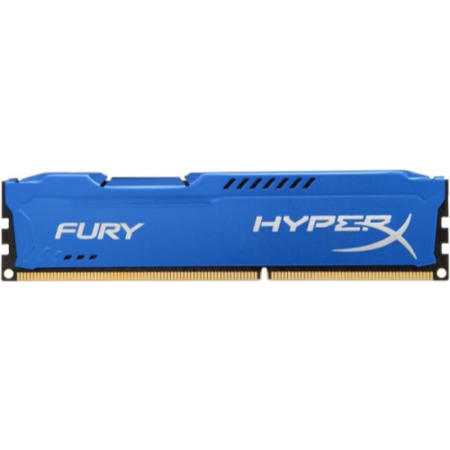

HyperX Fury 4GB DDR3 1600MHz Non-ECC DIMM Memory - Blue HX316C10F/4

Quickfind: 866694 SKU: HX316C10F/4

Sorry, I’m out of stock!

For help finding something similar, just give us a call on 0871 244 0934, we can email you if it comes back into stock »

Similar products

Other customers search for...

Product Information

Specifications

CL(IDD) 10 cycles
Row Cycle Time (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 37.5ns (min.)
Maximum Operating Power TBD W*
UL Rating 94 V - 0
Operating Temperature 0oC to 85o C
Storage Temperature -55oC to +100o C
*Power will vary depending on the SDRAM used.

FEATURES
• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180" (30.00mm), single sided component



Tech Spec

Key Specification
Brand HyperX
Memory voltage 1.5V
Data integrity check Non-ECC
Memory Speed 1600MHz
Capacity 4GB
Memory type DRAM
Other Specification
Registered/Buffered Unbuffered
Form Factor DIMM 240-pin
Details
Product Codes 0740617230376, 3064510, 342A622, D3-4G1600KHX10-FU, HX316C10F/4, K-HX316C10F/4
