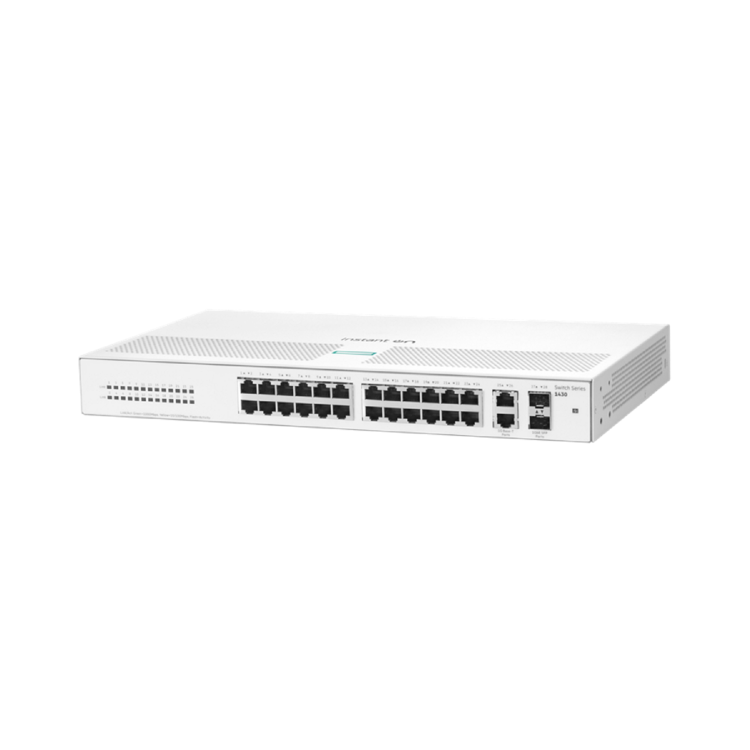

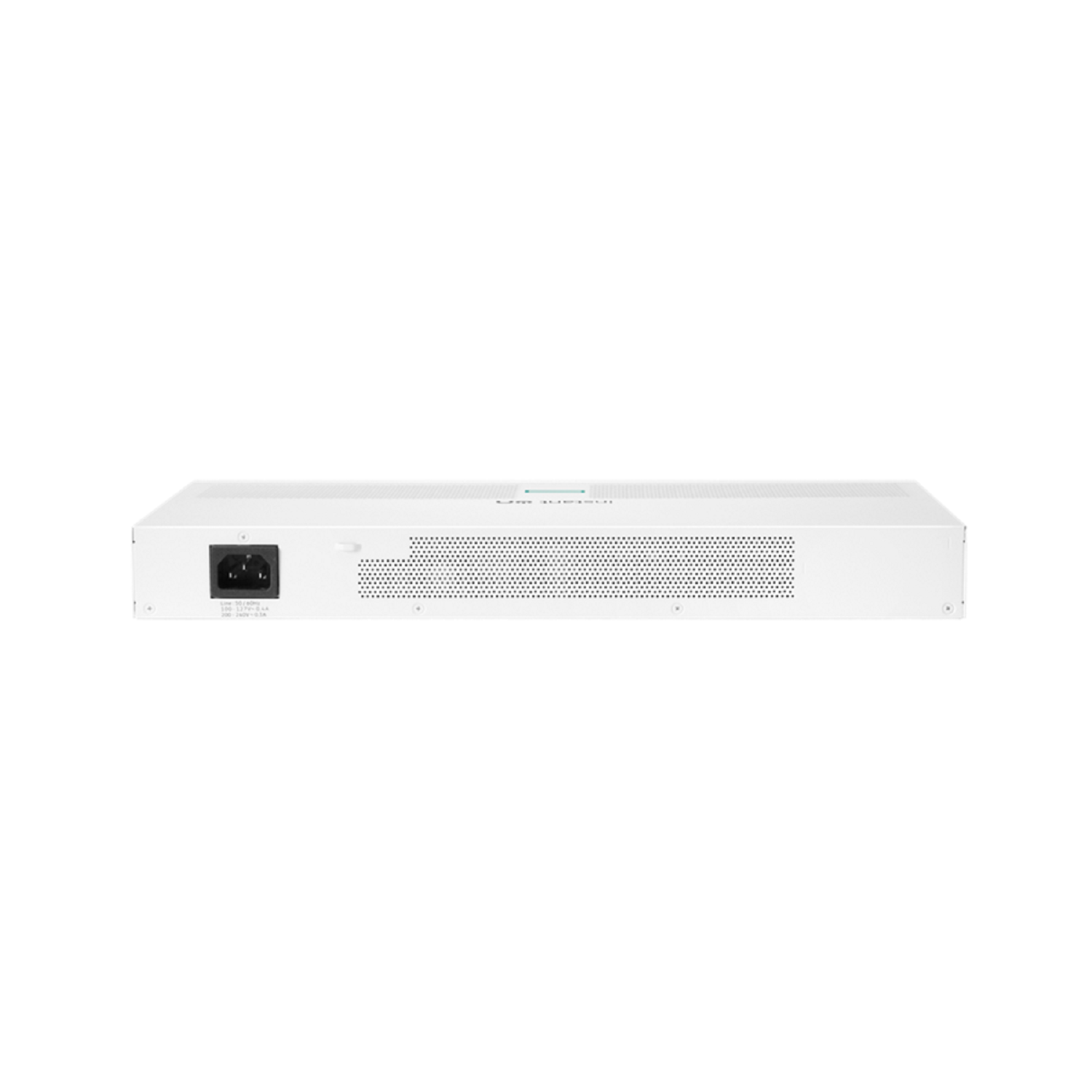

HPE Networking Instant On Switch Series 1430 R8R50A 24-Port Unmanaged Gigabit Switch
The HPE Networking Instant On Switch R8R50A (1430 Series) is a plug-and-play unmanaged switch for small businesses looking for simple, reliable, and low cost network connectivity. This easy-to-use switch delivers Layer 2 Gigabit Ethernet switching capabilities — at an affordable price point — to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, and zero ongoing maintenance, this switch delivers simple, reliable connectivity for the smallest SMBs and home offices.
Key Features
- Unmanaged Layer 2 Gigabit Ethernet switch
- No configuration or management needed
- Plug-and-play with fully automated functions and zero ongoing maintenance
- Quality of Service (QoS) and flow control for improved network efficiency
- Fanless with Energy Efficient Ethernet for low power consumption
Better together
Instant On products work together to provide a seamless WiFi experience. Wired and wireless voice traffic is prioritised with high QoS priority end-to-end for optimal voice performance.
Gigabit Ethernet speeds
Supports half/full-duplex auto-negotiating capability on access ports that doubles the throughput of every port.
Simplified cabling
Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.
EAPoL frames forwarding
802.1x EAP over LAN frames are forwarded through the switch so that clients can authenticate when the device gives connectivity between an authenticator and supplicants.
STP BPDU frames forwarding
The switch forwards the BPDU frames to make sure that Spanning Tree Protocol works correctly preventing loops in the topology.
Prioritise voice and video
Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
Flow control
Provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
Jumbo frame support
Provides up to 9216 bytes frame size to improve the performance of large data transfers.
Energy Efficient Ethernet (EEE)
Compliant with 802.3az standard requirements to save energy during periods of low data activity.
Fanless operation
Requires less power to operate and enables quiet operation in acoustically sensitive environments.
