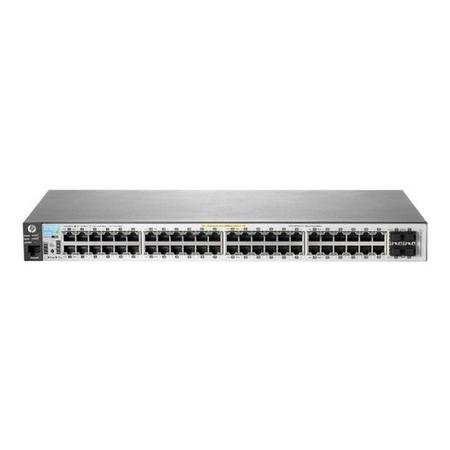

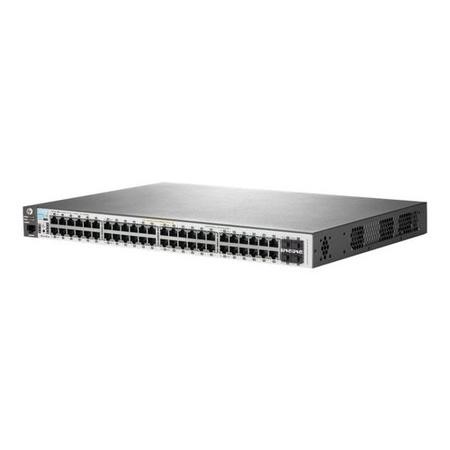

  • HPE Aruba 2530-48G Ports Managed Rack Switch J9772A

    Quickfind code: 769738
    Condition: Brand new

    or £44.79 a month interest free more info

    See all delivery & collection options

    We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield store, or from thousands of nationwide CollectPlus collection points.

    Simply enter your postcode below to see your delivery options:

    Enter delivery postcode for options and prices:
    *Free Delivery: Postcode exclusions apply. Excludes orders under £50 & large 2 man delivery items. See Delivery Information »
    click to close
    Why buy me
    • Model No. - 2530-48G-PoE+ Switch
    • Switch type - Managed
    More Info » Tech Spec »
    Valid promotions & discounts

    £10 off orders over £250 when you trial Which? for only £1. Click here for more information.
    First month £1, then £10.75 per month unless cancelled

    Great Value: We constantly check our prices to give you the best deal possible.

    Ways to pay

    Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard and Maestro to make placing an order easy.

    payment options

    We now accept Amazon Pay!
    In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.


    Popular Bundles

    Product Information

    HP Deals & Promotions

    Cashback available when purchased with a qualifying transceiver, click here for further information

    The HP 2530 Switch Series consists of 12 fully managed Layer 2 edge switches that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, these Gigabit and Fast Ethernet switches deliver full Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, and IPv6 host support.

    The HP 2530 Switch Series offers uplink flexibility with four Gigabit Ethernet uplinks on all 24- and 48-port models. Gigabit Ethernet uplinks are four small form-factor pluggable (SFP) slots for fiber connectivity on the 24- and 48-port Gigabit Ethernet models.

    The Fast Ethernet 24- and 48-port models have two SFPs and two RJ-45 Gigabit uplinks. The compact and fanless 8-port switches offer additional flexibility with two dual-personality ports that can be used as either RJ-45 Gigabit Ethernet or SFP ports.

    For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530 PoE+ switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port. The switch series is easy to use, deploy, and manage via SNMP, CLI, and Web GUI.

    It offers flexible wall, table, and rack mounting; quiet operation with fanless and variable speed fan models; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet). These switches include a lifetime warranty, as well as all software releases and technical phone support.


    Tech Spec

    Data transmission
    MAC address table - entries
    Maximum data transfer rate 1 Gbit/s
    Supported data transfer rates 10/100/1000 Mbps
    Switching capacity 104 Gbit/s
    Throughput 77300000 Mpps
    Colour of product Black
    Electromagnetic compatibility FCC, EN, VCCI
    Form Factor 19U
    LED indicators
    Rack mounting
    Safety CAN/CSA, EN, UL
    Management features
    Switch layer -
    Switch type -
    Web-based management
    10G support
    Auto MDI/MDI-X
    Flow control support
    Full duplex
    Link aggregation
    Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
    Spanning tree protocol
    Optical fiber
    Fiber optic connector SFP
    Flash memory 128 MB
    Processor frequency 800 MHz
    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity 52, 48, 52
    SFP/SFP+ slots quantity 4
    AC input frequency 50/60
    AC input voltage 100-127
    Energy Star certified -
    Input current 5.8 A
    Power consumption (typical) 476 W
    Power Over Ethernet (PoE)
    Power over Ethernet (PoE) Support
    Management protocols LLDP, SNMP, LLDP-MED, SNMPv1/v2c/v3
    Operational conditions
    Operating altitude 0 - 3000
    Operating relative humidity (H-H) 15 - 95
    Operating temperature (T-T) 0 - 45
    Other features
    Connectivity Technology Wired
    Ethernet interface type Fast,Gigabit
    Ethernet LAN
    Ethernet LAN data rates 10,100,1000 Mbit/s
    Latency 2.3 µs
    Networking features Gigabit Ethernet
    Weight & dimensions
    Depth 322 mm
    Height 44 mm
    Weight 4720 g
    Width 443 mm
