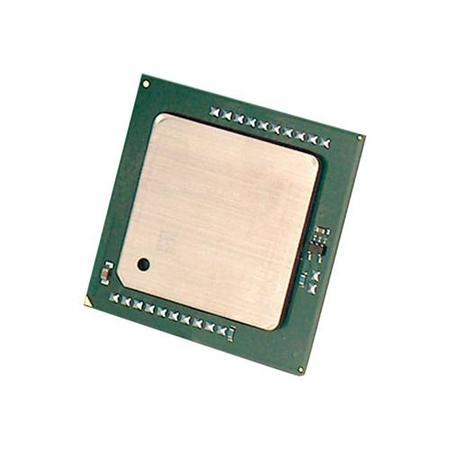

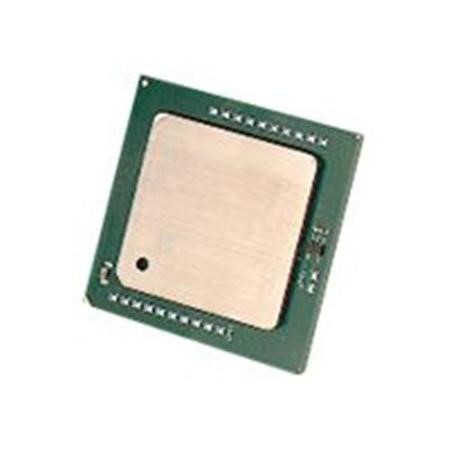

HP DL180 Gen9 Intel Xeon E5-2620v3 6-Core 2.40GHz 15MB L3 Cache Processor

SKU: 733921-B21 Quickfind Code: 924257

SAVE 23%

HP DL180 Gen9 Intel Xeon E5-2620v3 6-Core 2.40GHz 15MB L3 Cache Processor

Was: £727.19 You save: £164.22

Why buy me

(1) HP DL180 Gen9 Intel Xeon E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit
Hewlett Packard Enterprise
Xeon
HP DL180
E5-2620V3

click

Deliver cloud computing, real-time analytics, processing for your mission-critical business, and big data insights. Improve data center efficiency and reliability to handle any workload.

What's in the box?

(1) HP DL180 Gen9 Intel Xeon E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit

View more View less

Features
Embedded options available
Execute Disable Bit
Idle States
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Scalability	2S
Supported instruction sets	AVX 2.0
Thermal Design Power (TDP)	85 W
Thermal Monitoring Technologies
Graphics
On-board graphics adapter
Memory
ECC supported by processor
Maximum internal memory supported by processor	768 GB
Memory bandwidth supported by processor (max)	59 GB/s
Memory channels supported by processor	QUAD
Memory clock speeds supported by processor	1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM
Operational conditions
Tcase	72.6 °C
Power
VID Voltage Range	0.65 - 1.30
Processor
Box	-
Bus type	QPI
Component for	server/workstation
Number of QPI links	2
Processor boost frequency	3.2 GHz
Processor cache	15 MB
Processor cache type	L3
Processor cores	6
Processor family	Intel Xeon E5 v3
Processor frequency	2.4 GHz
Processor front side bus	- MHz
Processor lithography	22 nm
Processor Model	E5-2620V3
Processor operating modes	64-bit
Processor socket	LGA 2011-v3
Processor threads	12
System bus rate	8 GT/s
Processor special features
Enhanced Intel SpeedStep Technology
Intel AES New Instructions
Intel Demand Based Switching
Intel Flex Memory Access
Intel Hyper-Threading Technology
Intel Identity Protection Technology
Intel Secure Key
Intel Trusted Execution Technology
Intel TSX-NI
Intel Turbo Boost Technology	2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel vPro Technology
Intel VT-x with Extended Page Tables (EPT)
OS Guard
Other features
Compatibility	HP DL180
Intel Virtualization Technology	VT-d,VT-x
