Eaton Environmental Monitoring Probe - UPS monitoring module - black - for P/N_ EMAB33 EMIB34 EMOB03 EMOB04 EMOB05 EMOB16 EMOB17 EMOB18 EMOB20 EMOB22

Key Features

• When temperature and humidity value exceed selectable limits, the event is logged in the event history.
• The EMP monitors temperature and humidity information of any environment that you want to protect your critical equipment.
• The EMP measures temperatures from 0°C to 70°C with an accuracy of ±2°C. • The EMP measures relative humidity from 10% to 90% with an accuracy of ±5%.
• It can be located away from the ePDU with a CAT5 network cable up to 20 m long.
• The hot-swap feature simplifies installation by enabling you to install the probe safely without turning off power to the ePDU/UPS or to the loads that are connected to it.
• The EMP monitors the status of the two user-provided contact devices.
• Temperature, humidity, and contact closure status can be displayed through a web browser, a serial interface, or an onboard LCD interface (ePDU only).
• User-selectable alarm thresholds enable you to define acceptable temperature or humidity limits.
• Email notification through Simple Mail Transfer Protocol (SMTP), using email client software when acceptable alarm limits are exceeded or contact status changes.
• Changes in external contact status are logged in the ePDU event history log.

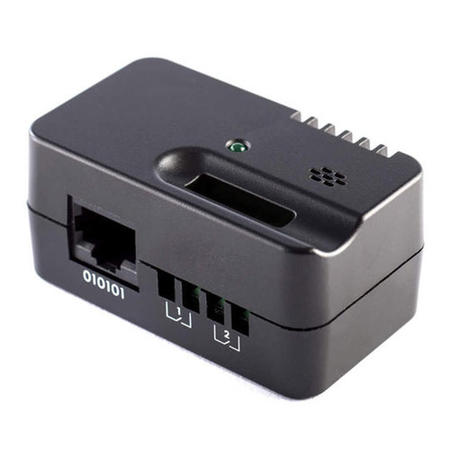

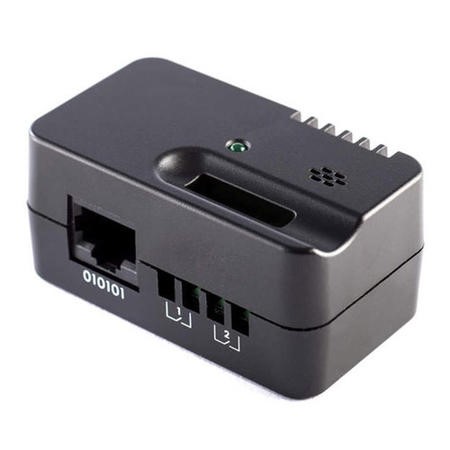

The optional environmental monitoring probe (EMP) is a connectivity device that enables you to collect temperature and humidity readings and monitor the environmental data remotely. You can also collect and retrieve the status of two contact devices.
