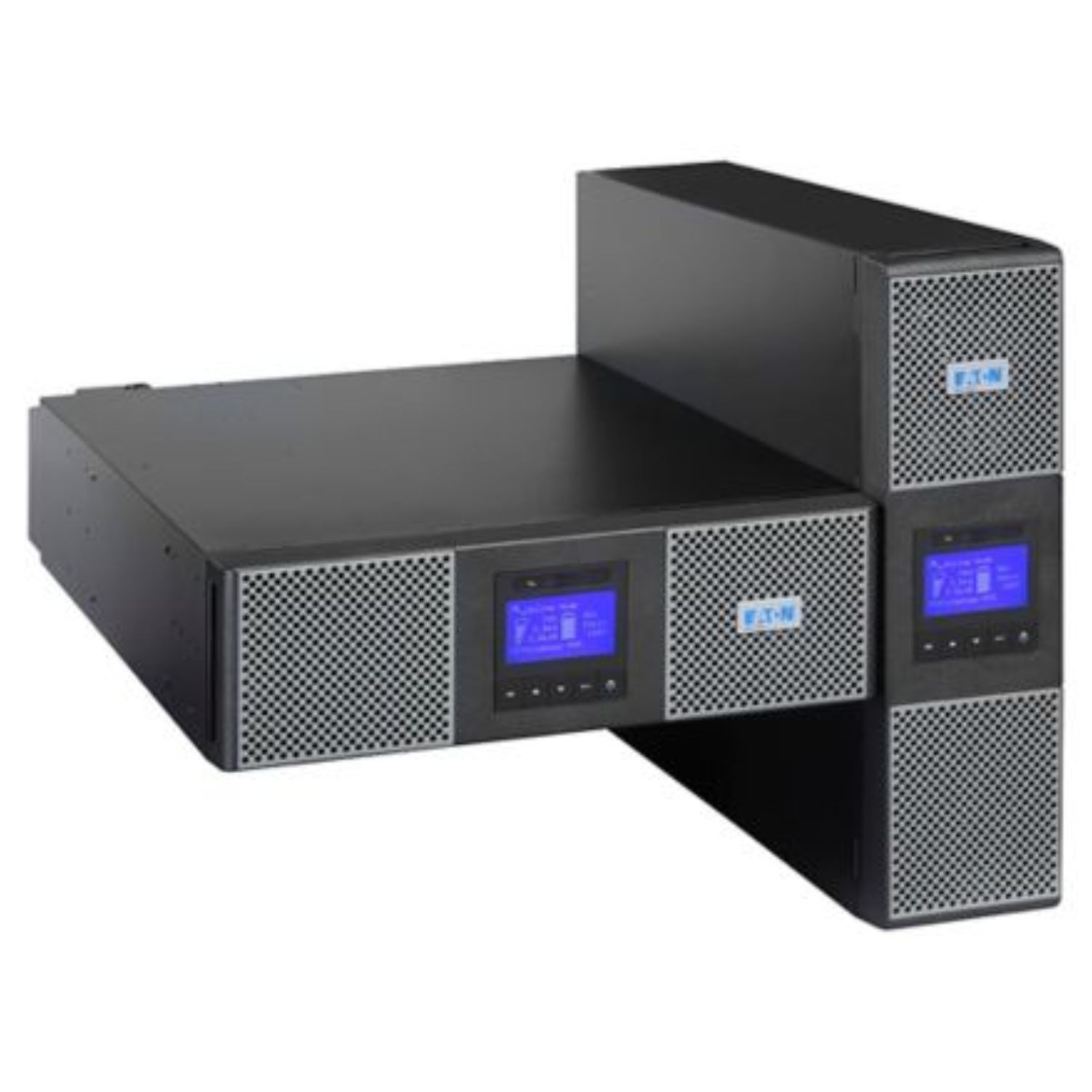

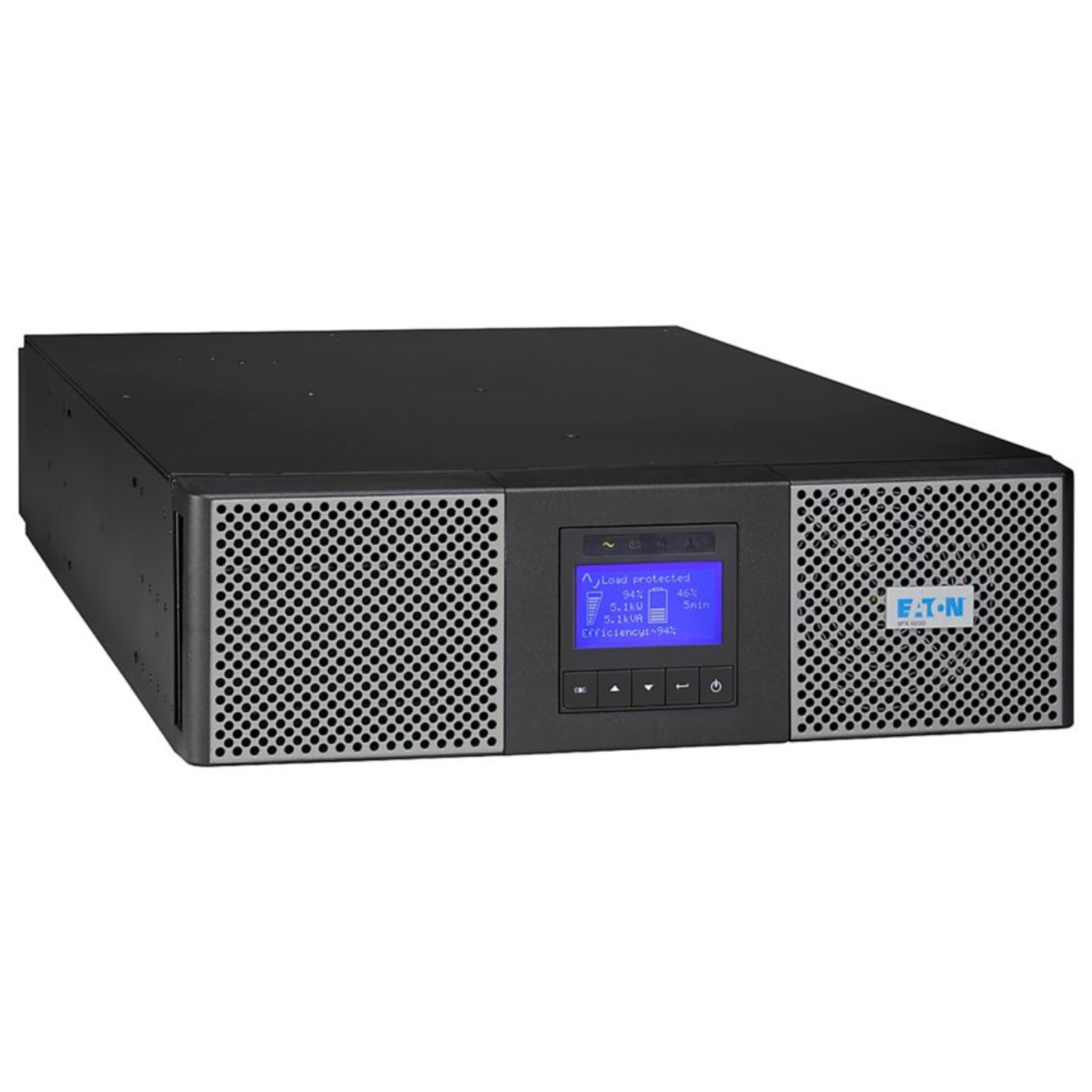

The Eaton 9PX UPS provides energy efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Key Product Info
- On-line double conversion topology, with automatic by-pass and PFC system
- Energy efficient UPS with up to 94% efficiency in Online mode and 98% in Hi-efficiency Mode
- Unmatched power density with 4500W in 3U
- Compatibility with power factor corrected power supplies (ratio W/VA=0.9)
- Parallel operation up to 2 UPSs (redundancy or power extension)
- Hot swappable batteries from front panel
- Easy to operate : next-generation multilingual LCD display
- Remote reboot and runtime optimization thanks to 8 programmable outlets (2 x 4 oulet groups)
- Energy metering accessible through LCD and Software
- Ships with Network interface (SNMP+Web) : Network Management Card
- Monitoring & shutdown software for VMware, Hyper-V, Citrix Xen, Windows, Linux, SUN Solaris, HP-UX, IBM AIX

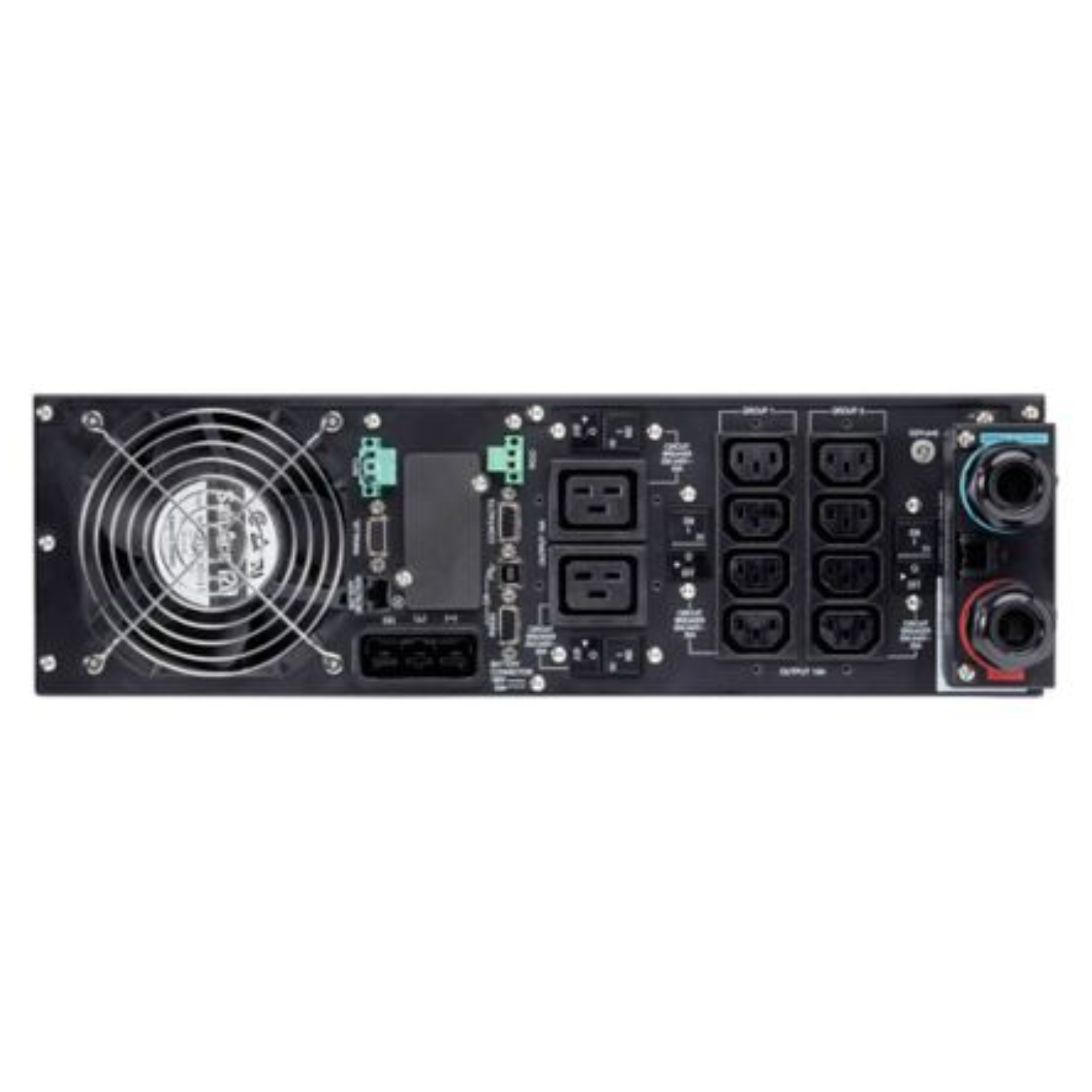

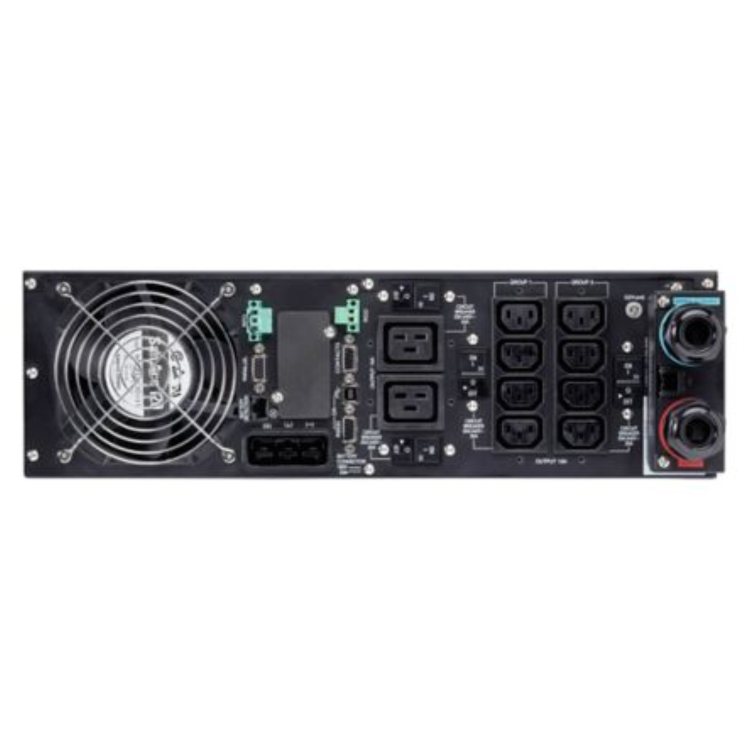

- 1 USB port + 1 Serial + 4 dry contacts (DB9)
- All necessary hardware for rack-mounting included : 19’ brackets + universal rails + hardware kit
- Advance Battery Management (ABM) technology to increase battery lifetime

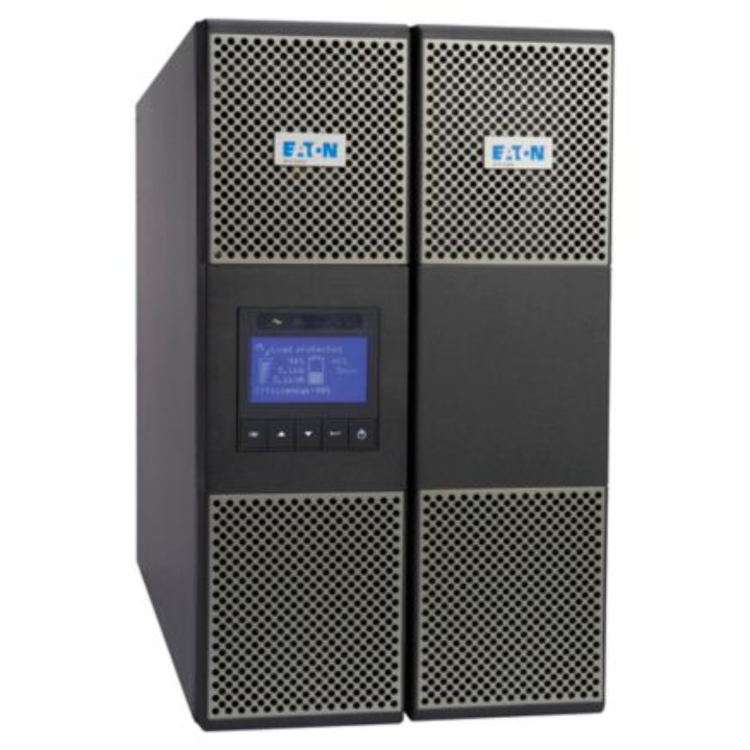

- Long backup time with up to 12 optional EBM cabinets
- Connectors for Remote power off or remote OFF/ON function
Product Features
- Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing. - Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems. - Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology! - Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.
What's in the box?
- UPS
- 2 IEC-IEC output cables
- Network Management Card
- USB cable
- Serial cable

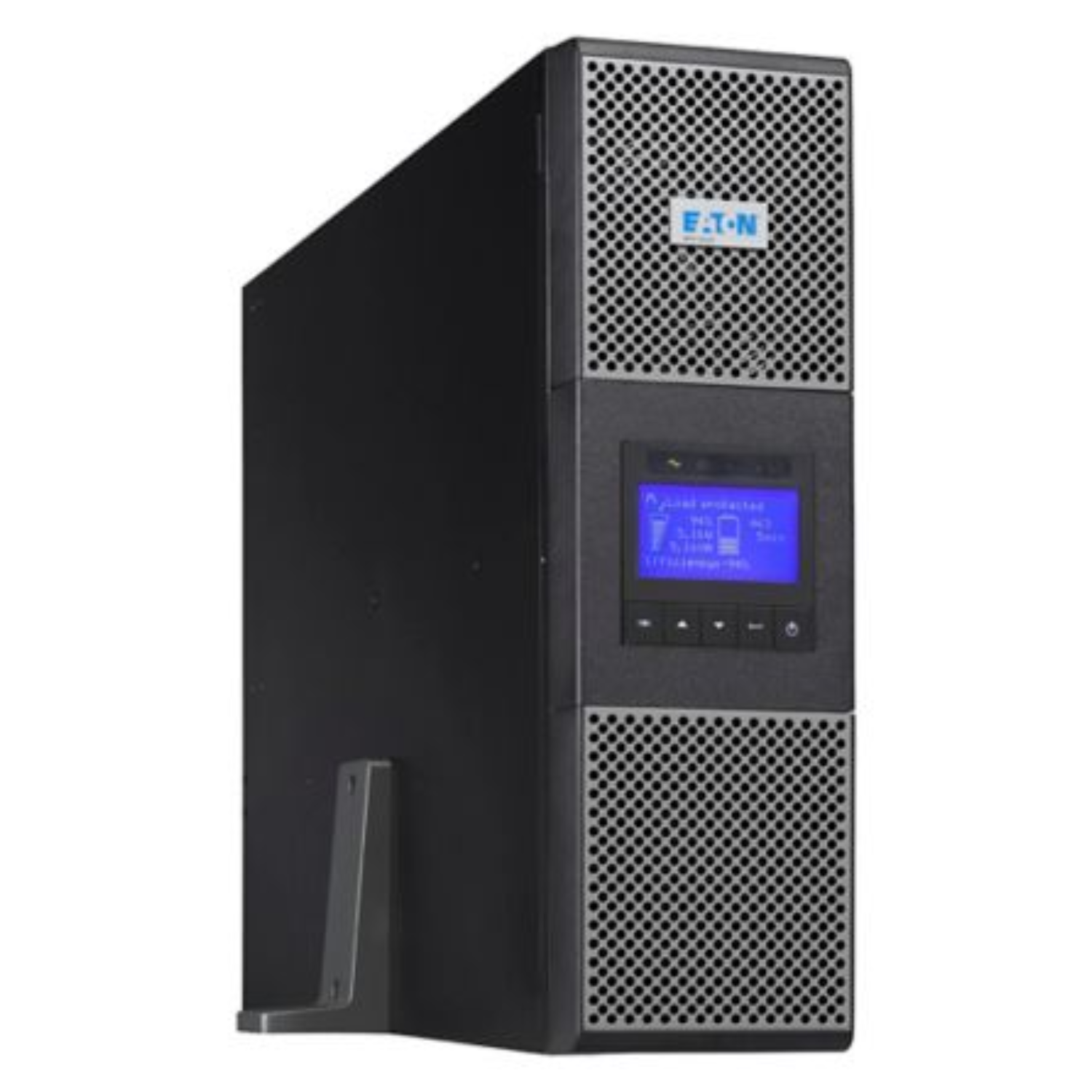

- 2 Supports for tower mounting
- 2 brackets for 19' mounting
- 2 Rack-mounting kit
- Cable locking system
- Safety instructions
- Quickstart guide
