About This Product.

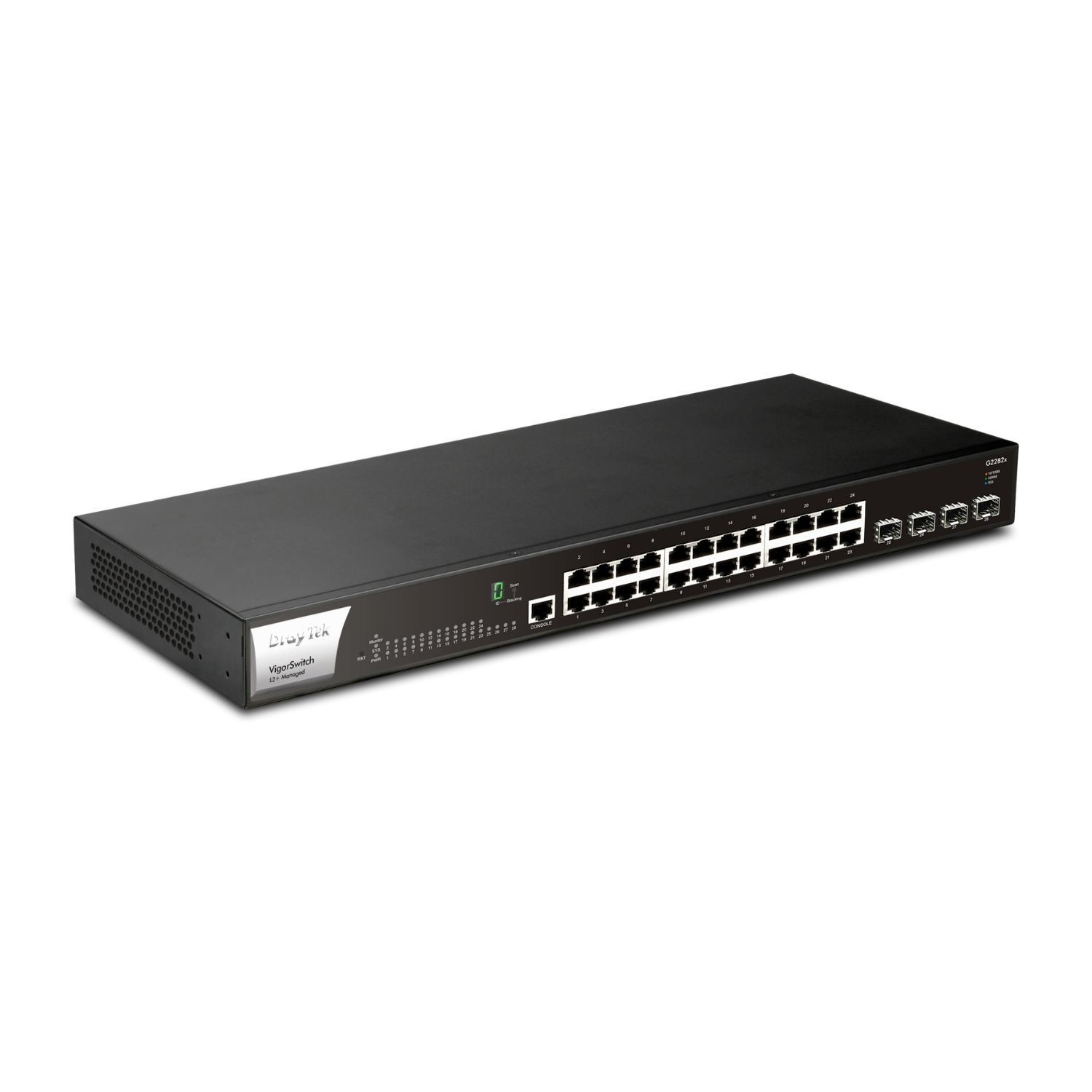

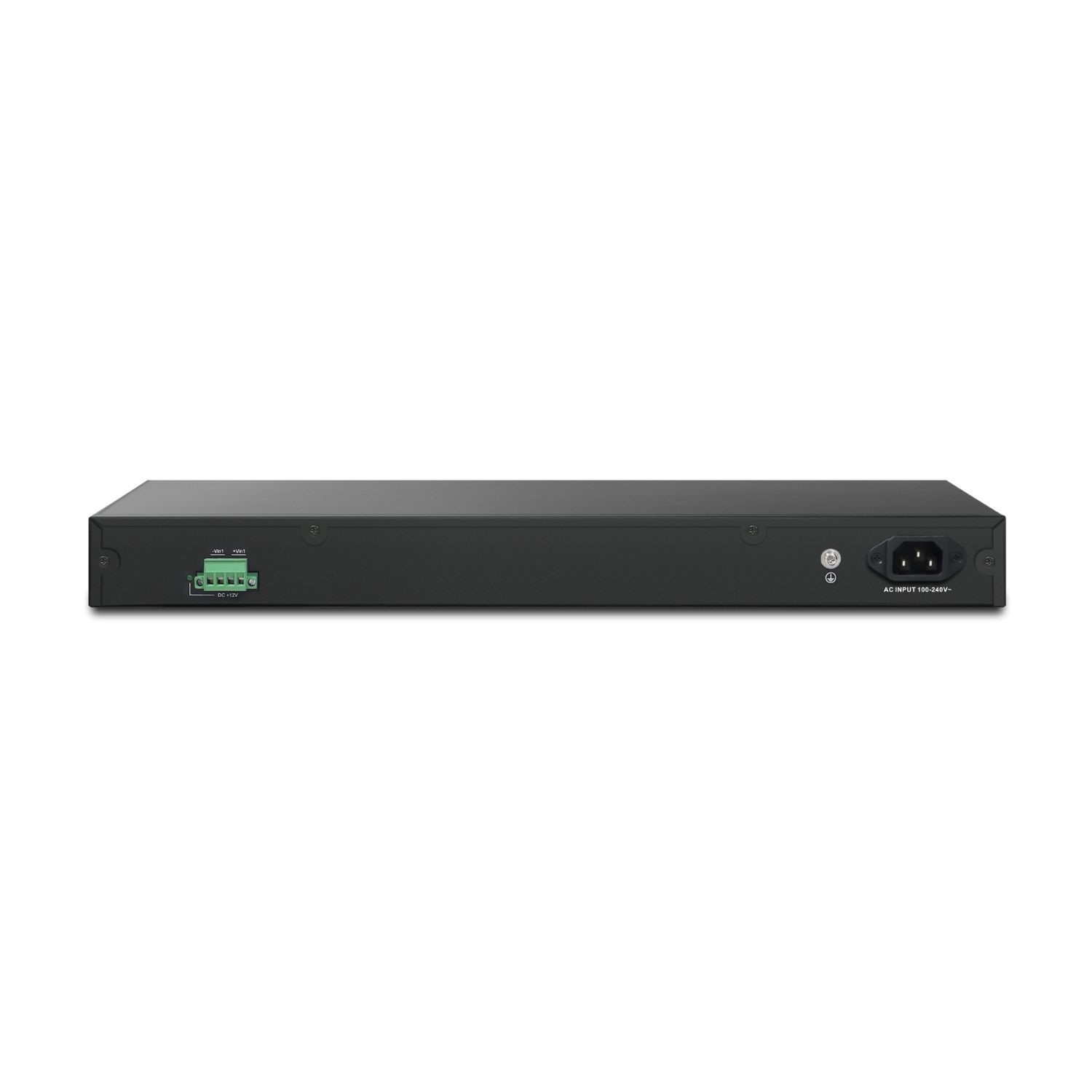

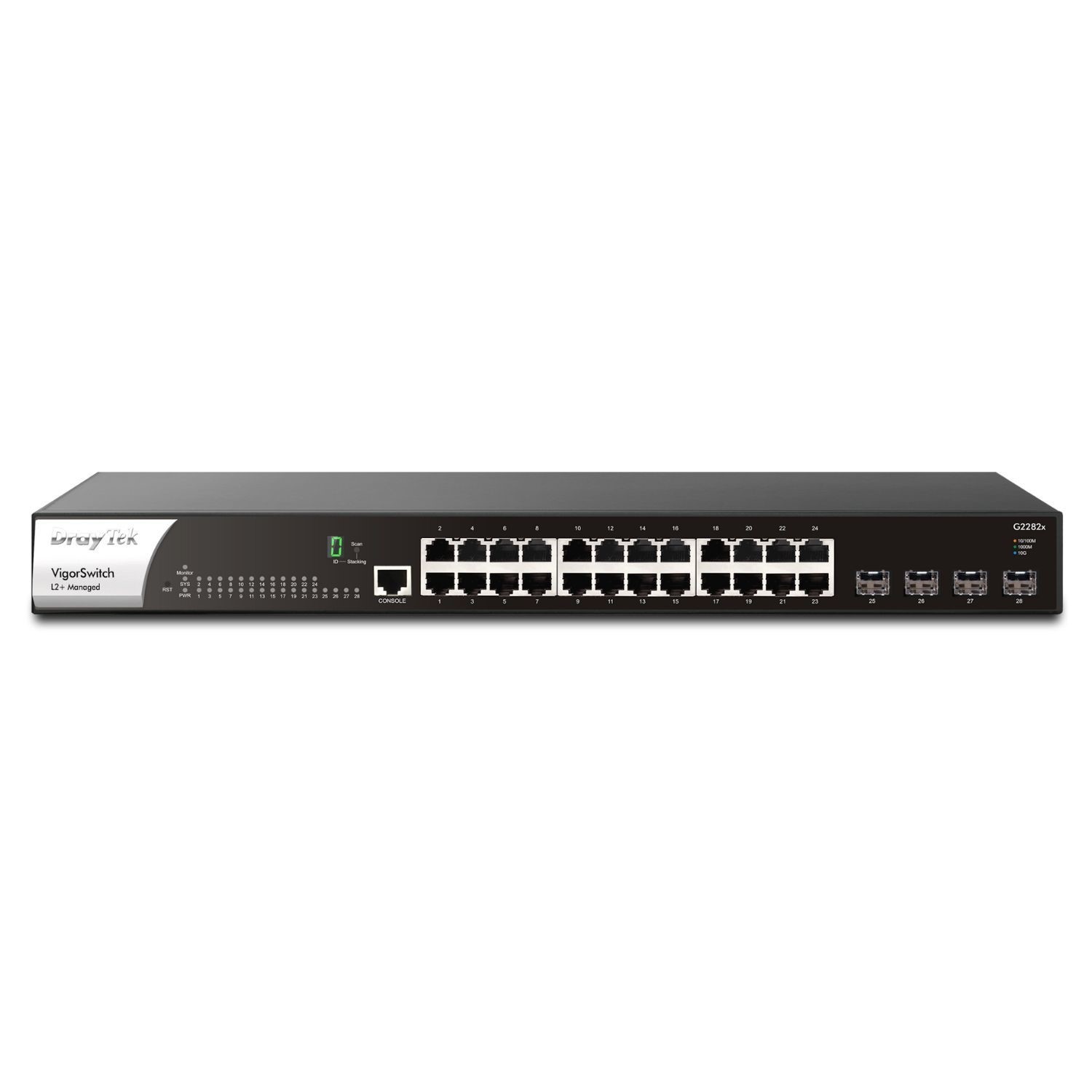

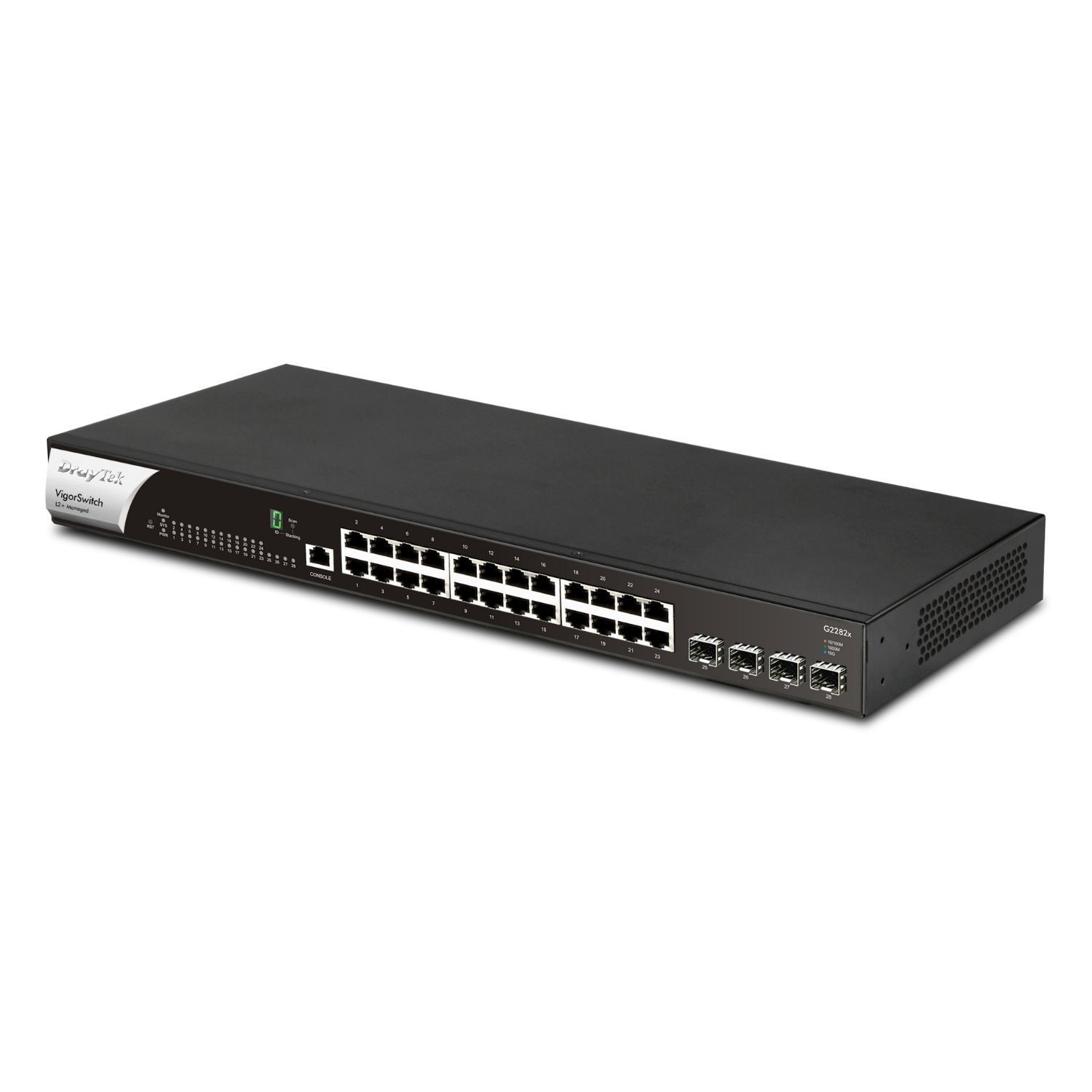

The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ¤45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port. Our cutting-edge networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements. The PoE VigorSwitch P2282x comes with 24 Power over Ethernet (PoE) ports, allowing you to easily power and connect multiple devices such as IP cameras, wireless access points, and VoIP phones. With a total power output of 400 watts, ensures stable and efficient power distribution, eliminating the need for additional power cables and adapters. The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.
High Speed 10 Gigabit SFP+ Uplinks
4 SFP+ ports allow your network to utilize 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Benefits: Easily increase network throughput and meet demanding bandwidth requirements.
Great Security Features
Protect your network against unauthorized access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information
Benefits: Secure and control access to your network.
400W PoE Power Budget
The VigorSwitch P2282x provides power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority and monitoring features ensure your PoE devices are powered and working.
Benefits: Power a large number of IP cameras, IP phones, wireless APs and other PoE devices.
Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routers and VLAN Routing, to connect separate networks through the VigorSwitch.
Benefits: Provides a fast and secure bridge between networks.
IP Conflict Prevention
Use DrayTek’s IP Conflict Prevention wizard to lock in the network setup, protecting against ARP spoofing and unknown DHCP servers.
Benefits: Improves network security. Quickly and easily determine the cause of network issues if they occur.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor router, or directly via the device’s Web interface.
Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Key Specification
• 24 x RJ-45 Gigabit Ethernet Ports
• 4 x SFP+ 10GbE Ports for Uplink / Fibre
• VigorSwitch P2282x only: PoE+ on all RJ-45 ports
• VigorSwitch P2282x only: 400-watt Power-over-Ethernet budget
• 802.1q VLANs (Tag, Port & MAC-based)
• VLAN Routing & Static Route with DHCP server / relay
• QoS for Application traffic prioritisation
• 802.1x RADIUS / TACACS+ Port Authentication with Accounting
• Voice VLAN for QoS (OUI Mode)
• Access Control List (ACL)
• Port Mirroring & Link Aggregation
• IGMP Snooping/Querier (Up to 256 Multicast Groups)
• IPv4 and IPv6 Support
• Hardware Monitoring
• Centrally managed or standalone operation
• Console Port
What's In The Box
VigorSwitch G2282x / P2282x Network Switch
UK IEC13 Power Cable
1U Rack Mount Fittings
Console Cable
Quick Start Guide
