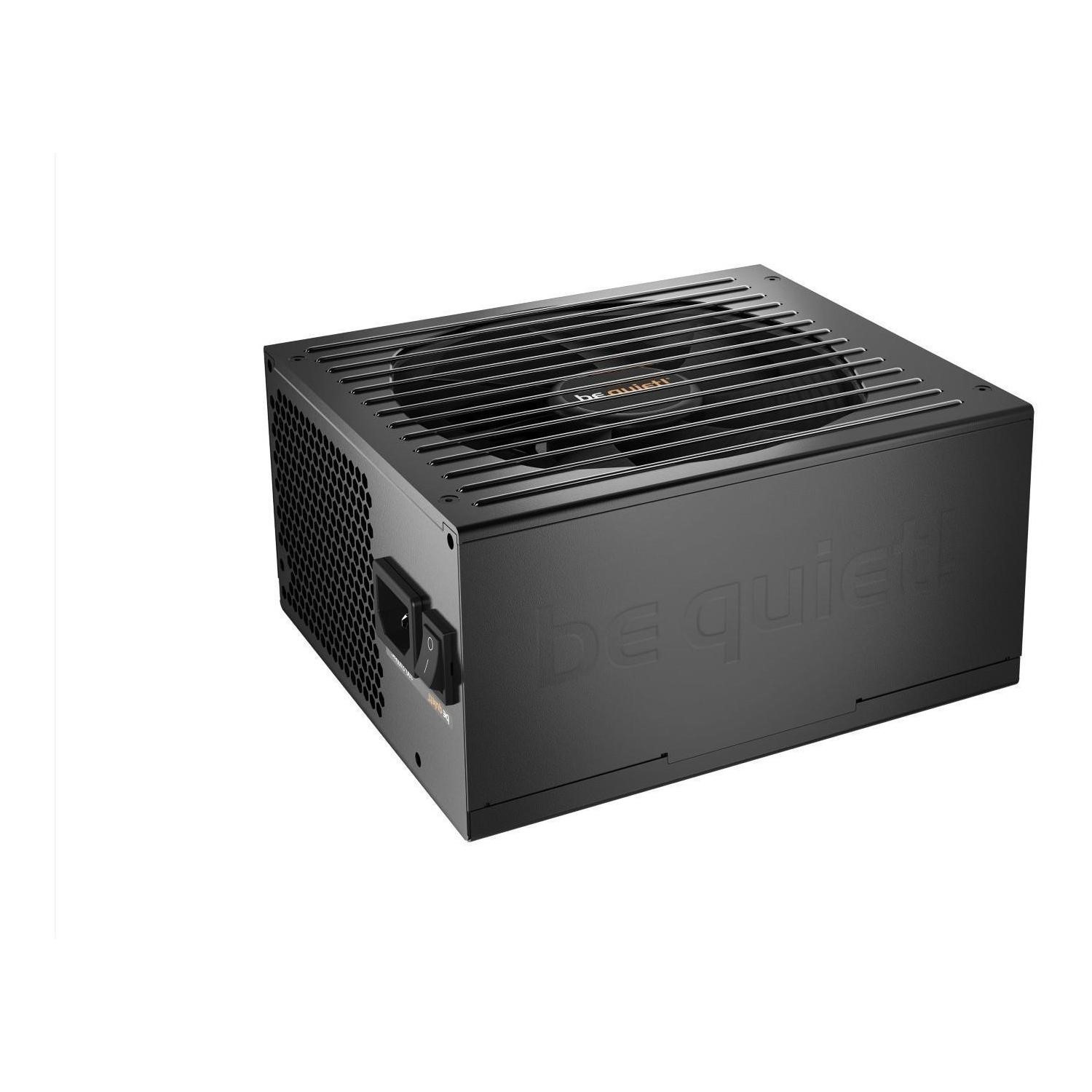

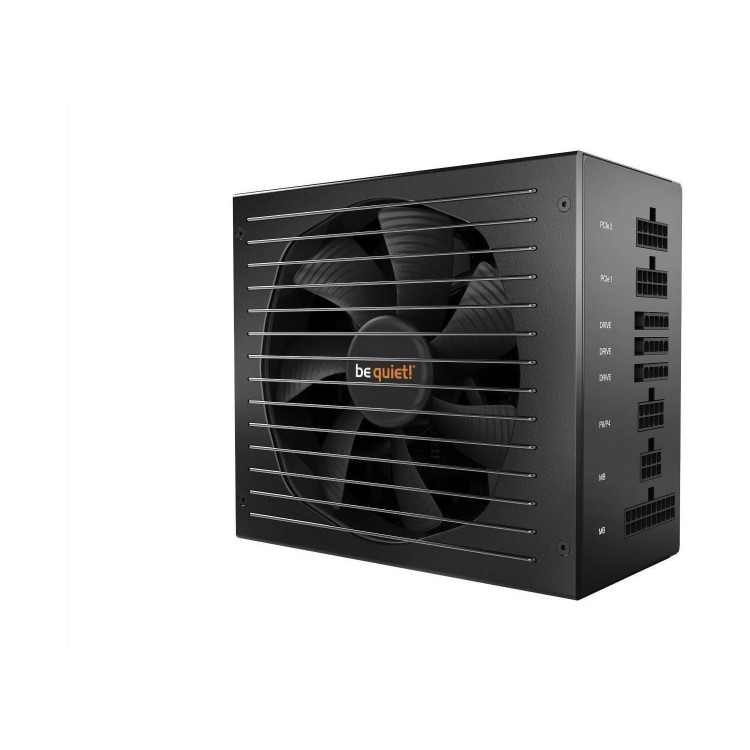

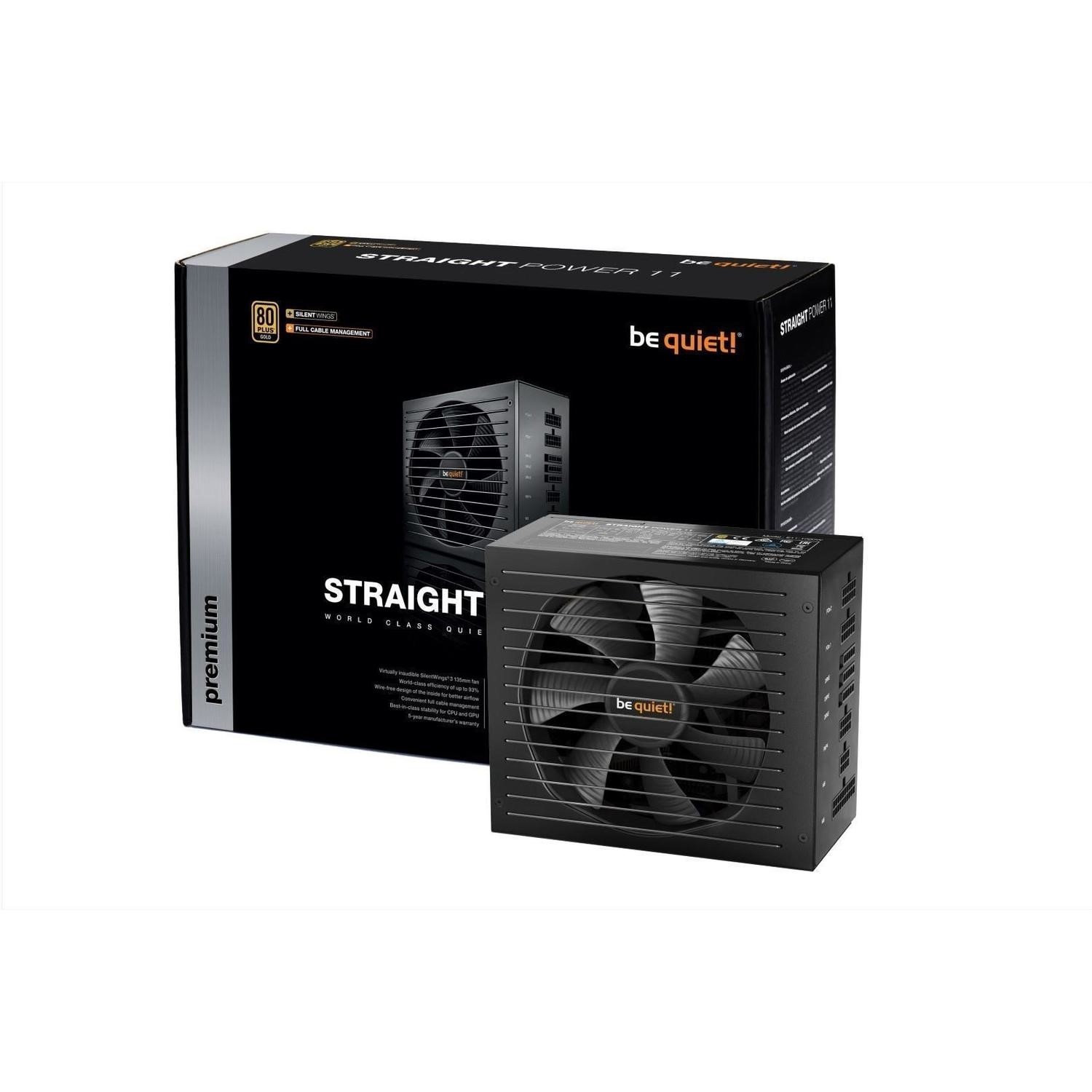

Be Quiet 550W Straight Power 11 Fully Modular 80+ Gold Power Supply

BE QUIET! STRAIGHT POWER 11 550W 80 PLUS GOLD FULLY MODULAR PSU POWER SUPPLY

BN281

WORLD CLASS QUIET AND EFFICIENCY

be quiet! Straight Power 11 550W raises the bar for systems that demand virtually inaudible operation without power quality compromises. This PSU is clearly the best choice for super silent systems.

• Virtually inaudible operation thanks to a Silent Wings 3 135mm fan
• Big funnel-shaped fan opening of the PSU case for high airflow intake
• Wire-free on the DC side inside the PSU for enhanced cooling and longevity
• Full cable management for maximum build flexibility
• 80PLUS® Gold certification with an efficiency of up to 93%
• Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
• Four high-performance 12V-rails
• Powerful multi-GPU support with two PCI-Express connectors
• Japanese 105°C-rated capacitors ensure stability and reliability
• Power signal stability unmatched in its class
• ErP and Energy Star 6.1 ready
• 5-year manufacturer’s warranty
• Product conception, design and quality control in Germany

SILENT WINGS 3 FAN

Provides virtually inaudible operation

The high-end SilentWings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

FUNNEL-SHAPED FAN OPENING

Higher cooling performance

The fan inlet of the Straight Power 11 550W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

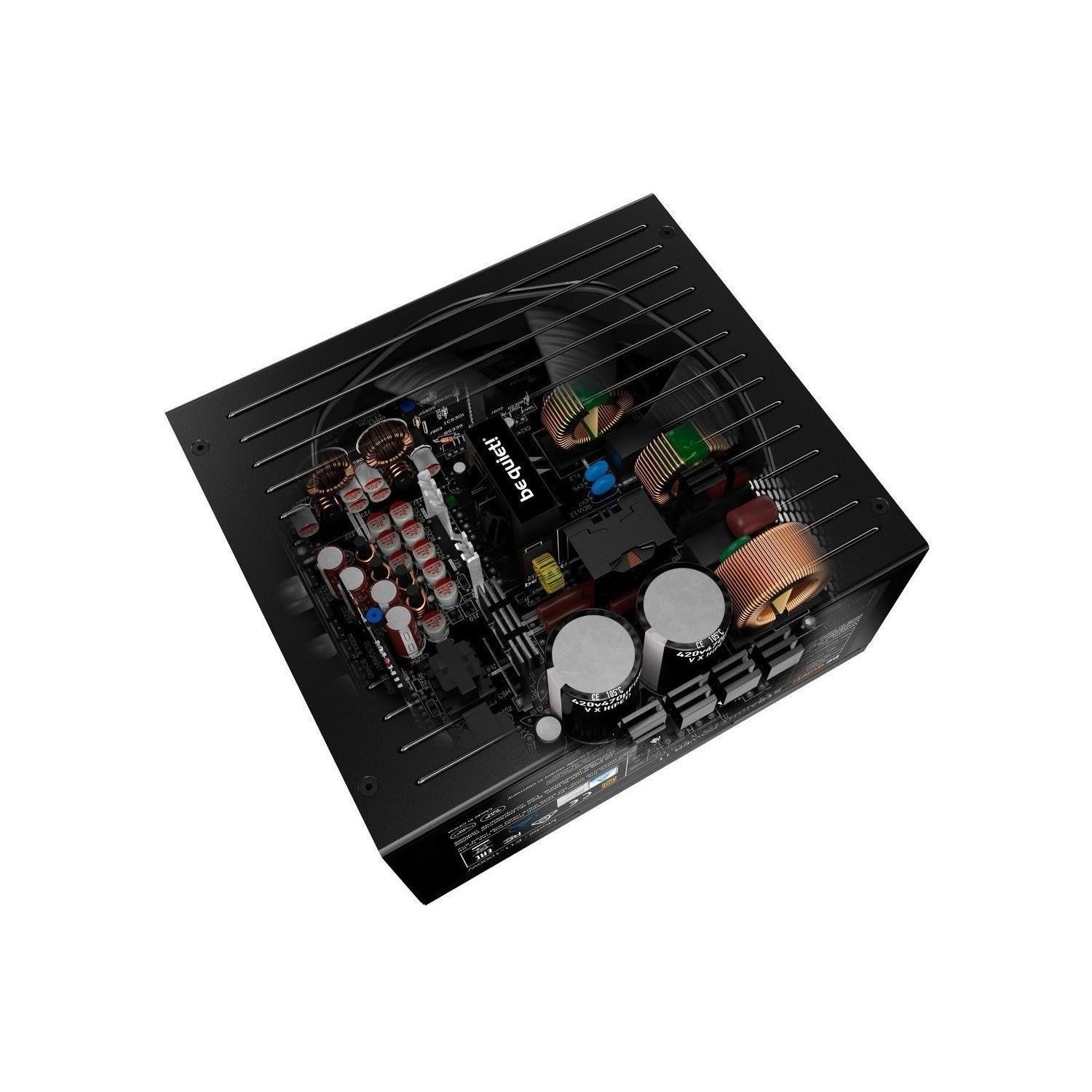

WIRE-FREE DESIGN INSIDE THE PSU

Pushing the longevity of components to a maximum

An absolute innovation: The Straight Power 11 550W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

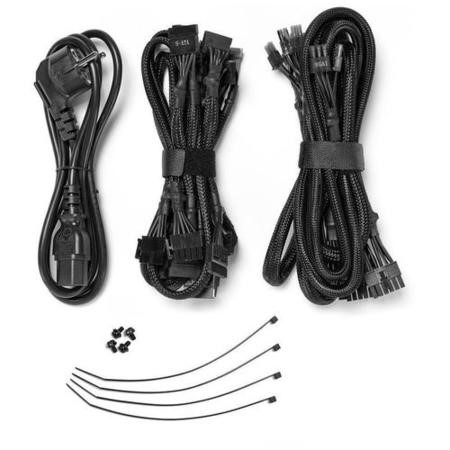

FULLY MODULAR CABLE MANAGEMENT

Utmost convenience and compatibility

Thanks to the fully modular cable management, cables that serve no purpose in the system are left out. For this reason systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

80PLUS GOLD CERTIFIED

Impressively high efficiency

Straight Power 11 550W is certified with 80PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.

HIGH-CLASS TECHNOLOGIES

Compatibility for the systems of tomorrow

The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation.The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.

JAPANESE 105° CAPACITORS

A testament to high quality

Only the best components are used in Straight Power 11 550W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.
