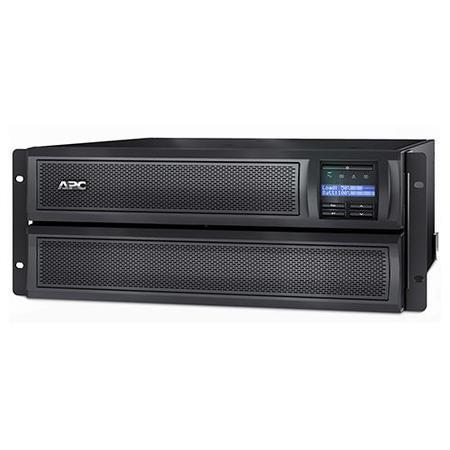

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V

SKU: SMX2200HV Quickfind Code: 900019

SAVE 7%

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V

Product Data Sheet

Was: £1667.71 You save: £112.74

Why buy me

Boost and Trim Automatic Voltage Regulation (AVR)
Intelligent battery management
Power conditioning
Temperature-compensated battery charging
Automatic restart of loads after UPS shutdown
Automatic self-test
Disconnected battery notification
Audible alarms

click

Valid promotions & discounts

click

Maximizes battery performance, life, and reliability through intelligent, precision charging. Protects connected loads from surges, spikes, lightning, and other power disturbances.

Key Product Info

Boost and Trim Automatic Voltage Regulation (AVR)
Intelligent battery management
Power conditioning
Temperature-compensated battery charging
Automatic restart of loads after UPS shutdown
Automatic self-test
Disconnected battery notification
Audible alarms
LED status indicators
Adjustable voltage sensitivity

Product Features

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

What's in the box?

CD with software
Documentation CD
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
User manual

View more View less

Download user Manual

Battery
Battery recharge time	3 h
Battery Technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	10 min
Typical backup time at half load	25 min
Design
Colour of product	Black,Stainless steel
Form Factor	Rackmount
Rack mounting	4u
Ports & interfaces
AC outlet types	C13 coupler,C19 coupler
AC outlets quantity	10
Cable length	1.83 m
Number of output IEC jumpers	2
Power plug	C20 coupler
USB 2.0 ports quantity	1
Power
Efficiency	98 %
Emergency Power Off (EPO)
Input operation voltage (max)	280 V
Input operation voltage (min)	140 V
Output operation voltage (max)	230 V
Output operation voltage (min)	208 V
Output power	1980 W
Output power capacity	2200 VA
Output voltage THD	5 %
Power supply input frequency	50/60 Hz
Surge energy rating	645 J
Certificates
Certification	C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC, GOST, IEC 60950, IRAM, UL 1778, VDE
Operational conditions
Non-operating altitude	0 - 10000 m
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95 %
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-15 - 45 °C
Other features
Package dimensions (WxDxH)	586 x 330 x 633 mm
Weight & dimensions
Depth	483 mm
Height	432 mm
Package weight	47730 g
Weight	38640 g
Width	178 mm
