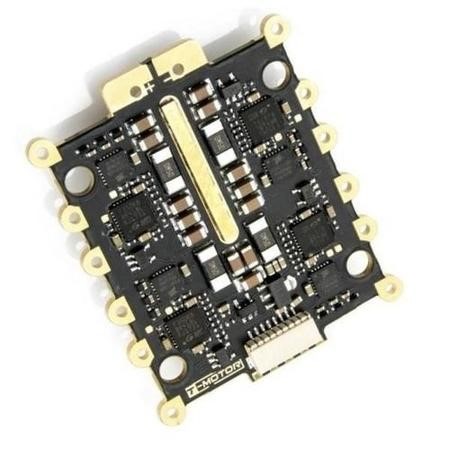

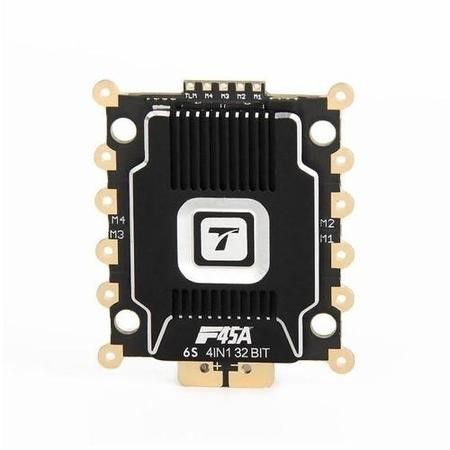

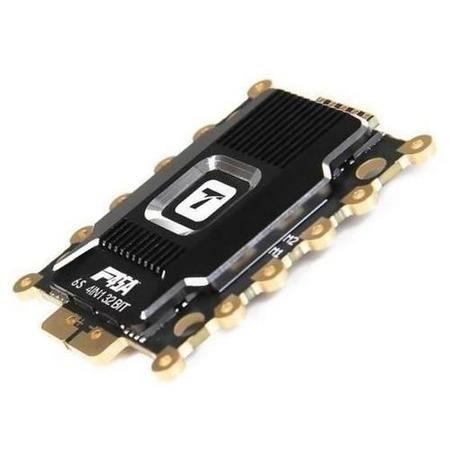

T-Motor F45A 4in1 ESC 32bit 2-6S

Overview

The T-Motor F45A 4in1 ESC is a high performance 4in1 ESC designed for FPV Racing. The F45A 4in1 uses superior PCB materials provides high reliability. The CNC cut heatsink provides optimal cooling and prolongs the operation of the 4in1 ESC during high power.

T-Motor include 4x Racewire PCBs which are mounted on the arms of your quad to help protect against prop strikes which can damage the motor wires.

Features:

• 32bit Microprocessor running at 48MHz
• BLHeli_32 firmware supporting damped light mode/regenerative braking
• Supports Oneshot125, Oneshot42, DSHOT and Multishot.
• Supports oneshot / Multishot / Dshot PWM
• Mounting holes 30.5x30.5mm
• External capacitor needed (included)
• 49x40x6.9mm
• 30.5mm Mounting Holes
• 45A continuous current / 54 Amp burst

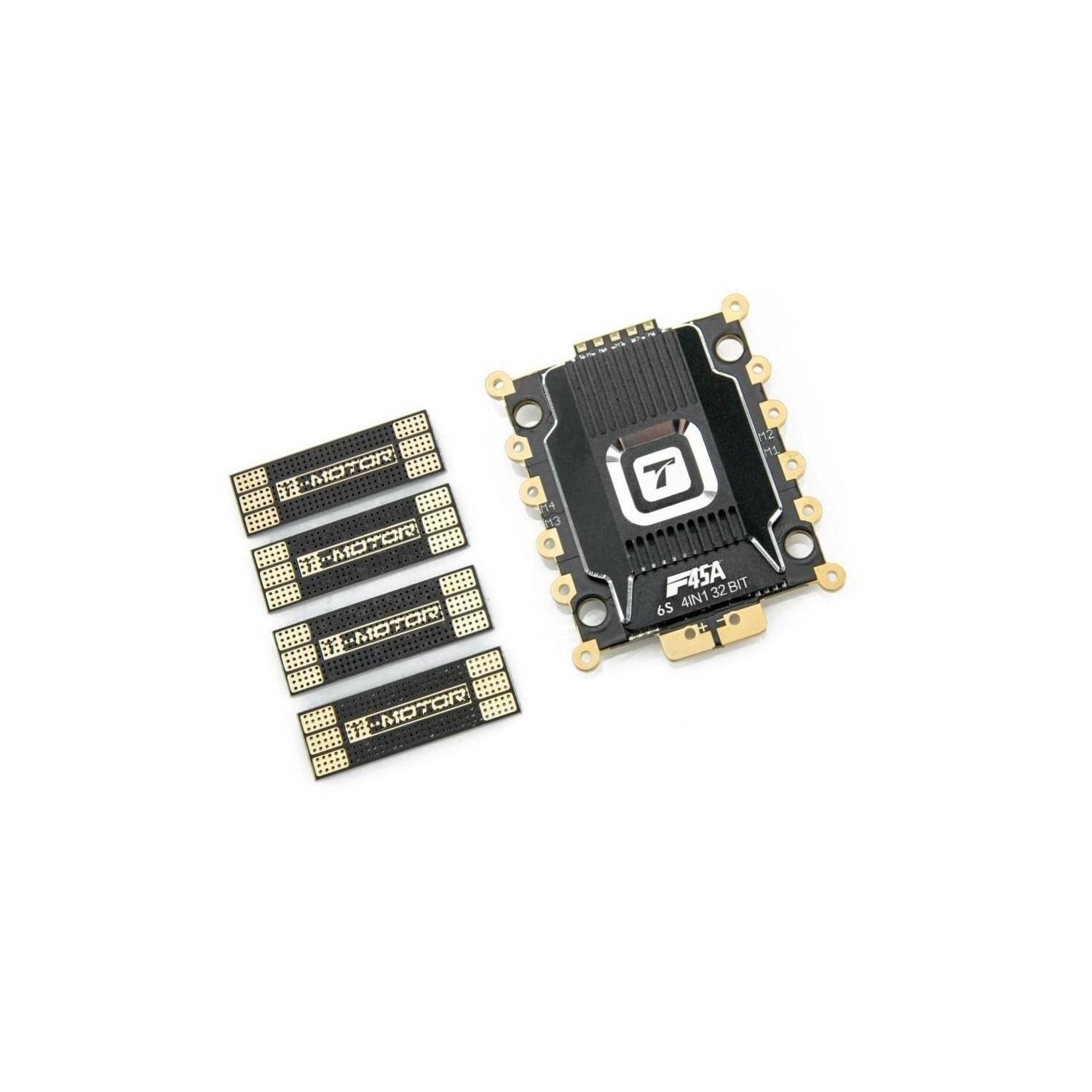

Includes:

• T-Motor F45A 4in1 ESC (3-6S)
• Capacitors
• Rubber Mounting Grommets
• Race Wires
