Deploy DJI Dock 2 and DJI M3TD drone for remote and automated missions, including public safety, security, and inspection operations.
On-demand Data Collection
Conduct automated and remote drone operations with the DJI M3D, featuring a 4/3 wide camera with mechanical shutter, and a 56x hybrid zoom tele camera.
Survey Support
Leverage the support of our in-house surveying team to help you maximise your mapping missions.
DJI Dock 2 Partner
heliguy™ offers site planning/installation support, official Dock technicians, SLAs, and OSC consultancy for BVLOS operations.

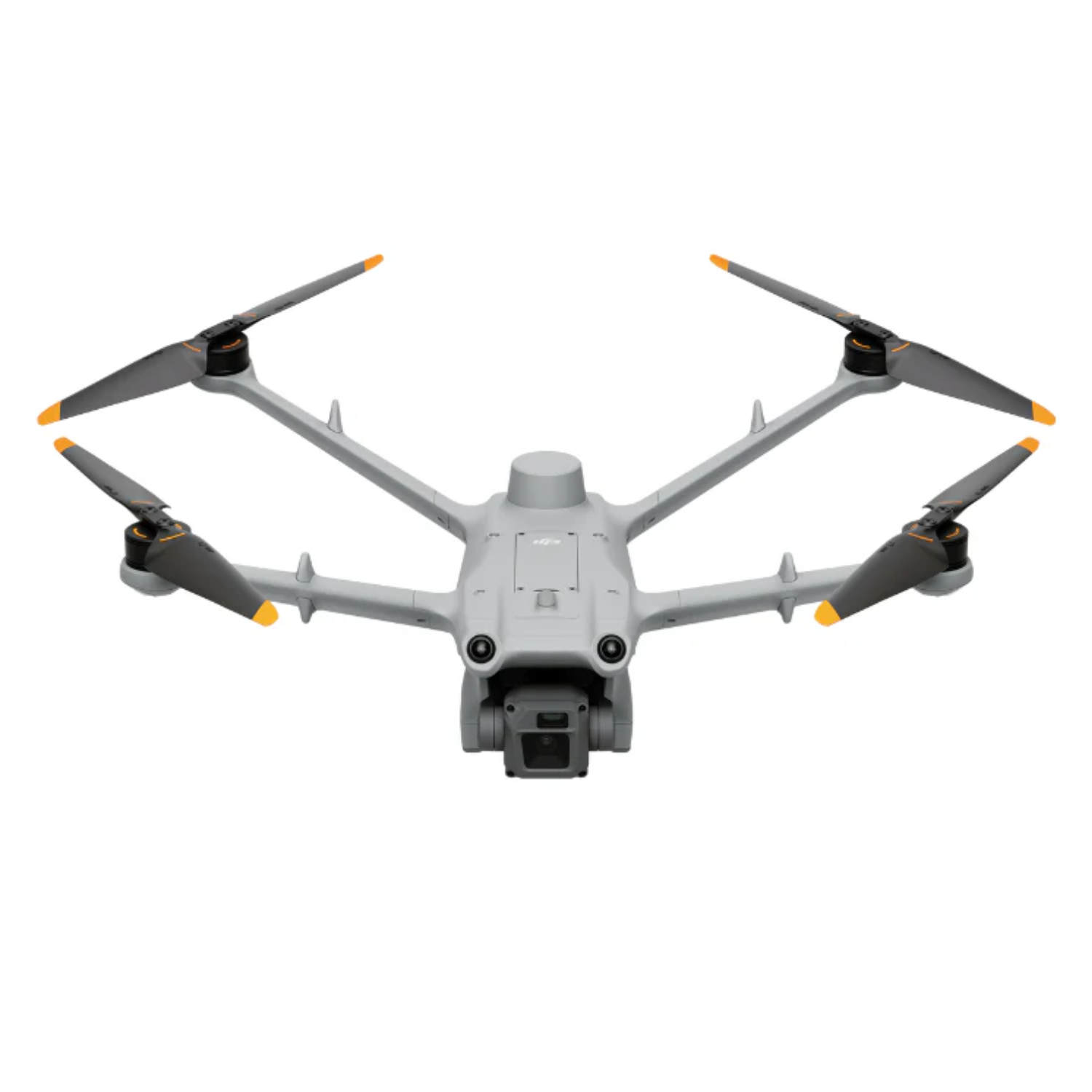

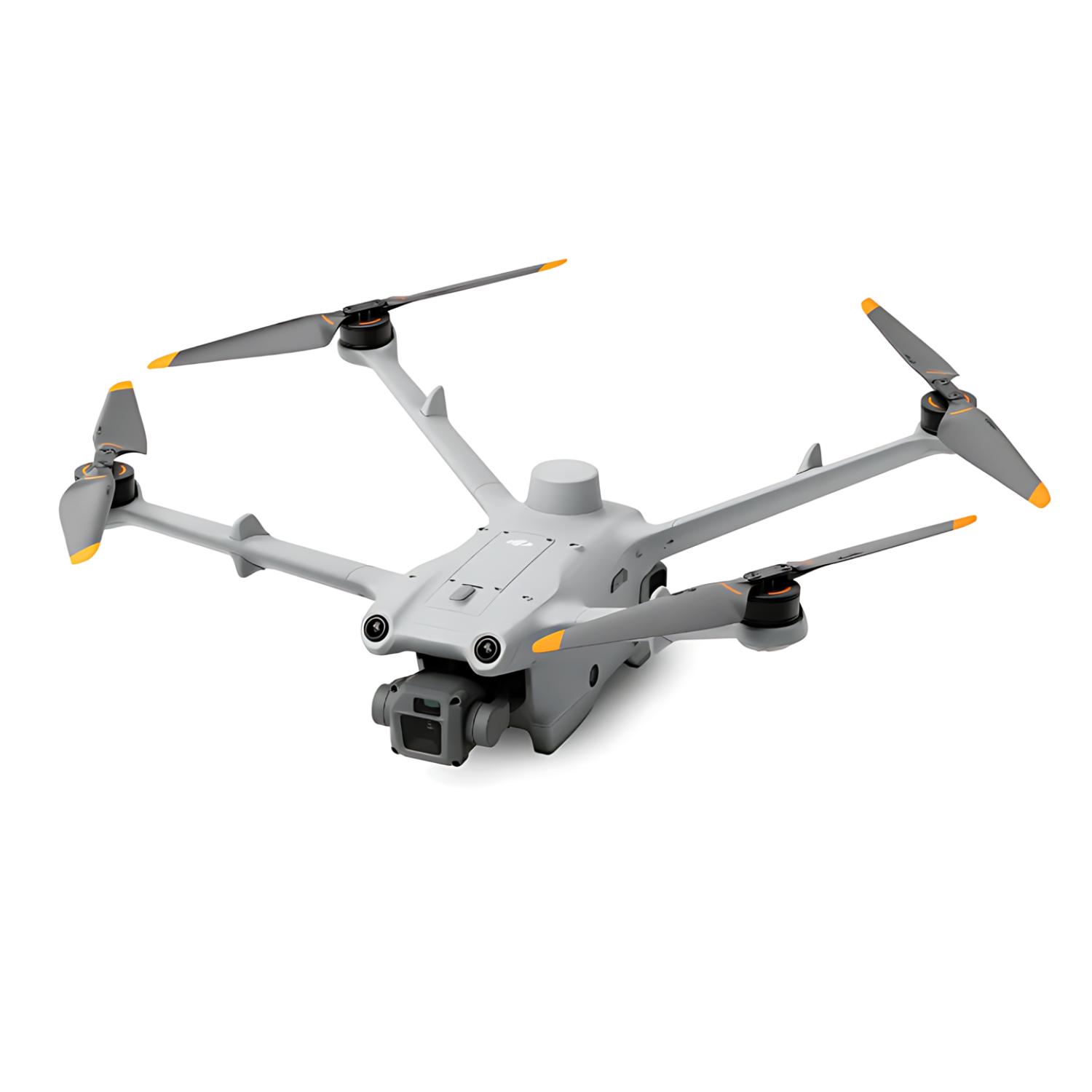

DJI M3TD
Drone In A Box For Public Safety And Inspection
The DJI Dock 2 with the DJI M3TD provides a public safety and inspection solution, with operations controlled remotely from the cloud. The DJI M3TD has a triple camera array, providing versatile data collection.
Key Features
- Wide-Angle Camera: 1/1.32" CMOS, 48MP.
- Tele Camera: 1/2-inch CMOS, 12MP, 56x hybrid zoom.
- Thermal Sensor: Normal Mode - 640 x 512 @ 30fps; UHR Infrared Image Mode: 1280 × 1024@ 30fps; 28x Digital Zoom
- High Accuracy: Integrated RTK Module. ±3cm positioning accuracy.
- IP54: Dustproof and waterproof.
- Large Operating Radius: 50 minutes maximum flight time and 10km maximum effective operating radius. The drone supports up to 400 battery cycles.
- Flight Safety: 6-directional obstacle sensing system.

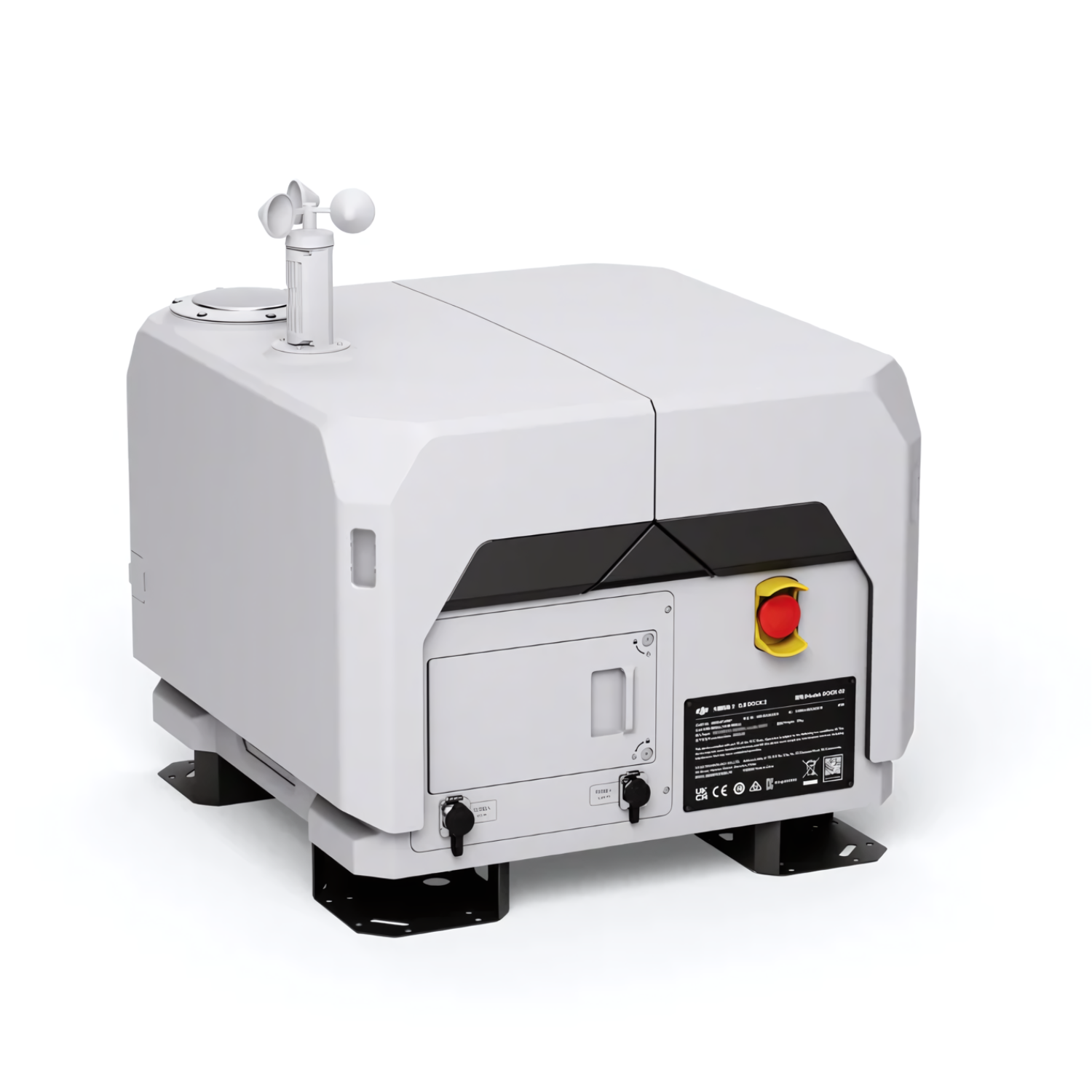

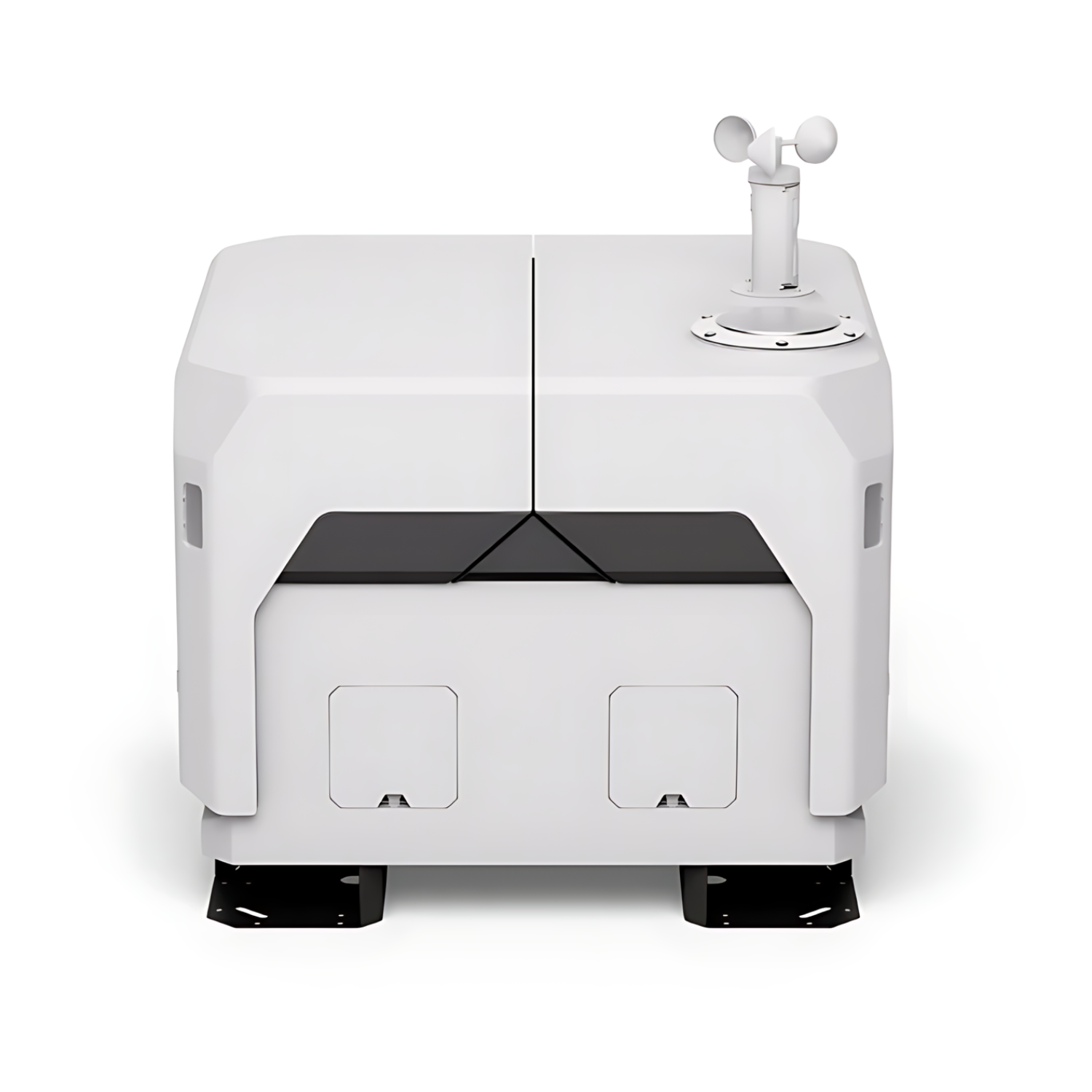

DJI Dock 2
Easy Deployment In All Weathers
Lightweight
DJI Dock 2 weighs 35kg and can transported by two people, enabling flexible installation and reducing installation costs.
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and determine whether there is strong GNSS signals in the area. This helps to accelerate site selection.
IP55 Rating
The Dock 2's IP55 dust and water resistance rating ensures it operates for extended periods of time, even in harsh climates and environments.
Environmental Monitoring
Integrated sensors, including rainfall, wind speed, and temperature gauges, perceive real-time weather changes. Using DJI FlightHub 2, you can receive timely warnings or terminate flight tasks.
Improved Landing Stability

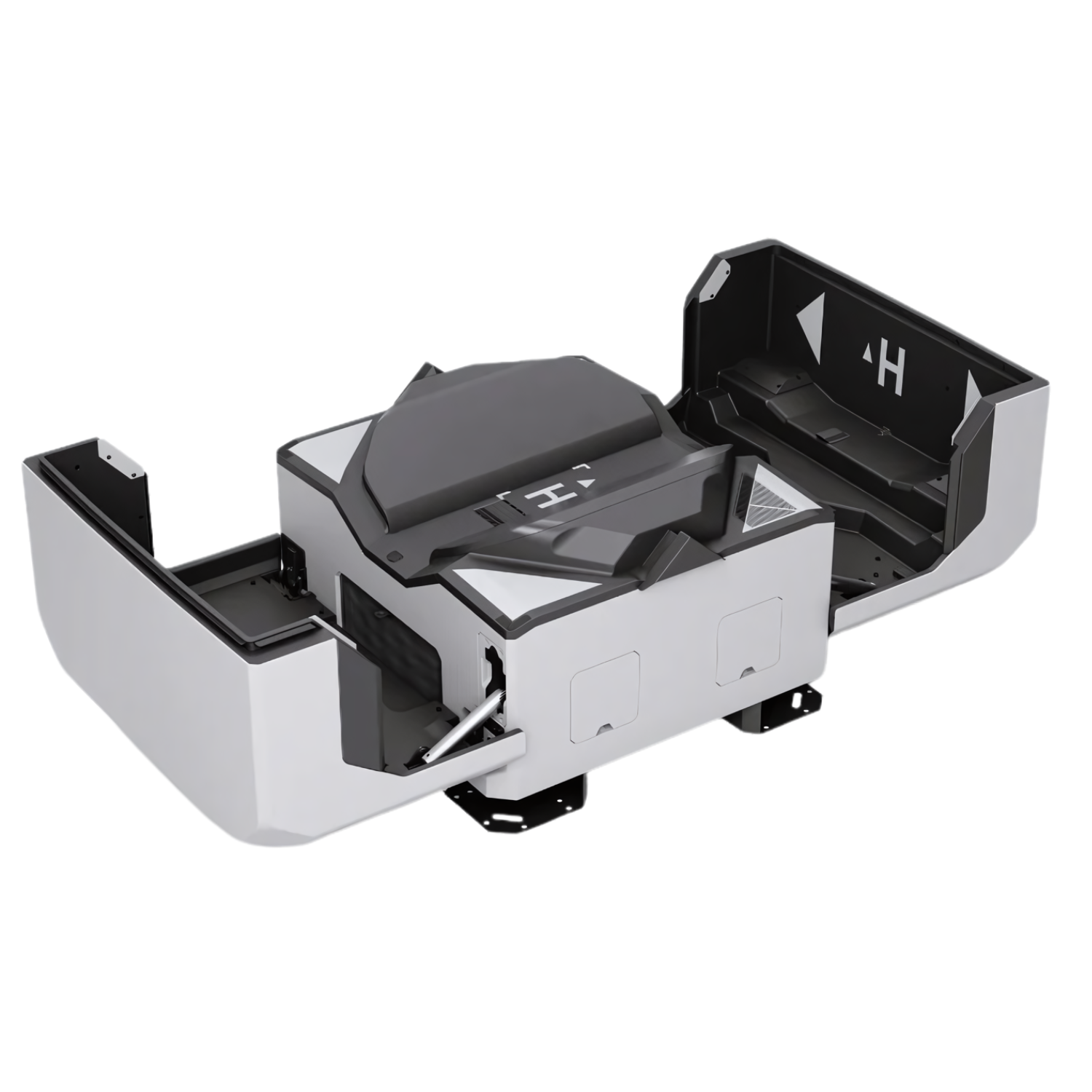

Using next-gen image recognition technology, the aircraft identifies positioning markers on the Dock's landing pad. The Dock's new slide-ramp centring design further supports precise landing.
Built-in Backup Battery
The built-in battery enables the Dock 2 to operate independently for more than five hours, with sufficient time for the drone to return and land.
Six-Month Maintenance Interval
DJI Dock 2 only requires maintenance approximately every six months.
Abnormal Condition Notification
Receive email notifications from DJI FlightHub 2 if the DJI Dock 2 and the aircraft encounter task failures or emergencies.
DJI Dock 2
Round-The-Clock Operations
Quick Take-off
DJI Dock 2 features dual RTK antennas, allowing the aircraft to obtain accurate RTH location information without needing an RTK fix. A propeller inspection can be completed in 45 seconds.
Rapid Charging
After the aircraft lands at the base, Dock 2 can charge the drone from 20% to 90% in 32 minutes. This is perfect for continuous operations and ensuring the drone is ready for missions on demand.
Dual-Camera Monitoring
DJI Dock 2 features an internal and external fisheye camera for real-time displays. Allowing you to remotely observe weather conditions, environmental circumstances, and the aircraft's take-off and landing.
DJI FlightHub 2
Cloud-Based Operation
Cloud Mapping
After the drone's mission, DJI FlightHub 2 generates a high-precision 3D model based on the flight data. Models can be annotated, measured, and downloaded.
Flight Route Editor
Use 3D models for visual flight route editing and preview simulated imaging results.
AI Spot-check
Frame a specific area in the 3D model, and the drone will compare the area to be captured with the framed area in subsequent automated operations. This ensures repeatable data across multiple flights.
FlyTo Tasks
Use 3D models to automatically plan optimal flight routes. Click on the subject, and the aircraft will fly to the destination.
Live Flight Controls
Control the drone and gimbal remotely from a remote location with FlightHub 2 or third-party software.
Model Comparison
Compare side-by-side models to track project progress over time.
Obstacle Bypass
During automatic flights, the drone uses its omnidirectional sensing and automatic bypass functions to enhance flight tasks.
DJI Dock 2
Open Ecosystem
Private Deployment With Cloud API
Tailor a customised management system for DJI Dock 2 with Cloud API or quickly connect it to a third-party cloud platform, such as FlytBase or Drone Harmony, to facilitate efficient and convenient private deployment.
Third-party Payloads
Connect third-party payloads to the drone and control them via cloud-based software. The drone can also integrate with a parachute (available separately).
Edge Computing
DJI Dock 2 has an edge computing expansion interface that enables the pre-processing of media files and more to improve operational efficiency further.
Cloud-to-Cloud Coordination
DJI FlightHub 2's FlightHub Sync function allows users to easily link the device to a third-party cloud platform for flexible operation data management.
DJI TerraAPI
Integrate the powerful mapping capabilities of DJI Terra into your dock management systems. This enables automated 2D/3D reconstruction and customised photo mapping workflows.
DJI Dock 2
DJI Dock 2 Vs DJI Dock
DJI Dock 2 has some key upgrades compared to the original DJI Dock.
Smaller Footprint
Dock 2 weighs 34kg compared to DJI Dock's 105kg. This makes Dock 2 easier to transport and better suited for roof deployments.
Longer Flight Time/Greater Range
The M3D/M3TD can fly for 50 minutes and has an operation radius of 10km, while the M30 Series for DJI Dock fly for 40 minutes and a 7km operating radius. This is a 25% improvement in flight time and a 43% improvement in the operating radius
More Capability
With the DJI M3D, DJI Dock 2 provides an advanced high-precision mapping solution. DJI Dock is mainly deployed for security patrol and inspection.
Smarter Functions
DJI M3D drones automatically bypass obstacles during flight. M30 drones for DJI Dock can only hover or return to start when obstacles are encountered.
More Reliable
DJI Dock 2 features a slide-ramp centring design and wireless charging. Dock 1 has push-rod centering and contact charging. DJI Dock 2 is easier to maintain.
Faster Takeoff
DJI Dock 2 can take off without waiting for an RTK fix, while DJI Dock 1 must wait for RTK to be fixed.
Precise Landing
DJI Dock 2 has next-gen image recognition technology for a more precise landing. DJI Dock mainly relies on RTK for landing.
What's in the box?
- DJI Dock 2 (including Earth Wire) x 1
- Wind Speed Gauge Module x 1
- Expansion Bolt x 4
- Ethernet Cable Connector x 1
- Power Cable Connector x 1
- Wire Ferrule x 6
- Screws and tools
- DJI M3TD drone (with microSD card) x 1
- CW Propellers (Pair) x 1
- CCW Propellers (Pair) x 1
- Screws and washers
