D-Link 8-port 10/100/1000 Gigabit Metal Housing Desktop Switch

SKU: DGS-108/B Quickfind Code: 666050
SAVE 79%
You save: £88.79
£23.97

Why buy me

D-Link 8-port 10/100/1000 Gigabit Metal Housing Desktop Switch

The DGS-108 8-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.

Effortless Gigabit Networking

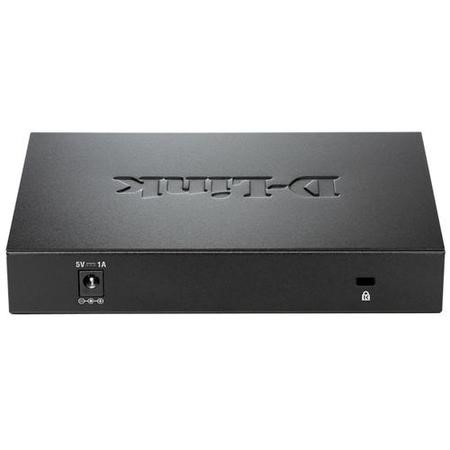

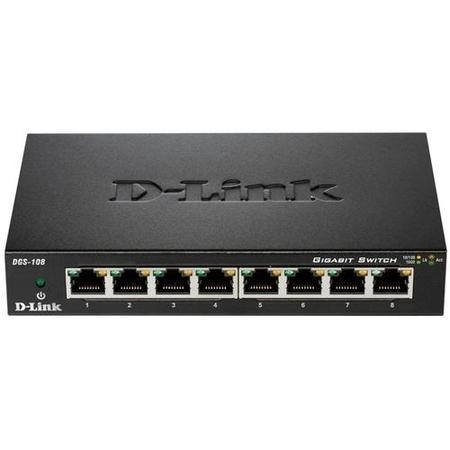

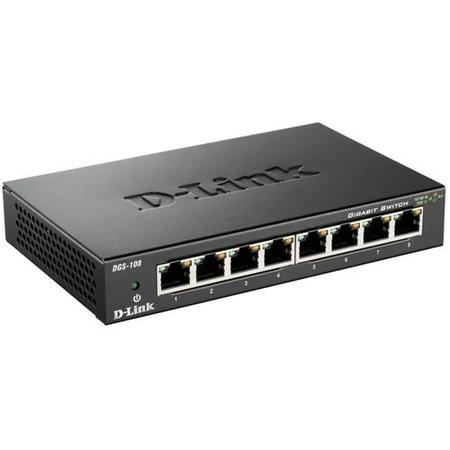

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-108 is ideal for transferring files quickly and online gaming. The DGS-108 features front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status. The switch features QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch features a Kensington Security Slot on the rear panel where users can fasten the unit to a table or desk.

Think Green

The DGS-108 is a plug-and-play networking switch that features D-Link's Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which can detect when a connected computer is shut down or when there is no Ethernet traffic, and will proceed to power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and use only as much power as is required. Both of these features work together to help you save power automatically.

Environmentally Friendly

The switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. The switch is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter in a recyclable packaging making this product truly environmental friendly.

IEEE 802.1p QoS

QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media, VoIP calls, and online gaming.

Cable Diagnostics Function

The D-Link Cable Diagnostics Function enables users to be instantly aware of cable conditions through the LED display on the front-panel. Users can determine whether the pin connections of their cable connectors are correct, facilitating prompt network troubleshooting if required.



Data transmission

Jumbo Frames support
MAC address table 8000 entries
Maximum data transfer rate 1 Gbit/s
Store-and-forward
Supported data transfer rates 10/100/1000 Mbps
Switching capacity 16 Gbit/s

Design

Certification FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Colour of product Black
Housing material Metal
LED indicators Link,Power
Rack mounting

Management features

Quality of Service (QoS) support
Switch layer L2
Switch type Unmanaged

Networking

10G support
Auto MDI/MDI-X
Flow control support
Full duplex
Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x

Performance

Mean time between failures (MTBF) 2053751 h
Packet buffer memory 0.128 MB
Stackable

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8
Copper ethernet cabling technology 1000BASE-T,100BASE-TX,10BASE-T
DC-in jack

Power

Input current 1 A
Input voltage 5 V
Power consumption (typical) 2.8 W

Power Over Ethernet (PoE)

Power over Ethernet (PoE) Support -

Security

MAC address filtering

Operational conditions

Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -10 - 70 °C

Other features

Connectivity Technology Wired
Data transfer rate 2000 Mbit/s
Dimensions (WxDxH) 162 x 102 x 28 mm

Weight & dimensions

Weight 440 g
