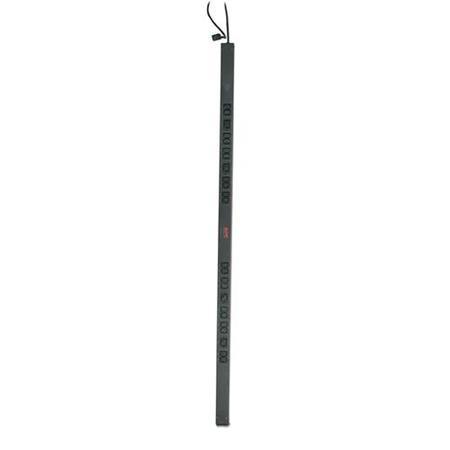

0871 244 0934APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. Basic Rack PDUs are InfraStruXure Certified and mount vertically, without tools in the rear channel of a NetShelter VX.
Energy management
|
|
| Input frequency | 50 - 60 Hz |
| Nominal output voltage | 230 V |
Environmental conditions
|
|
| Operating relative humidity range | 5-95 % |
| Operating temperature range (T-T) | 0 - 45 °C |
| Storage relative humidity range | 5-95 % |
| Storage temperature range (T-T) | -25-65 °C |
Technical details
|
|
| Cable length | 3.05 m |
| Certification | CCC,CE,GOST,IRAM,VDE |
| Colour of product | Black |
| I/O ports |
(4) IEC 320 C19 (20) IEC 320 C13 |
| Input connection type | IEC-320 C20 |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Nominal input voltage | 230 V |
Weight & dimensions
|
|
| Dimensions W x D x H | 55.9 x 43.9 x 1619.3 mm |
| Package dimensions (W x D x H) | 152 x 127 x 2134 mm |
| Package weight | 5770 g |
| Weight | 4860 g |
