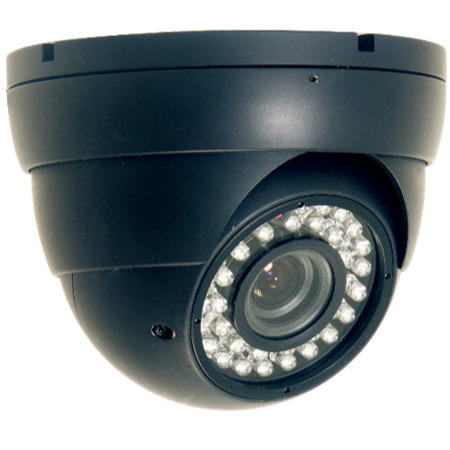

Designed for areas that are prone to attack, the UTC-DSIRHRV is enclosed in a vandal resistant and weatherproof housing. The robust design of the UTC-DSIRHRV makes it a highly visible camera that can act as a deterrent in hostile environments.
This high-resolution ball dome comes complete with 36 in-built IR LEDs and CDS sensor. Amongst a wide array of functions, the UTC-DSIRHRV features an external zoom/focal adjustment for ease of setup.
- Type Color/Monochrome
- Signal System NTSC/PAL
- Pick Up Device 1/3" Sony Color High Resolution CCD
- Picture Elements NTSC: 811H 508V PAL: 795H 596V
- Resolution 520 TV Line
- Min Illumination 0Lux (36 Pieces IR LED ON)
- Vertical Frequency NTSC:60Hz PAL:50Hz
- Horizontal Frequency NTSC:15.734KHz PAL:15.625KHz
- Clock Frequency NTSC:28.636MHz PAL:28.375MHz
- Scanning System 2:1 Interlace
- S/N Ratio >50d
- Electronic Shutter NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
- Lens 3.5-8mm Fixed Iris Lens
- White Balance AUTO Tracking
- Back Light Compensation ON
- Auto Gain Control ON
- GAMMA 0.45
- Video Out-put 1V p-p, 75Ohm
- Power Supply DC12V ±10%
- Current Consumption 340mA(MAX)
- IR Effect Distance 25m (Outdoor)
- Dimension 120)dia)x100m
- Weight 950g
- Storage Temperature -30º+60°
- Operating Temperature -30º+40°
