TBS Unify Pro 5G8 HV Race MMCX TBSUP5G8HVRMMCX

Quickfind code: 1303494
sale banner
Join Which? today and get £15 OFF orders over £200!

Which? Logo We are working with Which? to offer you a great deal. Try Which? for £1 and in return you’ll get £10 off orders over £250 when you shop on Laptops Direct. It's quick, easy, and most importantly, you'll save money.

Benefits Member Access
Unlimited access to all member content on which.co.uk, including our Best Buys and Don't Buys which offer
Detailed reviews of our latest products from our Test Labs
Weekly newsletter to keep you up to date with all the latest from Which?
Monthly Which? magazine delivered to your door
Access to consumer legal advice via Which? Legal which offer

Please note: Once your trial comes to an end, your membership will continue at £10.75 a month. Remember you can cancel at any time during the trial or when you’re a member. The email can take up to an hour to arrive, please also check your junk folder. If you don't receive an email from Which? please call their Member Services team on 01992 822800.

Want to take advantage of this offer?

Visit Which? and for £1 you will get a 1 month's trial subscription as well as your £10 off orders over £250 for Laptops Direct. Membership continues after your trial at £10.75 per month.

When will I receive my code?

Usually instantly. As soon as you've taken out your Which? membership you'll receive a welcome email that will contain the promotional code. (Please note in a few cases the email can take up to an hour to arrive, please also check your junk folder.)

When will my voucher code expire?

The code will be valid for 2 days and can only be used once.

How do I use my voucher code?

Once you've received your code simply place an order via our website and enter the code at the basket page.

Was: £23.95     You save: £3.96
£19.99

Collect Plus Available from 5,000 collection points
See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield store, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me
  • Smallest, lightest video transmitter on the market
  • 2-6S input power supported
  • 25mW / 200mW power settings
  • Ultra-clean transmission (up to 16 pilots at once!)
  • PitMode - power up your quad during a race
  • Easy OSD, FC and RC channel changes, with fallback button menu
  • Robust RF amplifier allows powering up without antenna for hours!
  • Clean powerup and video switching
More Info »
click
Valid promotions & discounts

Price match: We constantly check our prices to give you the best deal possible. Call us if you see it cheaper elsewhere.

£10 off orders over £250 when you trial Which? for only £1. Click here for more information.
First month £1, then £10.75 per month unless cancelled

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

When racing, the high power output of the Unify PRO is not necessary. Therefore we have made a cheaper version just for our racing bretheren!

Distilling the smallest, lightest and most powerful video transmitters (aka "the golden standard" :) ) down to a bare minimum for FPV racing, at a very attractive price!

Main features

  • Smallest, lightest video transmitter on the market
  • 2-6S input power supported
  • 25mW / 200mW power settings
  • Ultra-clean transmission (up to 16 pilots at once!)
  • PitMode - power up your quad during a race
  • Easy OSD, FC and RC channel changes, with fallback button menu
  • Robust RF amplifier allows powering up without antenna for hours!
  • Clean powerup and video switching
  • CE certified

PitMode - Made to race

Zero interference even while powered up, it's now a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW's), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You've got a few meters of range to put your quad through its paces before placing it on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels.

SmartAudio V2 - Full control

SmartAudio technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in air, create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!

CleanSwitch - Neighbor friendly

CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly ... that's how we like it at TBS :)

Say NO! to Dipswitches

Even though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.

Specifications

  • Operating Voltage: 2S - 6S
  • Supply current: 600mA
  • Operating Temperature: watch for normal airflow
  • Audio carrier Frequency: 6.5 MHz
  • Video Input Impedance: 75 Ohm
  • Weight: 4.4g (PCB Only)
  • Antenna Connector: MMCX
  • Video Format: NTSC/PAL
  • Output Power: 13dBm (25mW), 23dBm (200mW)
  • Size: 31 x 23 x 5 (mm)

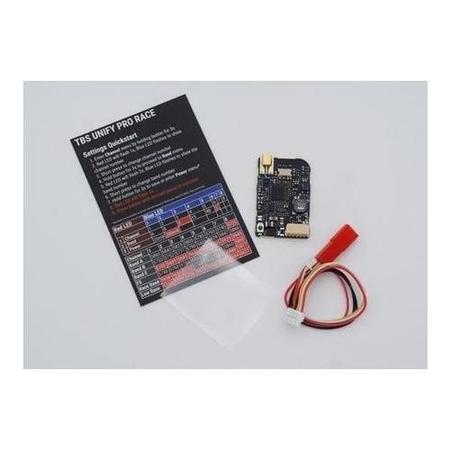

Included

  • 1 x TBS UNIFY 5G8 Video transmitter (MMCX)
  • 1 x TBS UNIFY Pro Manual TBS
  • 1 x SmartAudio specifications
