  • StarTech 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART PEX2S5531P

    Quickfind code: 894313
    Low Stock

    SELLING FAST! Less than 10 remaining

    Condition: Brand new

    Was: £31.54     You save: £6.57
    £24.97

    Collect Plus Available from 5,000 collection points
    See all delivery & collection options

    We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield store, or from thousands of nationwide CollectPlus collection points.

    Simply enter your postcode below to see your delivery options:

    Enter delivery postcode for options and prices:
    click to close
    Why buy me

    StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design. Compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/Server..

    More Info » Tech Spec »
    click
    Valid promotions & discounts

    £10 off orders over £250 when you trial Which? for only £1. Click here for more information.
    First month £1, then £10.75 per month unless cancelled

    Great Value: We constantly check our prices to give you the best deal possible.

    click
    Ways to pay

    Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

    payment options

    We now accept Amazon Pay!
    In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

    click

    Popular Bundles

    Product Information

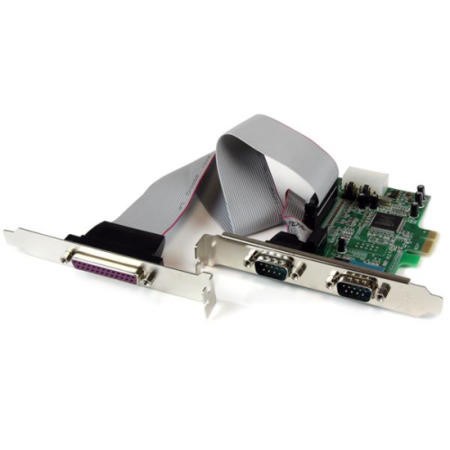

    StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART

    The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.

    Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.



    Tech Spec

    Performance
    Chipset MosChip MCS9901CV-CC
    Ports & interfaces
    Host interface PCIe
    Parallel ports quantity 1
    Serial ports quantity 2
    Operational conditions
    Operating relative humidity (H-H) 5 - 85 %
    Operating temperature (T-T) -20 - 85 °C
    Storage temperature (T-T) -40 - 85 °C
    Other features
    Compatible operating systems DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0,
    Mac OS 10.4.x,
    Linux
    Connectivity Technology Wired
    Data transfer rate 1.5 Mbit/s
    Mac compatibility
    System Requirements
    Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista
    Weight & dimensions
    Depth 105 mm
    Height 20 mm
    Package depth 213 mm
    Package height 138 mm
    Package weight 250 g
    Package width 38 mm
    Weight 140 g
    Width 120 mm
