  • StarTech 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART PEX1S553LP

    Quickfind code: 894302
    Condition: Brand new

    £39.56

    See all delivery & collection options

    We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield store, or from thousands of nationwide CollectPlus collection points.

    Simply enter your postcode below to see your delivery options:

    Enter delivery postcode for options and prices:
    click to close
    Why buy me

    StarTech.com 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64 bit), ..

    More Info » Tech Spec »
    click
    Valid promotions & discounts

    £10 off orders over £250 when you trial Which? for only £1. Click here for more information.
    First month £1, then £10.75 per month unless cancelled

    Great Value: We constantly check our prices to give you the best deal possible.

    click
    Ways to pay

    Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

    payment options

    We now accept Amazon Pay!
    In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

    click

    Popular Bundles

    Product Information

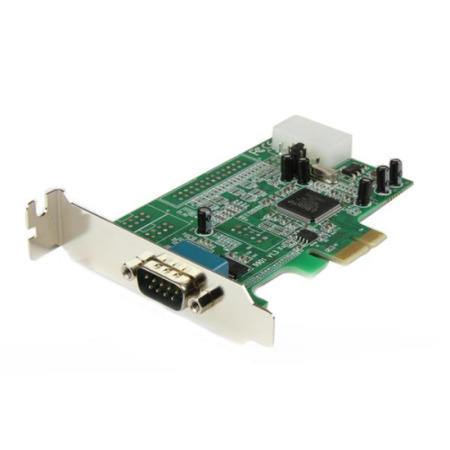

    StarTech.com 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

    The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.

    The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

    The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).



    Tech Spec

    Ports & interfaces
    Host interface PCIe
    Serial ports quantity 1
    Operational conditions
    Operating relative humidity (H-H) 5 - 85
    Operating temperature (T-T) -20 - 85
    Storage temperature (T-T) -40 - 85
    Other features
    Chipset MosChip MSC9922CV-AA
    Compatible operating systems DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0,
    Linux,
    Mac OS 10.4.x
    Connectivity Technology Wired
    Data transfer rate 0.46 Mbit/s
    Mac compatibility
    Ports quantity 1
    System Requirements
    Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Window
    Weight & dimensions
    Depth 105 mm
    Height 20 mm
    Package depth 213 mm
    Package height 138 mm
    Package weight 160 g
    Package width 38 mm
    Weight 51.5 g
    Width 80 mm
