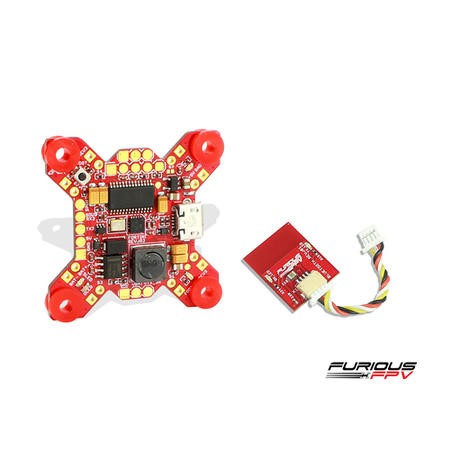

FuriousFPV Fortini F4 32Khz OSD Rev 3 Flight Controller FF32-OR3FC

Quickfind code: 1367744
Join Which? today and get £15 OFF orders over £200!

Which? Logo We are working with Which? to offer you a great deal. Try Which? for £1 and in return you’ll get £10 off orders over £250 when you shop on Laptops Direct. It's quick, easy, and most importantly, you'll save money.

Benefits Member Access
Unlimited access to all member content on which.co.uk, including our Best Buys and Don't Buys which offer
Detailed reviews of our latest products from our Test Labs
Weekly newsletter to keep you up to date with all the latest from Which?
Monthly Which? magazine delivered to your door
Access to consumer legal advice via Which? Legal which offer

Please note: Once your trial comes to an end, your membership will continue at £10.75 a month. Remember you can cancel at any time during the trial or when you’re a member. The email can take up to an hour to arrive, please also check your junk folder. If you don't receive an email from Which? please call their Member Services team on 01992 822800.

Want to take advantage of this offer?

Visit Which? and for £1 you will get a 1 month's trial subscription as well as your £10 off orders over £250 for Laptops Direct. Membership continues after your trial at £10.75 per month.

When will I receive my code?

Usually instantly. As soon as you've taken out your Which? membership you'll receive a welcome email that will contain the promotional code. (Please note in a few cases the email can take up to an hour to arrive, please also check your junk folder.)

When will my voucher code expire?

The code will be valid for 2 days and can only be used once.

How do I use my voucher code?

Once you've received your code simply place an order via our website and enter the code at the basket page.

Low Stock

SELLING FAST! Less than 10 remaining

Was: £34.96     You save: £15.01
£19.95

Collect Plus Available from 5,000 collection points
See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield store, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me
  • Brand name: Furious FPV
  • Item name: FORTINI F4 32Khz 16MB Flight Controller
  • MCU: F4 MCU
  • Lipo cells: 2-6S
  • BEC: 5V/2A
  • OSD: Yes
  • Gyro: 32kHz invernsense 20602
  • Mounting hole: 26x26x7mm
More Info »
click
Valid promotions & discounts

£10 off orders over £250 when you trial Which? for only £1. Click here for more information.
First month £1, then £10.75 per month unless cancelled

Price match: We constantly check our prices to give you the best deal possible. Call us if you see it cheaper elsewhere.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

Furious FPV FORTINI F4 32Khz 16MB Flight Controller with OSD Rev.2 5V 2A BEC for RC Drone FPV Racing

Furious FPV Fortini F4 OSD - Seeing Is Believing.

Building upon the powerful Fortini F4, Furious FPV introduces the all new Fortini F4 OSD, introducing new capability & functionality to simplify setup & redefine your next FPV experience. Hold on - it's about to get really good.

Utilizing the cutting edge & feature packed Fortini F4 platform, we have introduced BetaFlight OSD, with the full ability to alter every setting you need direct via your transmitter. No need for your PC - just a few simple stick movements, and you're there - simple and straightforward, just the way it should be.

From PID's, camera settings, VTx power and beyond, the Fortini F4 OSD builds upon the previous F4 with powerful and easy to use operating capability without the need of a PC. Need more? We added a built in LC filter for even greater video image, allowing you to push the ragged edge with your next FPV ride.

Designed to be nothing but the very best, the Fortini OSD utilizes high performance, low noise 32kHz Invensense 20602 gyros, (5) UARTS, built in Input / Output Inrush Voltage Protection, and the capability to allow S.PORT direct connection with the receiver without any aspect of receiver modification. This massive feature dense packaging offers everything you could ever want from the most sophisticated flight controller available today.

Feature rich and ultra powerful, the Fortini is the full up package, breaking new ground in true FC brilliance. Toss compromise out the window and open your FPV world to the most functional and feature packed FC you have ever seen before.

Specification:

  • Brand name: Furious FPV
  • Item name: FORTINI F4 32Khz 16MB Flight Controller
  • MCU: F4 MCU
  • Lipo cells: 2-6S
  • BEC: 5V/2A
  • OSD: Yes
  • Gyro: 32kHz invernsense 20602
  • Mounting hole: 26x26x7mm
  • Weight: 6.3g

Features:

  • Ultra Simplified OSD Interface w/ No PC Necessary
  • High Performance, Low Noise, Ultra Sensitive 32kHz Invensense 20602 Gyro
  • Five UARTS for Simultaneous Connections of SBUS, S.Port, MSP Receiver, and USB
  • UARTS Connection Options for TBS Smart Audio or Immersion RC Tramp
  • Integrated Soft Mount Silicone Damping for Maximum FC Functionality
  • Inrush Voltage Protection Input & Output via Transient Voltage Suppressor
  • High Quality 5V 2A BEC w/ 2S - 6S Voltage Input Range
  • Built In Driver Inverter for SBUS and Smart Port Connection
  • Separate Power Supply for Gyro w/ LDO for Low Noise & High Accuracy
  • 3.3V - 5V Selectable BEC Output for Rx
  • Fully Capable to Power Rx via USB Port
  • Clean and Easy to Connect 4-in-1 ESC
  • Clean and easy to connect VTX have telemetry (Stealth race, Tramp, Unify)
  • Additional Serial RX 5 & Optional UART6

BetaFlight OSD - Setup Simplified.

Ditch the PC and enter the world of simplicity & ease. Setup brilliance awaits you with built in BetaFlight OSD, offering full parameter adjustment when it comes to all your flight settings. From camera, PID's VTx power and beyond, you are seconds away from perfection - no strings attached.

Invensense 32kHZ Gyro - Nothing but the Best.

Fly it like it's on rails. With cutting edge gyro functionality, the 32kHz Invensense 20602 gyro is the best of the best, offering epic flight characteristics every time you take to the skies. Utilizing low noise & high sensitivity, this gyro makes every flight simply unforgettable.

Simultaneous Connection Functionality - Keep It Social.

With the ability to integrate so many systems into (1) flight controller, the Fortini OSD pushes the realms of connectivity with (5) UARTS, allowing SBUS, S.PORT, MSP Receiver, USB and either TBS Smart Audio or Immersion RC Tramp functionality. Simply put, this bad boy is feature packed in every possible way.

Bad to the Bone BEC - Function Meets Demand.

Massively flexible with high power output, the 2A 5V BEC offers a wide 2S to 6S input range, with the ability to select 3.3V to 5V receiver power & the ability to power the Rx via USB. With this level of flexibility, it's simply plug & play - Furious FPV has taken the hard work out of the loop.

Input & Output Inrush Voltage Protection - Safety is Key.

Protecting against extreme voltage spikes, the Inrush Input & Output Voltage protection keeps everything safe, making sure transient voltage spikes do no damage.

Camera OSD control/LED Strip functions

BetaFlight OSD and beyond, the FORTINI F4 OSD can control the camera OSD settings as well as LED strip functions. This unleash full customization for your build both performance and appearance.
