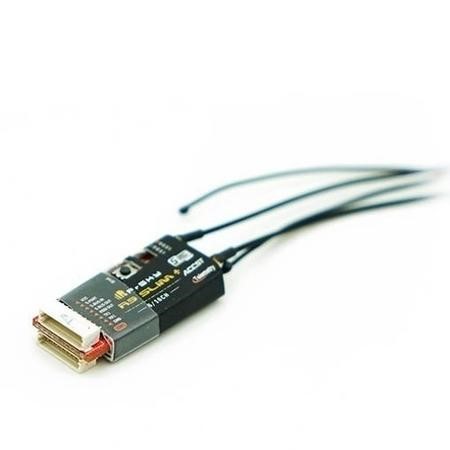

FrSky R9 Slim + 868MHz Receiver For R9M

Overview

The FRSKY R9 Slim + (plus) includes all the advantages of the previous FRSKY R9 long range receiver but has optimised performance and detachable antennas. The R9 Slim plus also features an inverted SBUS & S.Port output which allows compatibility with more devices.Other than that the FRSKY R9 slim has the lower latency and own the best compatibility with all the FrSky R9 transmitters. The redundancy function ensures the security of your aircraft, and its tiny shape with the reduced weight must be the best choice in your competition.

Features:

• 868MHZ(EU Version)
• small and conveniently setup
• Low latency and high precision
• Supports redundancy function
• Smart Port enabled and support telemetry data transmission
• Battery voltage detection
• With inverted SBUS and S.Port outputs
• 2 detachable ipex connector antennas
• With RSSI output
• PCB protection with the comformal coating craftwork

Specification

• Dimension: 32*13.5*5mm (L × W × H)
• Weight: 4.3g
• Numbers of Channel 6/8CH (Telemetry) 6/16CH(No-Telemetry)
• With RSSI Output: Analog 0~3.3V
• Operating Voltage Range: DC 3.5V~12.6V
• Operating Current: 100mA@5V
• Operating Range: up to 10km or above
• Firmware Upgradable
• Compatibility: R9 series TX
