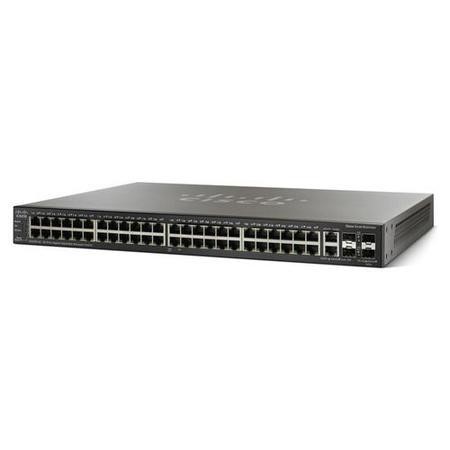

CSB Cisco SG500-52P 52-PORT GIG SG500-52P-K9-G5

Quickfind: 699812 SKU: SG500-52P-K9-G5

Sorry, I’m out of stock!

For help finding something similar, just give us a call on 03300 412270, we can email you if it comes back into stock »

Other customers search for...

Product Information

The Cisco® 500 Series Stackable Managed Switches (Figure 1) are a new line of stackable managed Ethernet switches that provide the advanced capabilities you need to support a more demanding network environment, at an affordable price. These switches provide 24 or 48 ports of Fast Ethernet and 24 to 52 ports of Gigabit Ethernet connectivity with optional 10 Gigabit uplinks, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.



Tech Spec

Data transmission
Jumbo Frames support
MAC address table 16000 entries
Maximum data transfer rate 1 Gbit/s
Number of queues 4
Number of VLANs 4096
Supported data transfer rates 10/100/1000Mbps
Switching capacity 120 Gbit/s
Design
Certification UL, CSA, CE, FCC
Colour of product Black
LED indicators Link
Rack mounting -
Ventilation fan(s) 4
Management features
MIB support
Quality of Service (QoS) support
Switch layer L3
Switch type Managed
Networking
10G support -
Broadcast storm control
DHCP client
Flow control support
Head-of-line (HOL) blocking
Link aggregation
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Port mirroring
Rate limiting
Spanning tree protocol
VLAN support
Performance
Mean time between failures (MTBF) 143124.8 hour(s)
Stackable
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 52
Copper ethernet cabling technology 1000BASE-T,100BASE-TX,10BASE-T
DC-in jack
Gigabit Ethernet (copper) ports quantity 52
SFP/SFP+ slots quantity 2
Power
AC input frequency 47/63
AC input voltage 100-240
Energy Star certified -
Input current 0.405 A
Power consumption (typical) 64.7 W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity 48
Power over Ethernet (PoE) Support
Protocols
Supported network protocols IPv6
Security
Security algorithms 802.1x RADIUS,MD5
SSH/SSL support
Operational conditions
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 40
Storage relative humidity (H-H) 10 - 90 %
Storage temperature (T-T) -20 - 70
Other features
Packet transfer speed 77.38 mpps
Power LED
System Requirements
Compatible operating systems Microsoft Windows, Linux, Mac OS X
Minimum system requirements Mozilla Firefox 3.6, Microsoft Internet Explorer 7 \nEthernet Cat 5
Weight & dimensions
Depth 350 mm
Height 44 mm
Weight 5610 g
Width 440 mm
