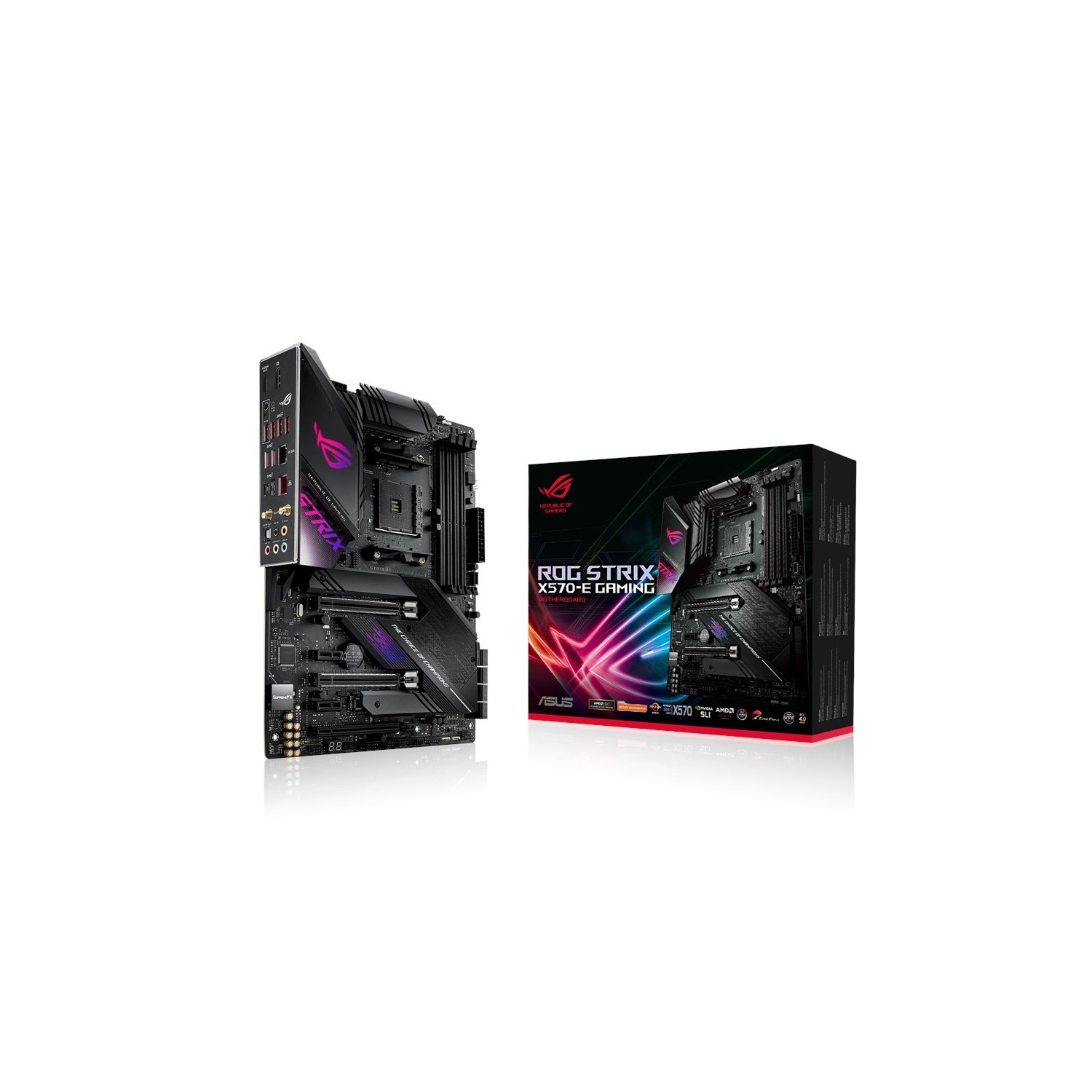

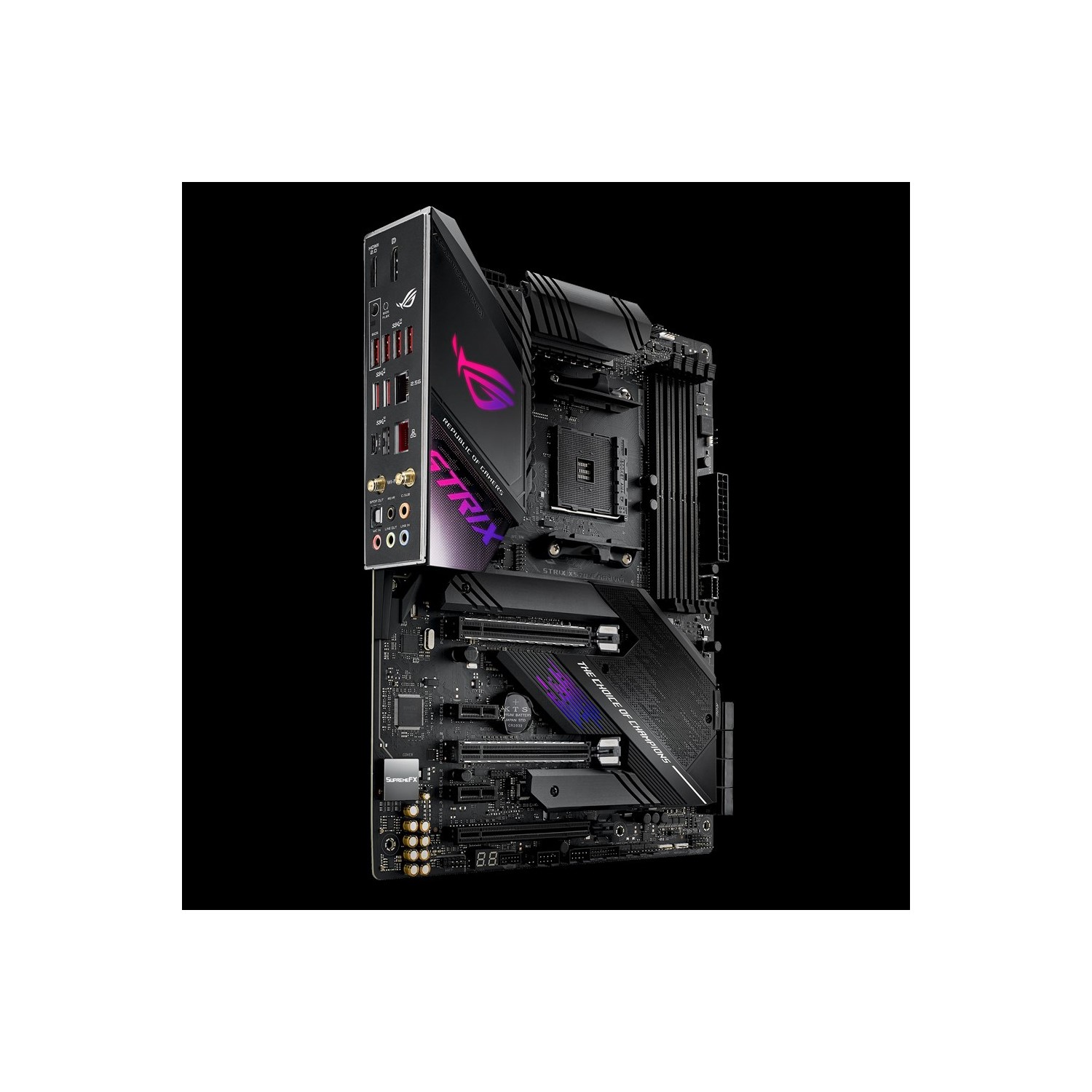

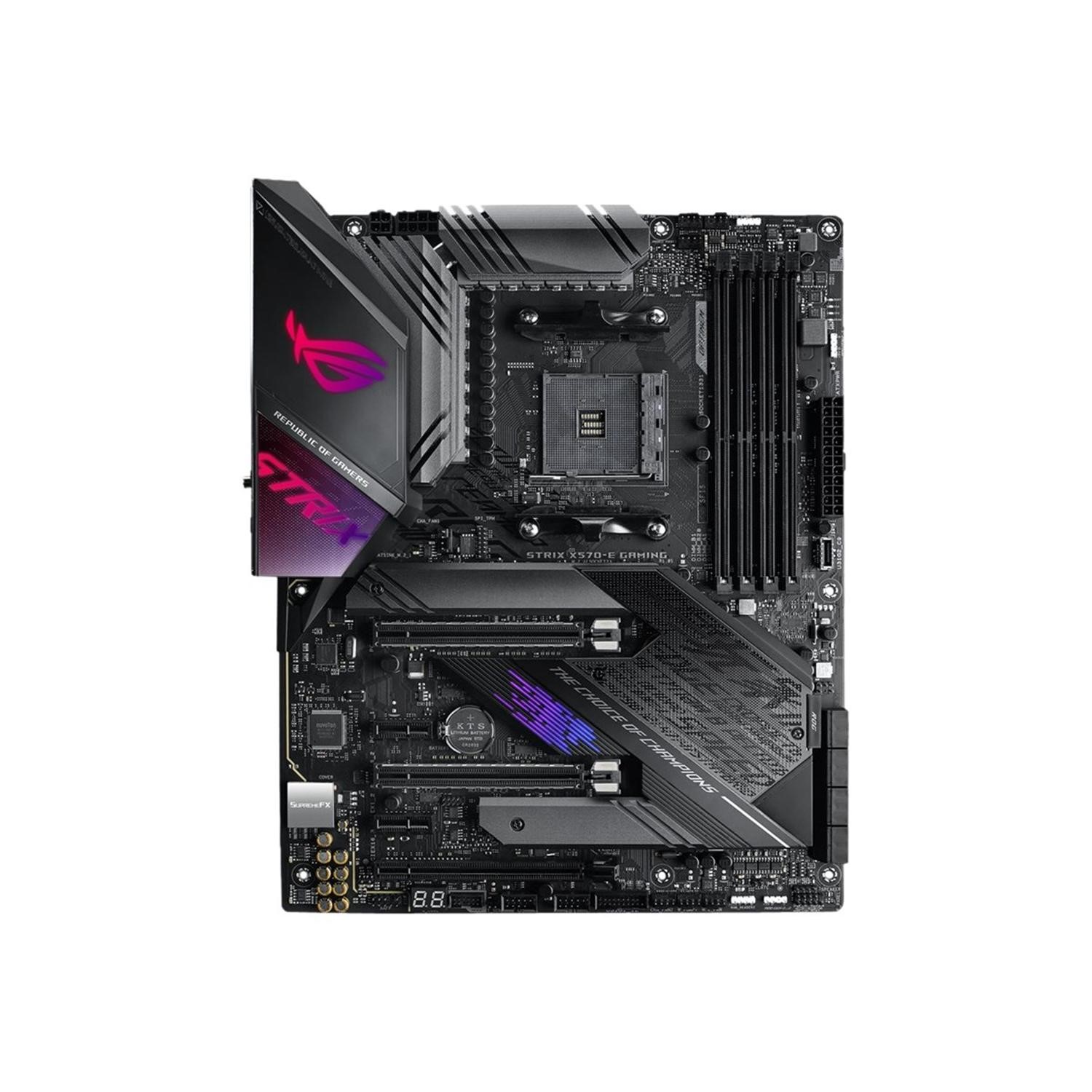

Digital power control and an array of power stages ensures ROG Strix X570-E Gaming has the muscle to control the latest AMD Ryzen CPUs.
1. MOS heatsink with 8mm heatpipe A MOS heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north MOS heatsink for better performance and wattage resistance. 2. Thermal pad A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink. 3. 6-Layer PCB The 6-layer PCB quickly dissipates heat around the VRM, improving overall system stability and giving the CPU more overclocking headroom. 4. Dual M.2 heatsinks The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability. 5. Active chipset heatsink A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.
ACTIVE CHIPSET HEATSINK SOLUTION
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The ROG Strix X570-E features an actively cooled heatsink to prevent throttling during sustained transfers.
œ Custom Delta Superflo Fan The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan. * L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum. œ Air Duct A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins. œ Finned heatsink The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
DUAL PCIE 4.0 M.2
Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.
ASUS OPTIMEM ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
ROG Strix X570-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.
1. 2.5G Ethernet 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers. 2. Intel Gigabit Ethernet ROG Strix X570-E Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.3. WIFI 6 (AX200) The latest 802.11ax standard delivers high efficiency wireless connectivity for better gaming enjoyment. As well as providing better network pings in multi-user environments, 802.11ax also greatly improves throughput and coverage over earlier standards.
Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
œAudio line shielding Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio. œDual Op Amplifiers With two op-amps onboard you're able to pump exceptional audio to your favorite cans, with 32-600Ω-headphone impedance for great flexibility. œPremium Nichicon® audio capacitors Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.
OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
ROG PATENTED PRE-MOUNTED I/O SHIELD
ROG's patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard
Diagnostic codes provide a reference for fast and easy look up of common installation and component problems.
The front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.
BIOS Flashback™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS Flashback port and press the button. Updates can even be performed without having memory or a CPU installed.
GAMEFIRST V NETWORK CONTROL
GameFirst V is an ROG-exclusive tool that optimizes network traffic and your connection for faster, lag-free online gaming. Select the best Wi-Fi channel for maximum stability and minimum interference, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.
SONIC STUDIO III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
