GRADE A1 - DJI Phantom 4 RTK Drone A1/77883483/1/DJIP4RTK

Quickfind: 1537968 SKU: A1/77883483/1/DJIP4RTK

Sorry, I’m out of stock!

For help finding something similar, just give us a call on 0871 244 0934, we can email you if it comes back into stock »

Similar products

Other customers search for...

Product Information

This is a graded product. A1 products are "as new" but have been box opened. All A1 products will be fully bubble-wrapped for transportation.

GRADE A1

If you need any help or advice at all on this drone, or its real world application, please give our experts a call on 0330 041 2733

What Stands out

  • The DJI Phantom 4 Pro RTK can produce extremely accurate data
  • New TimeSync feature on Phantom 4 RTK
  • The camera is the same as the Phantom 4 Pro, a 1" CMOS sensor which captures incredible detail

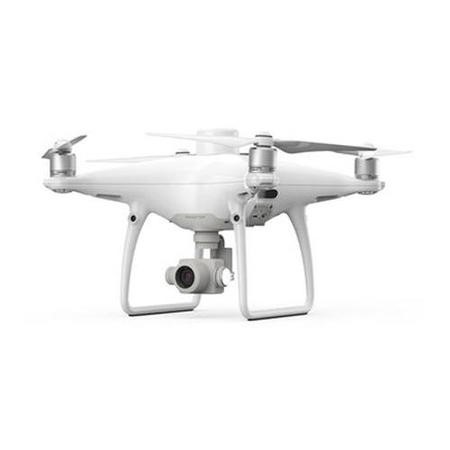

DJI Phantom 4 RTK

The Phantom 4 RTK was designed by looking at the requirements from the drone mapping and surveying market and building exactly what they wished for – a compact drone solution with a high resolution camera and the ability to capture centimeter-accurate RTK data.

Next Generation Mapping

DJI has rethought its drone technology from the ground-up, revolutionizing its systems to achieve a new standard for drone accuracy – offering Phantom 4 RTK customers centimeteraccurate data while requiring fewer ground control points. The below chart highlights what accuracy can be achieved and the

Centimeter level positioning system

A new RTK module is integrated directly into the Phantom 4 RTK, providing real-time, centimeter-level positioning data for improved absolute accuracy on image metadata. Sitting just beneath the RTK receiver is a redundant GNSS module, installed to maintain flight stability in signal-poor regions such as dense cities. Combining both modules, the Phantom 4 RTK is able to optimize flight safety while ensuring the most precise data is captured for complex surveying, mapping and inspection workflows. Fit the Phantom 4 RTK to any workflow, with the ability to connect this positioning system to the D-RTK 2 Mobile Station, NTRIP (Network Transport of RTCM via Internet Protocol) using a 4G dongle or WiFi hotspot, or store the satellite observation data to be used for Post Processed Kinematics (PPK).

Gather Accurate Data with TimeSync

To take full advantage of the Phantom 4 RTK's positioning modules, the new TimeSync system was created to continually align the flight controller, camera and RTK module. Additionally, TimeSync ensures each photo uses the most accurate metadata and fixes the positioning data to the center of the CMOS – optimizing the results from photogrammetric methods and letting the image achieve centimeter-level positioning data.

Precise Imaging System

Capture the best image data with a 1-inch, 20 megapixel CMOS sensor. Mechanical shutter makes mapping missions or regular data capture seamless as the Phantom 4 RTK can move while taking pictures without the risk of rolling shutter blur. Due to the high resolution, the Phantom 4 RTK can achieve a Ground Sample Distance (GSD) of 2.74 cm at 100 meters flight altitude. To ensure each Phantom 4 RTK offers unparalleled accuracy, every single camera lens goes through a rigorous calibration process where radial and tangential lens distortions are measured. The distortion parameters gathered are saved into each image's metadata, letting post-processing software adjust uniquely for every user.

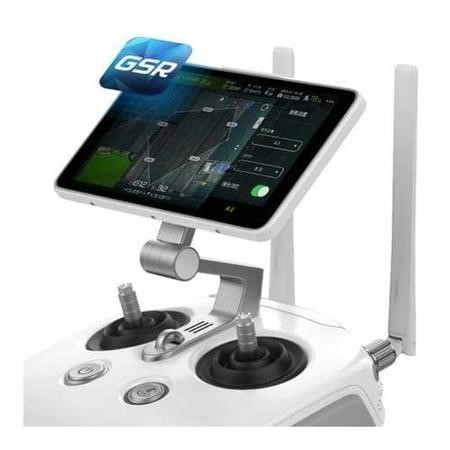

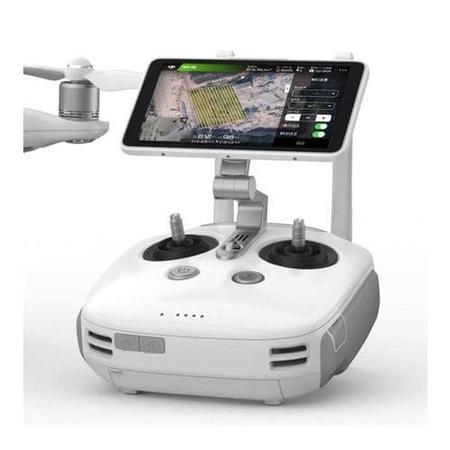

Purpose-Built Flight Planning Application

A new GS RTK app allows pilots to intelligently control their Phantom 4 RTK, with two planning modes – Photogrammetry and Waypoint Flight – alongside a more traditional flight mode. The planning modes let pilots select the drone's flight path while adjusting overlap rate, altitude, speed, camera parameters and more, offering an automated mapping or inspection workflow. The GS RTK app has been built with its users in mind and therefore has a range of features built for specific mapping or inspection workflows. The app has implemented direct loading of KML area files for in-office flight planning, a new shutter priori mode to keep exposure consistent across all photos and a strong wind alarm to warn pilots of adverse conditions.

Mobile SDK Supported

The Phantom 4 RTK is compatible with the DJI Mobile SDK, opening up its functions to automation and customization through a mobile device.

OcuSync Transmission System

Enjoy stable and reliable HD image and video transmission at distances of up to 7 km, great for mapping larger sites.

Seamless Compatibility with D-RTK 2 Mobile Station

Support your Phantom 4 RTK missions with the D-RTK 2 Mobile Station – providing real-time differential data to the drone and forming an accurate surveying solution. The Mobile Station's rugged design and OcuSync 2.0 transmission system ensures you can gain centimeter-level accurate data with your Phantom 4 RTK in any condition.

Start Mapping Today

With a built-in flight planning app (GS RTK) and an easy method to collect RTK data (RTK Network or D-RTK 2 Mobile Station), pilots have a full solution for any surveying, mapping or inspection workflow – right out of the box.



Tech Spec

Technical Specifications
Our Rating 5/5
Skill Level Advanced
Ready To Fly
Ready To Fly
Built In Camera
Photo Quality 20 Megapixel
Video Quality 4K
Battery life Up to 30 Minutes
Collision Avoidance Omnidirectional except top
Live First Person View
FPV Quality 720p
GPS System
Auto Take Off & Landing
Position & Altitude Hole
Return To Home
Operating Range 5km
Control System Remote
Weight 1391g
Speed 16m/s
Number Of Rotors 4
LED Lighting
