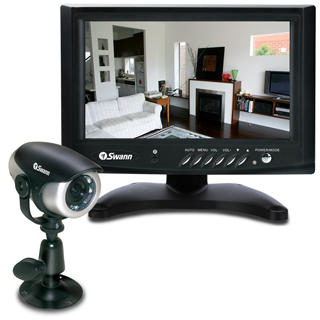

The Home and Business Monitoring Kit is a new generation of the SecuraView, one of Swannns best selling products. It allows you to view and hear security video on a crystal clear 7 inch color LCD monitor. The monitor connects to the color camera via a 60 foot / 18 meter cable. You can operate using the remote control in the pack. Both the monitor and camera must be connected to mains power. The pack also includes 4 theft deterrent stickers and everything you need to get started.
The Home and Business Monitoring Kit is perfect for anyone wanting an affordable starting point for their security needs. Its ideal for small businesses, retail stores, restaurants or home use. The unit has a discreet, small footprint with a modern and stylish finish. Its a cost effective way to see AND hear whats really happening.
You will love the color video. Unlike black and white systems, you will be able to identify what color clothing people are wearing, what color hair they have, and get a truer picture of what is going on. Its easy to do-it-yourself. Mount the camera to a wall or ceiling is simple with screws included in the pack. The LCD monitor can be mounted upside down or side-ways and the video will realign itself to be the right way up using the image flip option. For discretion and to save power you can also use the auto turn-off function when the unit is not needed.
Video
- Image Sensor 1/3" CMOS
- Video Quality 400 TV Lines
- Number of Effective Pixels NTSC: 510 x 492 PAL: 628 x 582
- Minimum Illumination 0 Lux (IR on)
- Day/Night Mode Color during day / switches to B&W at night
- White Balance Automatic
- Signal / Noise Ratio > 50dB
- Electronic Shutter 1/60 - 1/15,000 NTSC 1/50 - 1/15,000 PAL
- Gain Control Automatic
- Backlight Compensation Yes
- Wide Dynamic Range N/A
- Lens 4mm
- Viewing Angle 90 degrees
- Microphone Yes
- Audio Range Up to 3ft / 1m
- Night Vision Distance Up to 16ft / 5m
- Number of Infra-Red LEDs 8
- Infra-Red Wavelength 850nm
- Infra-Red LED Life 10,000 hours
- Indoor / Outdoor Indoor
- Operating Power DC 12V
- Operating Temperature 32 degrees F ~ 113 degrees F 0 degrees C ~ 45 degrees C
- Body Construction Heavy Duty Plastic
- Dimensions - Camera & Stand 4.25" x 2.75" x 1.75" 108mm x 69mm x 44mm
- Weight - Camera & Stand 4.23oz / 125g
- Cable Length 60ft / 18m RCA
Display
- Screen Size 1/3" CMOS
- Screen 400 TV Lines
- LCD Profile Ratio NTSC: 510 x 492 PAL: 628 x 582
- Display Resolution 0 Lux (IR on)
- Contrast Color during day / switches to B&W at night
- Brightness Automatic
- Response Time (ms) > 50dB
- Viewing Angle 1/60 - 1/15,000 NTSC 1/50 - 1/15,000 PAL
- Video Input Automatic
- Audio Input Yes
- Audio Output Up to 3ft / 1m
- Power Supply 12V DC
- Connecting Termimnal
- Remote Control Yes
- Battery QTY & Type 2 x AAA
- Operation Temperature -10 degrees C ~ 50 degrees C 14 degrees F ~ 122 degrees F
- Power Consumption Approx. 10W
