20-Port Gigabit Smart Managed PoE Switch

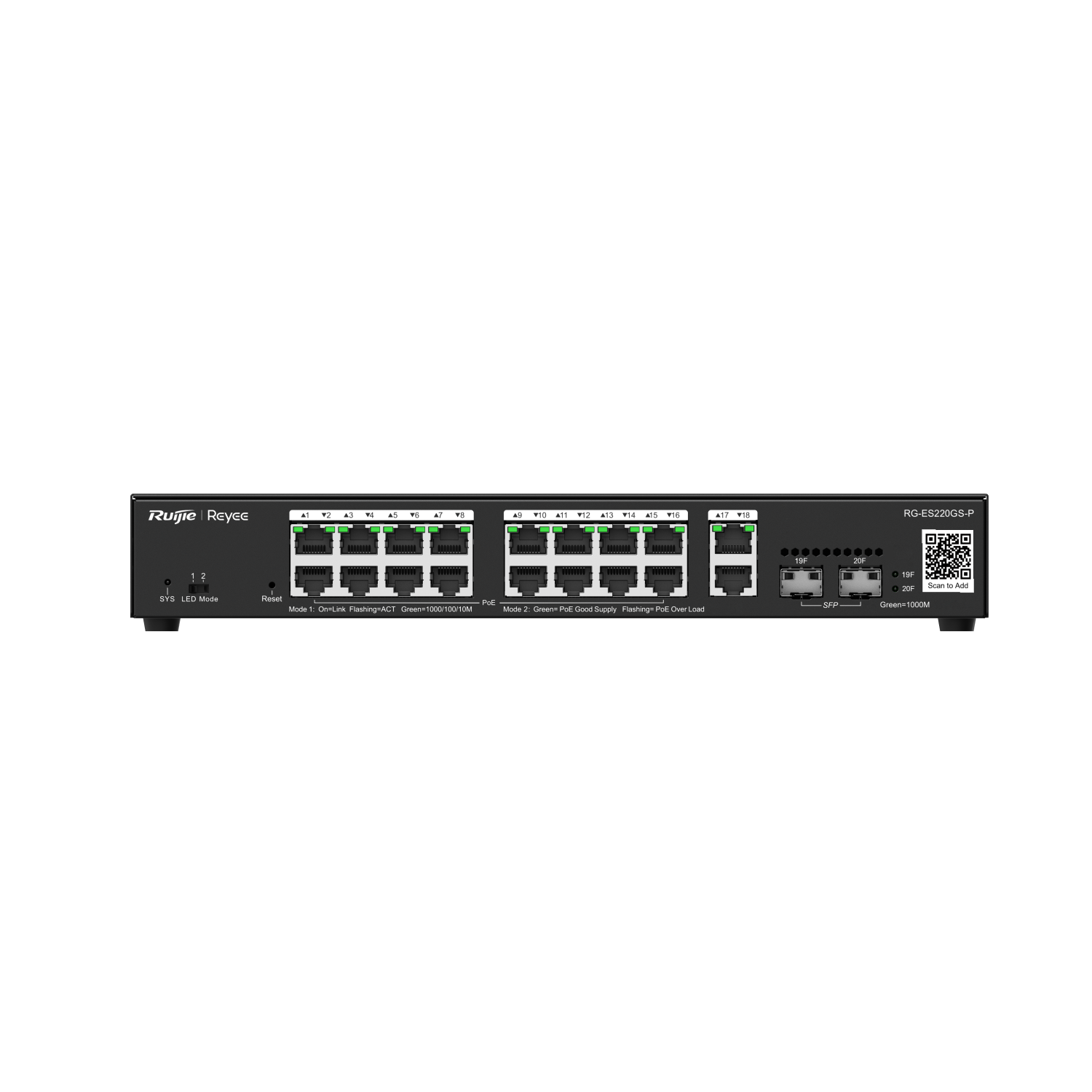

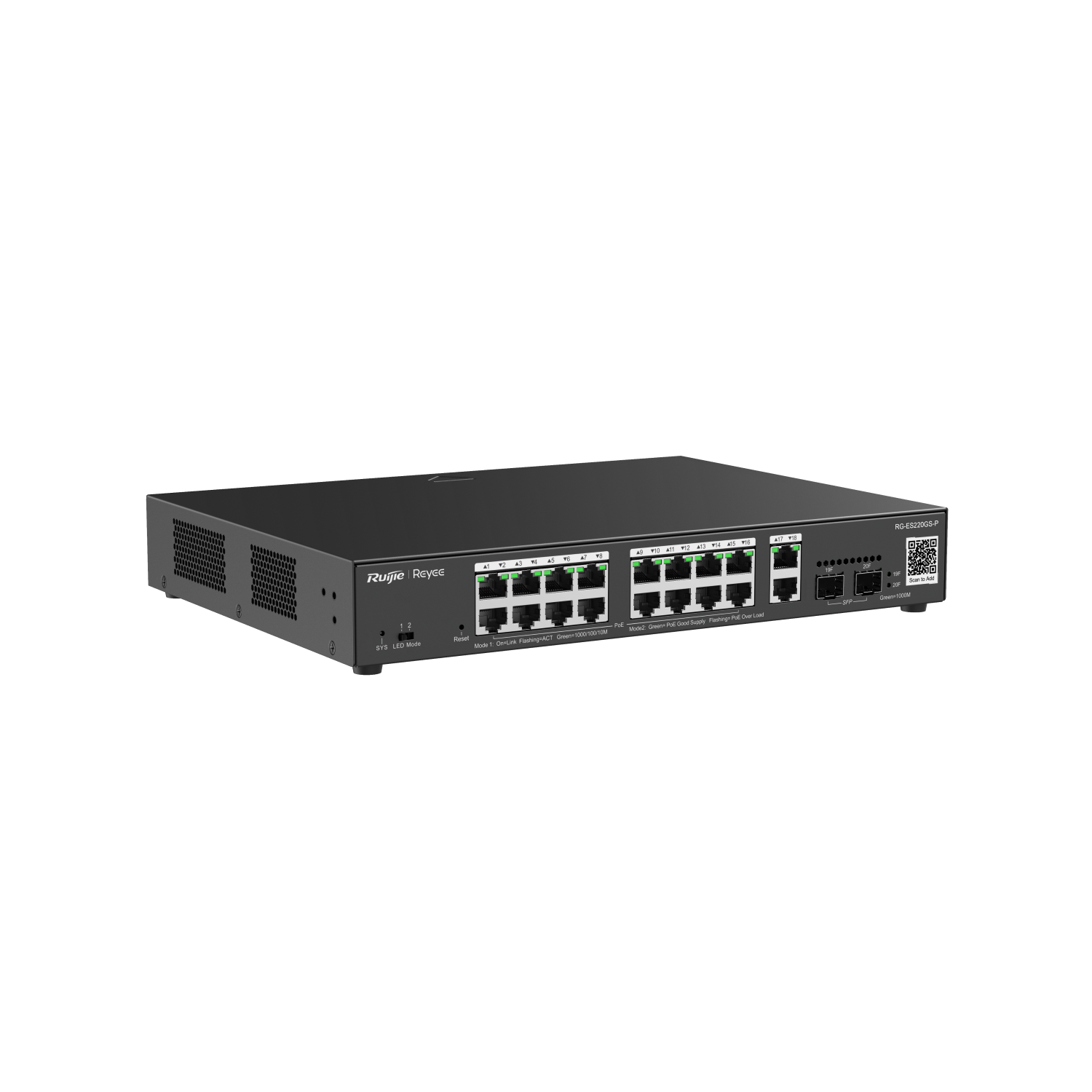

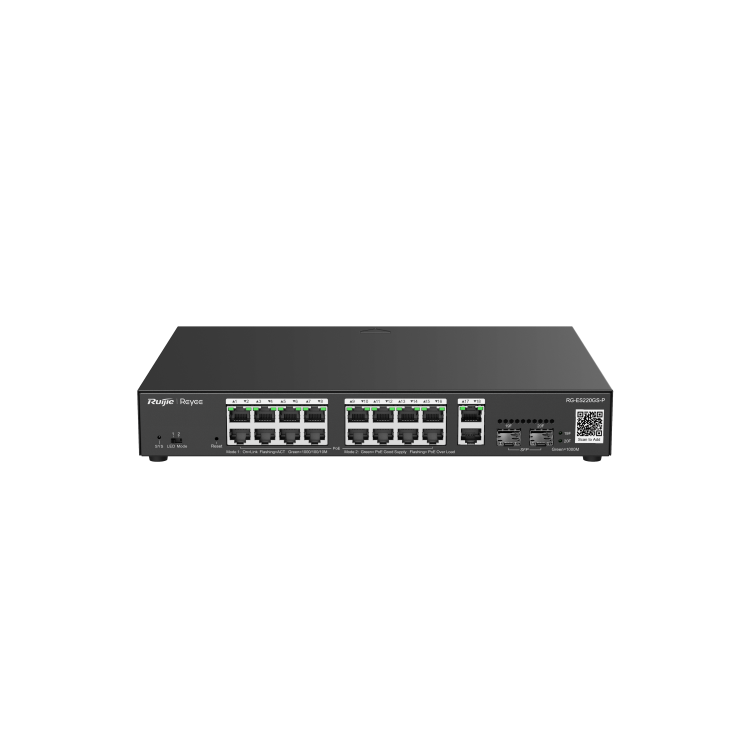

The RG-ES220GS-P features 16 PoE+ Gigabit ports, 2 standard RJ45 uplink ports, and 2 SFP uplink ports, offering flexible deployment for surveillance and enterprise networks.
250W PoE+ Power Budget
Supports IEEE 802.3af/at standards with a total PoE budget of 250 watts, enabling full-power output across all PoE ports for high-demand devices like IP cameras and access points.
Cloud-Based Management Platform
Provides lifetime access to Ruijie Cloud and the Ruiyi App for remote monitoring, configuration, and maintenance, simplifying network operations and reducing costs.
IP Camera and NVR Recognition
Automatically identifies and optimizes traffic for IP cameras and NVRs, streamlining CCTV network setup and improving device performance.
Automatic Loop Prevention
Built-in loop detection ensures continuous service by preventing broadcast storms and maintaining network stability in complex deployments.
High Switching Performance
Delivers a switching capacity of 40 Gbps and a forwarding rate of 29.76 Mpps, supporting fast and reliable data transmission across all ports.
Advanced Layer 2 Features
Includes VLAN support, MAC address learning, port isolation, storm control, and flow control, enabling secure and segmented network configurations.
Durable and Quiet Design
Equipped with a built-in fan that stops below 25°C for silent operation, and offers surge protection up to 4 kV, with an MTBF over 200,000 hours and a 3-year warranty for long-term reliability.
