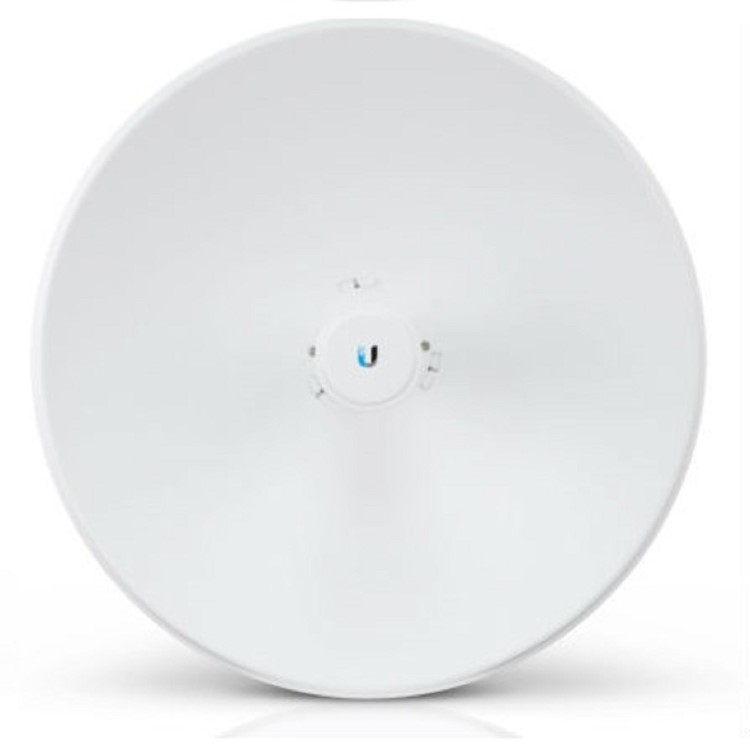

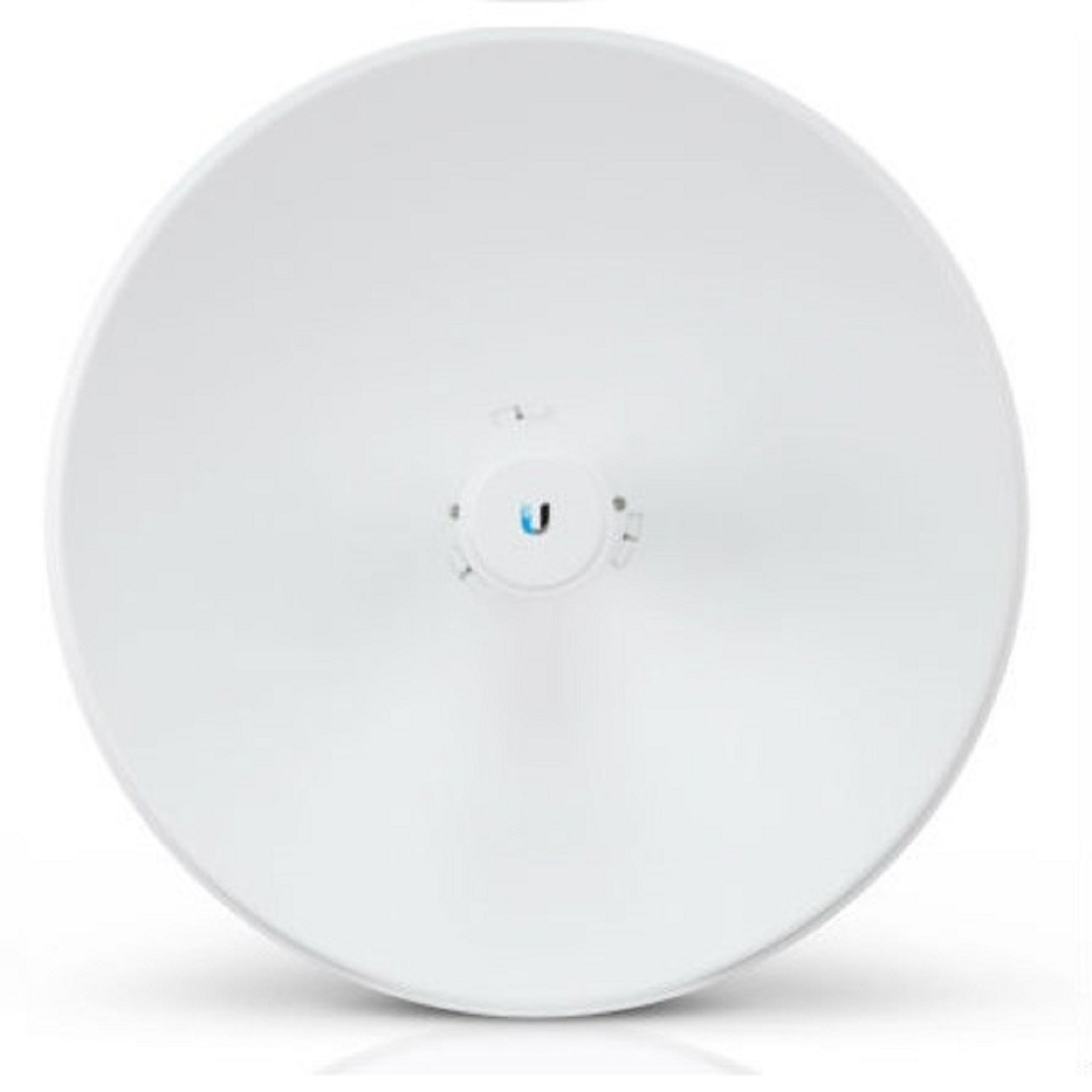

Ubiquiti's PBE-5AC-Gen2 incorporates a dish reflector design with airMax ac technology. Operating in the 5GHz frequency, the PowerBeam 5AC Gen 2 is capable of up to 450+ Mbps throughput and can be deployed in links of up to 25km. The PowerBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, improving noise immunity. The device also takes advantage of Ubiquiti's InnerFeed technology, integrating the radio into the antenna's feedhorn to eliminate cable losses.
PBE-5AC-Gen2 is an innovative solution that complements the second generation of airMAX CPE (Customer Premises Equipment).
The solutions used in the PBE-5AC-Gen2 device translates into maximum efficiency. Resistance to interference makes the device operational in places with high radio link densities.

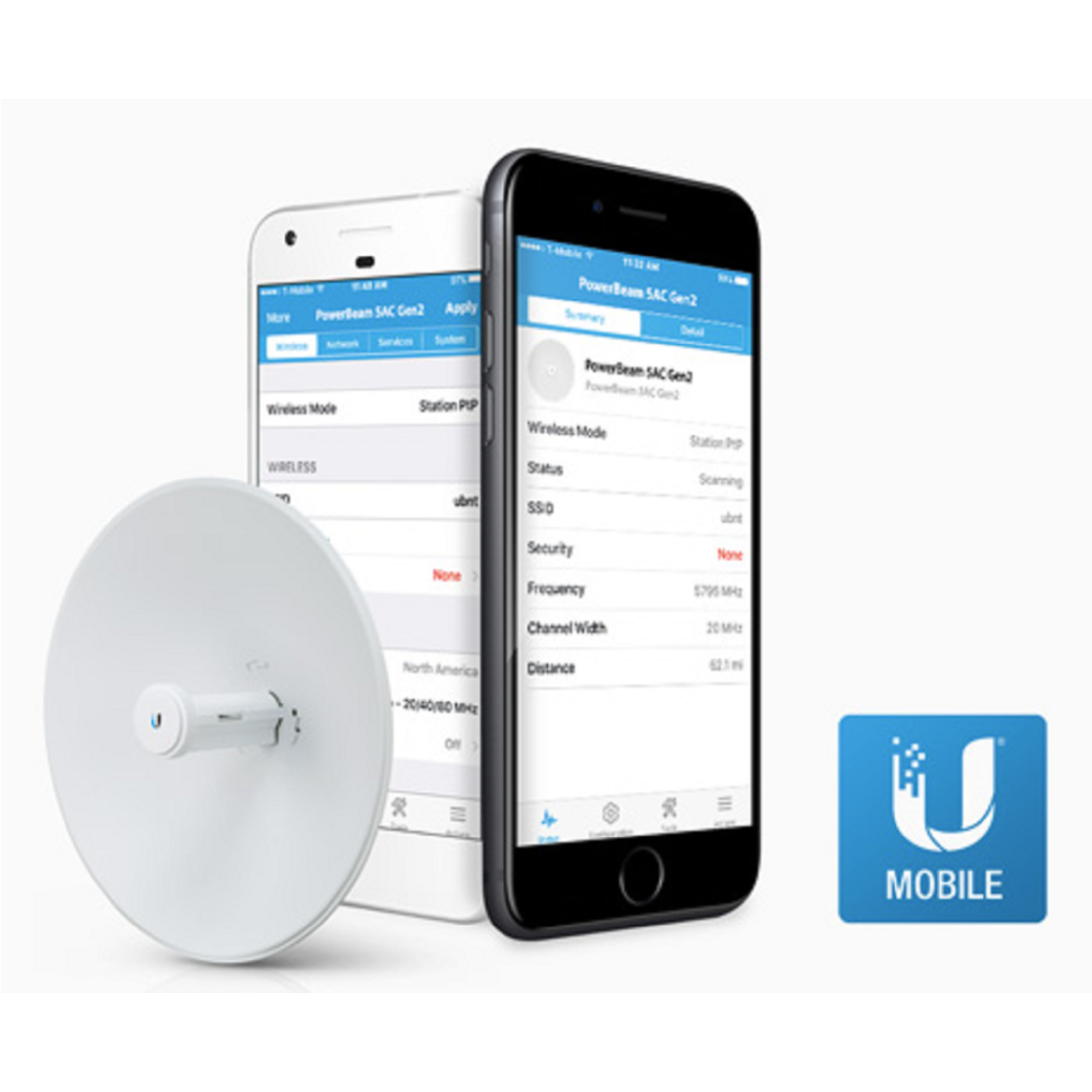

The device features an additional Wi-Fi module, allowing for configuration with the use of mobile devices.
PBE-5AC-Gen2 is based on the modern airOS 8 system, which translates into advanced functionalities.

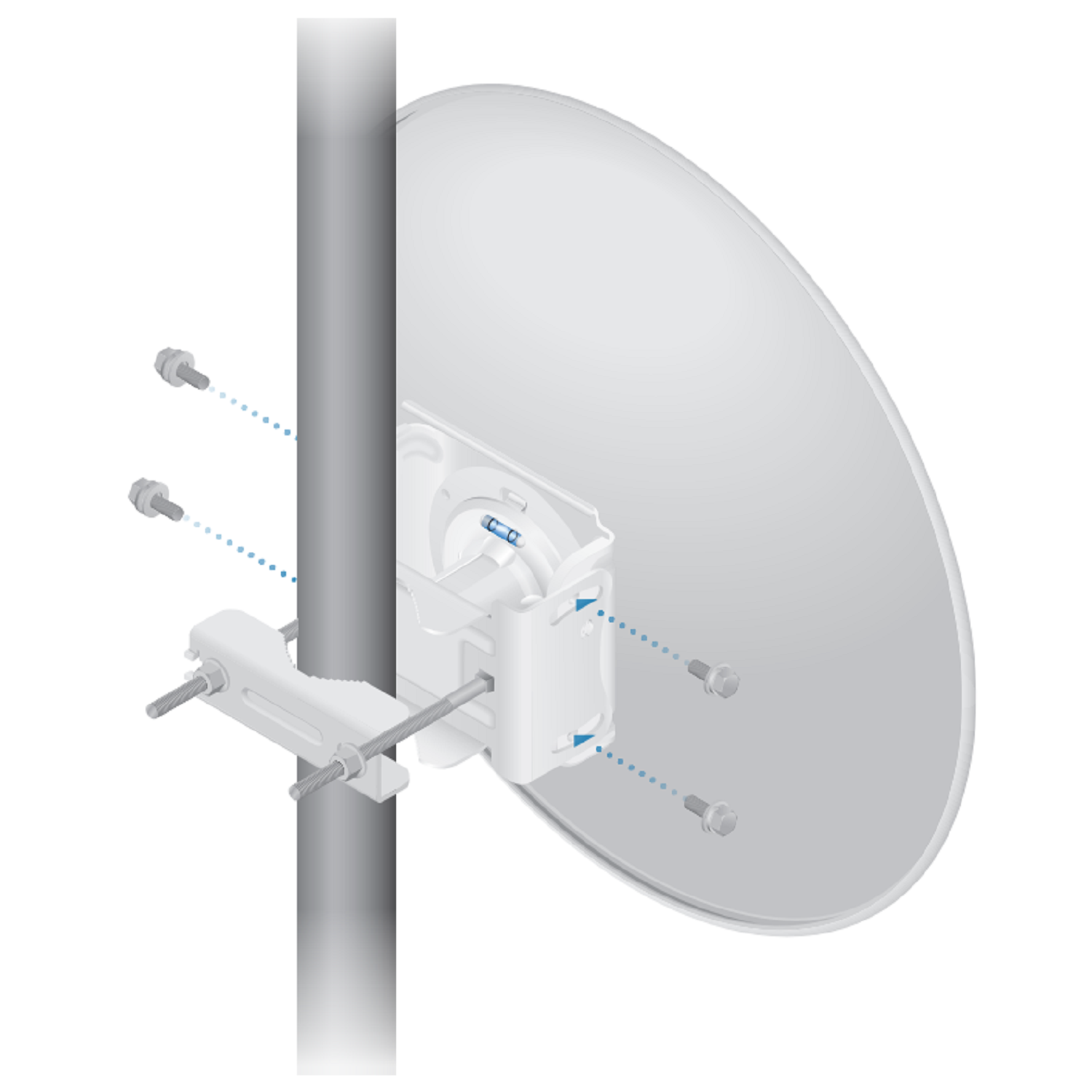

The installation of the device is quick and efficient. Only one spanner is required for pole mounting.
Key features
- Operating frequency of 5 GHz
- MIMO 2x2 support
- Range of 25 dBi
- 450+ Mbps bandwidth
