StarTech 4 Port RS232 PCI Express Serial Card w/ Breakout Cable - PEX4S553B
Quick Find: 894323

SAVE 10%

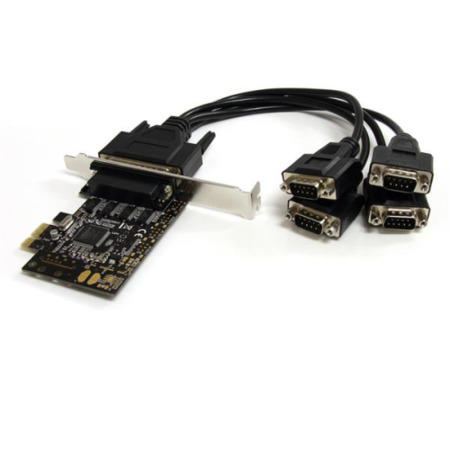

StarTech 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
Was: : £83.97     You save: : £8.00

Now   £75.97



StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot. The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers. The multi-port serial adapter in..

More Info...

StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.

The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS.


Ports & interfaces
Host interface PCIe
Serial ports quantity 4
Operational conditions
Operating relative humidity (H-H) 5 - 85
Operating temperature (T-T) 0 - 70
Storage temperature (T-T) -40 - 85
Other features
Chipset MosChip MCS9901
Compatible operating systems DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, Mac OS 10.4.x, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0
Connectivity Technology Wired
Data transfer rate 0.25 Mbit/s
Mac compatibility
Ports quantity 4
Weight & dimensions
Depth 70 mm
Height 62 mm
Package depth 175 mm
Package height 40 mm
Package width 142 mm
Weight 226.24 g
Width 20 mm
