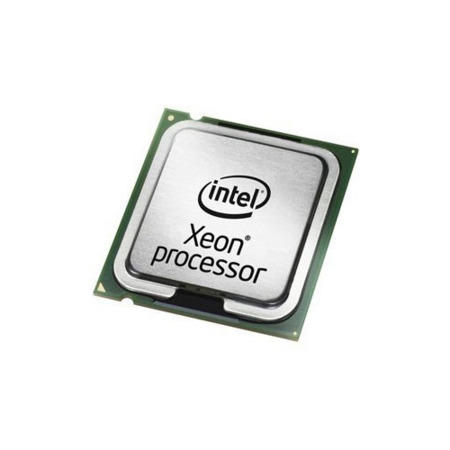

HP DL360p Gen8 Intel Xeon E5-2650 8-Core (2.00GHz 20MB L3 Cache) Processor
Features |
|
CPU configuration (max) | 2 |
Embedded options available | |
Execute Disable Bit | |
Idle States | |
Maximum number of PCI Express lanes | 40 |
PCI Express slots version | 3.0 |
Scalability | 2S |
Supported instruction sets | AVX |
Thermal Design Power (TDP) | 95 W |
Thermal Monitoring Technologies | |
Graphics |
|
On-board graphics adapter | |
Memory |
|
ECC supported by processor | |
Maximum internal memory supported by processor | 384 GB |
Memory bandwidth supported by processor (max) | 51.2 GB/s |
Memory channels supported by processor | QUAD |
Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
Memory types supported by processor | DDR3-SDRAM |
Operational conditions |
|
Tcase | 77.4 °C |
Power |
|
VID Voltage Range | 0.6 - 1.35 V |
Processor |
|
Box | - |
Bus type | QPI |
Component for | server/workstation |
Number of QPI links | 2 |
Processor boost frequency | 2.8 GHz |
Processor cache | 20 MB |
Processor cache type | L3 |
Processor cores | 8 |
Processor family | Intel Xeon E5 |
Processor frequency | 2 GHz |
Processor front side bus | - MHz |
Processor lithography | 32 nm |
Processor Model | E5-2650 |
Processor operating modes | 64-bit |
Processor socket | Socket R (LGA 2011) |
Processor threads | 16 |
System bus rate | 8 GT/s |
Processor special features |
|
Enhanced Intel SpeedStep Technology | |
Intel 64 | |
Intel AES New Instructions | |
Intel Demand Based Switching | |
Intel Flex Memory Access | |
Intel Hyper-Threading Technology | |
Intel Identity Protection Technology | |
Intel Trusted Execution Technology | |
Intel Turbo Boost Technology | 2.0 |
Intel Virtualization Technology (VT-x) | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel vPro Technology | |
Intel VT-x with Extended Page Tables (EPT) | |
Other features |
|
Compatibility | DL360P GEN8 |
