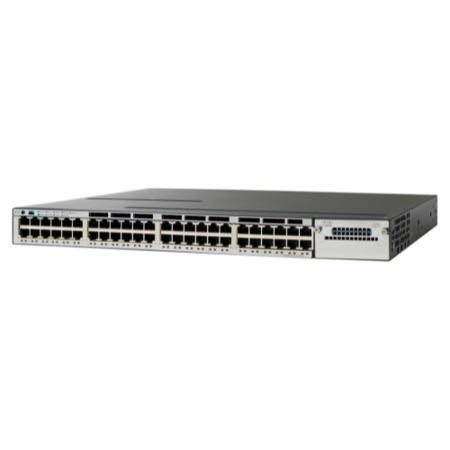

Cisco CATALYST 2960-X 48 GIGE POE 370 WS-C2960X-48LPD-L

Quickfind code: 807416

Was: £3639.97     You save: £923.21
£2716.76
or £75.47a month more info

See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me
  • Forty eight (48) 10/10/1000 Ethernet Gigabit ports and Two (2) 10G SFP+ uplinks
  • Dual Core CPU with 512MB Memory (DRAM) and 128MB flash memory
  • Up to 8 switches stacking with 80G of stack throughput (optional)
  • Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port
  • External RPS supports redundant power
  • Energy-efficient solution reduces power consumption
  • LAN base Cisco IOS software feature set
More Info » Tech Spec »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 0871 971 0005 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro, Solo and American Express, as well as Amazon payments and Paypal - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

-
  • Forty eight (48) 10/10/1000 Ethernet Gigabit ports and Two (2) 10G SFP+ uplinks
  • Dual Core CPU with 512MB Memory (DRAM) and 128MB flash memory
  • Up to 8 switches stacking with 80G of stack throughput (optional)
  • Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port
  • External RPS supports redundant power
  • Energy-efficient solution reduces power consumption
  • LAN base Cisco IOS software feature set
-
1

Cisco Catalyst

Cisco catalyst 2960X-48LPD-L LAN Base Layer 2 stackable switch is comprised of 48 Ethernet 10/100/1000 ports with POE+ and 2 * 10G SFP+ uplink interfaces.


3

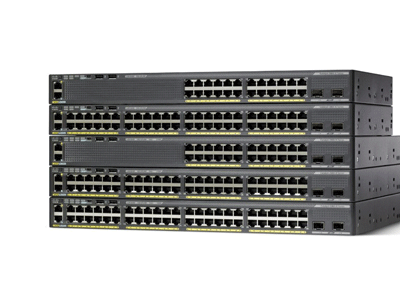

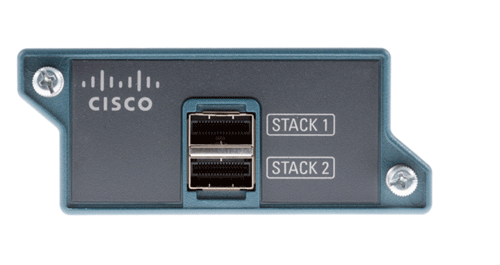

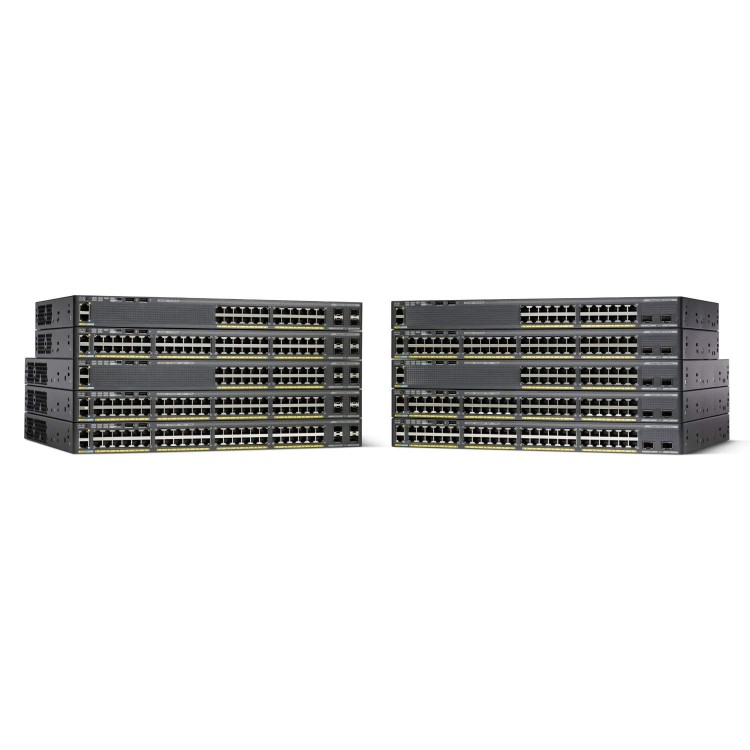

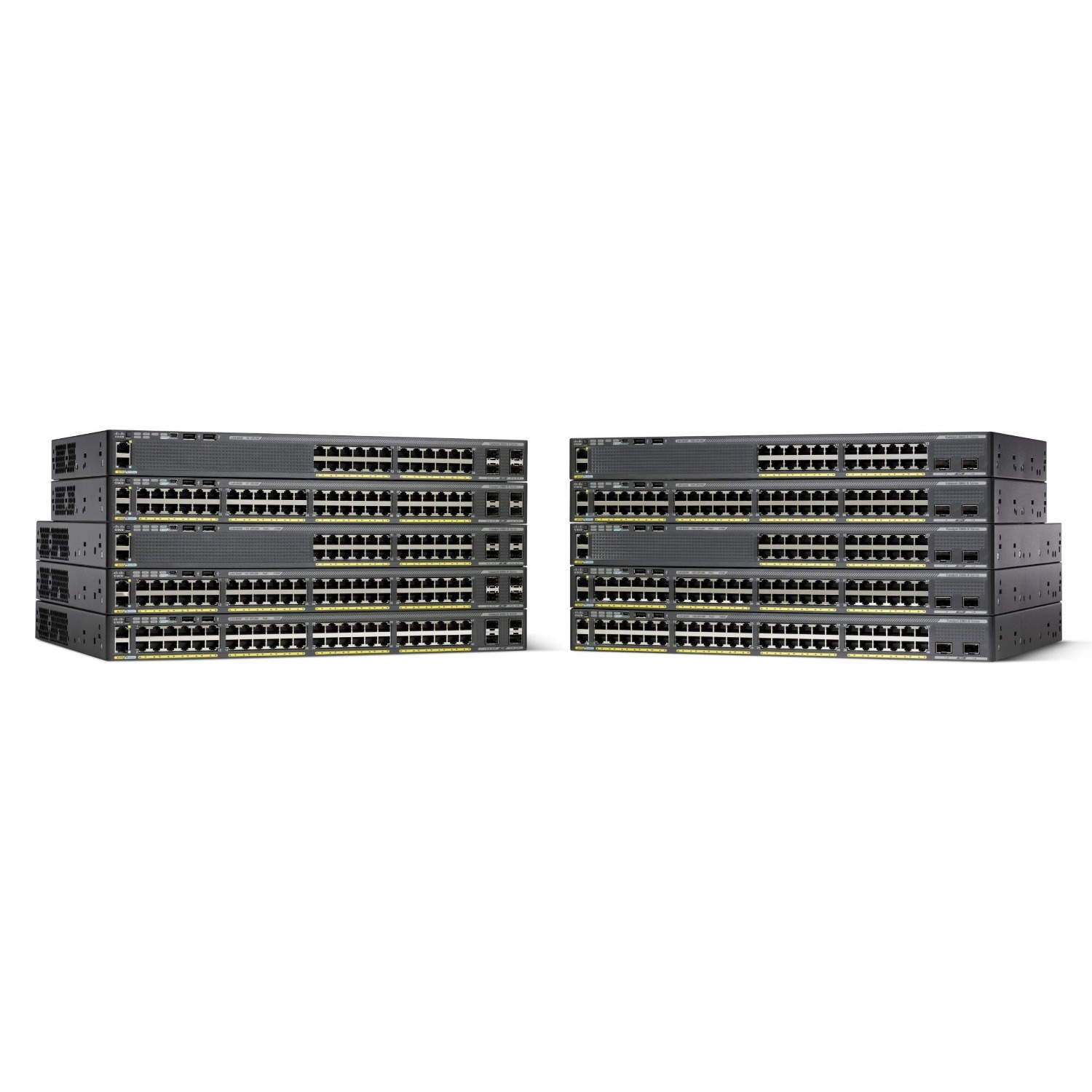

Advanced energy management solution with intelligent services reduces the power cost of business development. FlexStack plus technology supports up to 8 switches stacking with the same 2960-X LAN base series offering up to 80Gbps of stack throughput or up to 4 switches stacking when mixed with 2960-S LAN base series switches providing up to 40G of stack throughput.


2

Cisco IOS software features enhance forwarding process and USB/Ethernet management interface simplify the operations. LAN base image delivers comprehensive layer 2 switching functionalities with enhanced QoS features which power the access layer switching performance. Netflow lite simplifies the network traffic monitoring procedure by capturing and recording packet flows in order to troubleshoot the thrill of the network. The industry standard IEEE802.3at PoE+ provides up to 30W per port.




Tech Spec

Data transmission
Jumbo Frames support
MAC address table - entries
Number of VLANs 1023
Switching capacity 216 Gbit/s
Design
Colour of product Black
LED indicators
Rack mounting
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Management features
Multicast support
Quality of Service (QoS) support
Switch layer L2
Switch type Managed
Web-based management
Networking
10G support
Auto MDI/MDI-X
Broadcast storm control
DHCP server
Full duplex
IGMP snooping
Link aggregation
Networking standards IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Rate limiting
Spanning tree protocol
VLAN support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Console port RJ-45
SFP ports quantity 0
SFP+ ports quantity 2
USB 2.0 ports quantity 2
Power
AC input frequency 50/60
AC input voltage 100-240
Energy Star certified -
Number of power supply units 1
Power consumption (typical) 61.2 W
Redundant power supply (RPS) support
Power Over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) Support
Total Power over Ethernet (PoE) budget 370 W
Security
Access Control List (ACL)
SSH/SSL support
Operational conditions
Non-operating altitude 0 - 4000
Operating altitude 0 - 3000
Operating relative humidity (H-H) 10 - 95
Operating temperature (T-T) 5 - 40
Storage relative humidity (H-H) 10 - 95 %
Storage temperature (T-T) -25 - 70
Other features
Power LED
Weight & dimensions
Depth 368 mm
Height 45 mm
Weight 5800 g
Width 445 mm
