ASUS A68HM-PLUS AMD A68H FCH D2H DDR3 Micro-ATX Motherboard - A68HM-PLUS
Quick Find: 922691

SAVE 26%

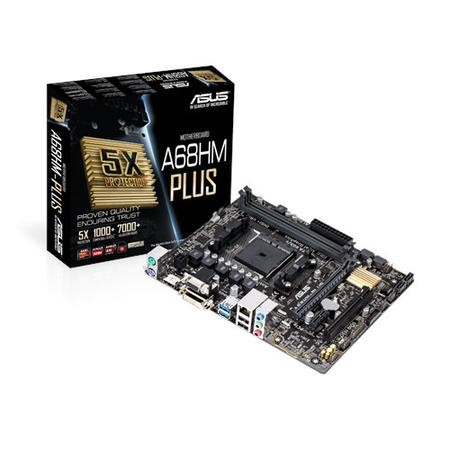

ASUS A68HM-PLUS AMD A68H FCH D2H DDR3 Micro-ATX Motherboard
Was : £49.99     You save : £13.02

Now   £36.97

Voltage regulator modules (VRMs) are among the most essential motherboard components. A good VRM intelligently delivers CPU power based on actual needs at any given time. ASUS was first with digital power design featuring faster sensing and response to deliver precise CPU power on demand. This great accuracy reduces energy waste and of course improves system stability thanks to more consistent delivery. Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device. Solid-state capa..

More Info...

Voltage regulator modules (VRMs) are among the most essential motherboard components. A good VRM intelligently delivers CPU power based on actual needs at any given time. ASUS was first with digital power design featuring faster sensing and response to deliver precise CPU power on demand. This great accuracy reduces energy waste and of course improves system stability thanks to more consistent delivery.

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device.

Solid-state capacitors are able to withstand extreme temperatures of up to 105C for as long as 5,000 hours - that's two-and-a-half (2.5X) times longer than traditional capacitors. This exceptional durability means superb real-world endurance to more typical PC operating temperatures, ensuring that ASUS motherboards continue working longer.

ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3X) longer compared to ordinary panels.


Packaging content
Cables included SATA
Drivers included
Weight & dimensions
Depth 183 mm
Width 226 mm
Back panel I/O ports
DVI-D ports quantity 1
eSATA ports quantity 0
Ethernet LAN (RJ-45) ports 1
Firewire (IEEE 1394) ports 0
HDMI ports quantity 1
Headphone outputs 1
Microphone in
PS/2 ports quantity 2
USB 2.0 ports quantity 2
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2
VGA (D-Sub) ports quantity 1
BIOS
ACPI version 4.0a
BIOS memory size 64 MB
BIOS type UEFI AMI
Expansion slots
PCI Express x1 (Gen 2.x) slots 1
PCI Express x16 (Gen 3.x) slots 1
PCI slots 1
Graphics
Parallel processing technology support -
Internal I/O
ATX Power connector (24-pin)
Chassis intrusion connector
CPU fan connector
Front panel audio connector
Number of chassis fan connectors 1
Number of COM connectors 1
Number of EATX power connectors 1
Number of Parallel ATA connectors 0
Number of SATA II connectors 0
Number of SATA III connectors 4
Peripheral (Molex) power connectors (4-pin) 1
S/PDIF out connector
Supported hard disk drive interfaces Serial ATA III
TPM connector
USB 2.0 connectors 2
USB 3.0 (3.1 Gen 1) connectors 1
Memory
Internal memory 32 GB
Maximum internal memory 32 GB
Memory channels Dual
Memory slots 2
Memory slots type DIMM
Non-ECC
Supported memory clock speeds 1333,1600,1866,2133,2400 MHz
Supported memory types DDR3-SDRAM
Unbuffered memory
Networking
Ethernet LAN
LAN controller Realtek 8111GR
Performance
Audio output channels 7.1
Energy Star certified -
Processor
Compatible processor series AMD A,Athlon
Processor family AMD
Processor socket Socket FM2+
