24 Port Netgear XSM7224S-100EUS ProSafe Rackmountable Managed Switch - XSM7224S-100EUS
Quick Find: 570004

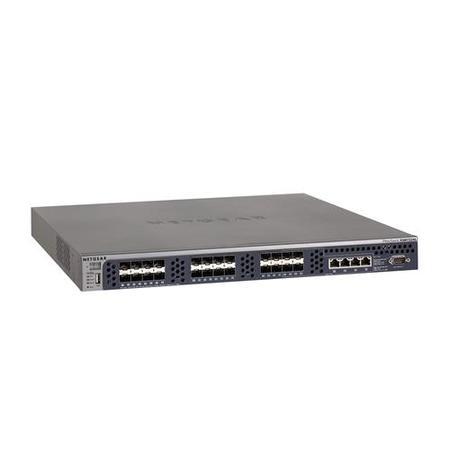

24 Port Netgear XSM7224S-100EUS ProSafe Rackmountable Managed Switch
Was: : £7189.97     You save: : £675.00

Now   £6514.97 Finance Available
click here

  • Model No. - XSM7224S
  • Switch type - Managed
More Info...


The NETGEAR ProSafe 10 Gigabit Stackable Managed Switch, XSM7224S, allows for a flexible top-of-rack infrastructure. All 24 ports of 10 Gigabit SFP+ interfaces are Gigabit/10 Gigabit capable and deliver wired speed performance with ultra low latency. Four shared 10GBase-T interfaces broaden 10 Gigabit connectivity with auto-sensing RJ45. Local/distant stacking provides versatile 10 Gigabit deployment possibilities, such as Distributed (LACP) Aggregation for virtualized servers and storage

Data transmission
Jumbo Frames support
MAC address table 32000 entries
Maximum data transfer rate 10 Gbit/s
Number of trunks 64
Number of VLANs 1024
Supported data transfer rates 100/1000/10000Mbps
Switching capacity - Gbit/s
Throughput 357 Mpps
Certification CE\nCSA\nFCC\nVCCI\nUL
Colour of product Silver
LED indicators Fan fail,LAN
Rack mounting
Ventilation fan(s) 4
Management features
MIB support
Multicast support
Quality of Service (QoS) support
Switch layer L2+
Switch type Managed
System event log
Web-based management
10G support
Broadcast storm control
DHCP client
DHCP server
Flow control support
Full duplex
IGMP snooping
IP routing
Link aggregation
Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Port mirroring
Rate limiting
Spanning tree protocol
Optical fiber
Fiber ethernet cabling technology 1000BASELX,1000BASESX
Flash memory 128 MB
Packet buffer memory 16 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 30, 28, 30
Console port RS-232
Copper ethernet cabling technology 1000BASE-T,1000BASE-TX,100BASE-TX,10GBASE-T
USB 2.0 ports quantity 1
Input voltage 100 - 240
Power consumption (typical) 195.2 W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) Support -
Management protocols SNMP, LLDP, LLDP-ME, TFTP, SFTP, HTTP, SCP
Supported network protocols TFTP, SFTP, HTTP, SCP, IPv4/IPv6, TCP/UDP
Access Control List (ACL)
MAC address filtering
Security algorithms SSH,SSL/TLS
SSH/SSL support
Operational conditions
Heat dissipation 666.42 BTU/h
Operating altitude 0 - 3000
Operating relative humidity (H-H) 0 - 90
Operating temperature (T-T) 32 - 122
Operating temperature (T-T) 32 - 122 °F
Storage relative humidity (H-H) 0 - 95
Storage temperature (T-T) -20 - 70
Other features
Connectivity Technology Wired
Dimensions (W x D x H) 17.3 x 17 x 1.7
Dimensions (WxDxH) 440 x 441 x 43
Fan trays 2
Input frequency 50/60
Latency 4.1s/1.59s
Management platform CLI/GUI
Networking features Gigabit Ethernet
Power LED
Power supply type AC
Weight 6.3 kg
Weight 13.89 lbs
Packaging data
Cables included Serial
Weight & dimensions
Weight 6300 g
