TP-Link MC110CS Fast Ethernet Media Converter SC Single-mode - MC110CS
Quick Find: 556555

SAVE 15%
TP-Link MC110CS Fast Ethernet Media Converter SC  Single-mode
Was: : £59.99     You save: : £9.02

Now   £50.97



  • Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
  • Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Extend fiber distance up to 20km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply
More Info...

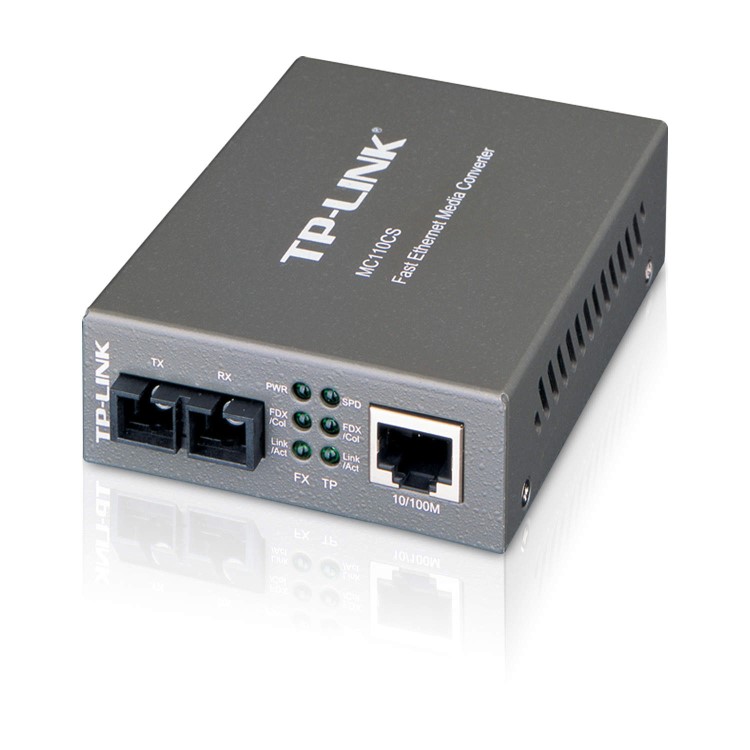

TP-Link MC110CS Fast Ethernet Media Converter (SC Single-mode)

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Features

  • Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
  • Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Extend fiber distance up to 20km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply

Networking
Cabling technology UTP 3, 4, 5e, 5
Performance
Maximum transfer distance 20000 m
Wavelength 1310 nm
Ports & interfaces
Connectivity Technology Wired
Certificates
Certification FCC, CE
Operational conditions
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 40
Storage relative humidity (H-H) 5 - 90
Storage temperature (T-T) -40 - 70
Other features
Compliance industry standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Dimensions (WxDxH) 94.5 x 73 x 27
Full duplex
I/O ports 1x 100M SC\n1x 100M RJ45
