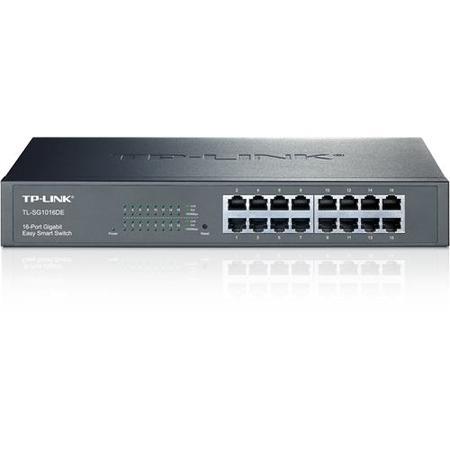

TP-Link 16 Port Gigabit Easy Smart Switch TL-SG1016DE

Quickfind code: 795784

Was: £101.97     You save: £7
£94.97

See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me
  • Model No. - TL-SG1016DE
  • Switch type - Managed
More Info » Tech Spec »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 0871 971 0005 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro, Solo and American Express, as well as Amazon payments and Paypal - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save up to 40% of power consumption, making it an eco-friendly solution for your business network.



·         16 10/100/1000Mbps ports provide instant large file transfers

·         Innovative energy-efficient technology reduces power consumption by up to 40%

·         IEEE 802.3x flow control provides reliable data transfers

·         10K Jumbo frame improves performance of large data transfers

·         Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics

·         Port and tag-based QoS enable smooth latency-sensitive traffic

·         Abundant VLAN features improve network security via traffic segmentation

·         IGMP Snooping optimizes multicast applications



Tech Spec

Data transmission
Jumbo Frames support
MAC address table 8000 entries
Number of queues 4
Number of VLANs 32
Store-and-forward
Switching capacity 32 Gbit/s
Throughput 23.8 Mpps
Design
Certification FCC, CE, RoHS
Colour of product Black
LED indicators
Rack mounting
Management features
Quality of Service (QoS) support
Switch layer L2
Switch type Managed
Networking
10G support
Auto MDI/MDI-X
Broadcast storm control
Flow control support
Full duplex
IGMP snooping
Link aggregation
Networking standards IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Port mirroring
Rate limiting
VLAN support
Performance
Packet buffer memory 0.5 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP ports quantity 0
SFP+ ports quantity 0
Power
AC input frequency 50/60
AC input voltage 100-240
Energy Star certified -
Power consumption (typical) - W
Power Over Ethernet (PoE)
Power over Ethernet (PoE) Support -
Operational conditions
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 40
Storage relative humidity (H-H) 5 - 90
Storage temperature (T-T) -40 - 70
Packaging data
User Guide
System Requirements
Compatible operating systems Windows 98SE, NT, 2000, XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Weight & dimensions
Depth 180 mm
Height 44 mm
Width 294 mm

Questions & Answers

Customer Reviews

TP-Link 16 Port Gigabit Easy Smart Switch - TL-SG1016DE reviews verified by reevooReevoo

Compatibility
9.7
Performance
9.7
Reliability
9.3
Noise level (1 quiet to 10 loud)
8.3
Value for money
9.0
Overall rating
9.5
Scores 9.5 out of 10 based on 15 reviews
