StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART PEX1S1P952

Quickfind code: 894299

Was: £40.97     You save: £4
£36.97

See all delivery & collection options

We deliver 6 days a week from 7am - 8pm, including the option of next day and Saturday delivery on 1000’s of products. We offer a range of delivery services for you to choose from, with many allowing you to choose a delivery date. Most of our delivery partners give you delivery time slots on the day of delivery and the ability to track your order. You may also have the option to collect from our Huddersfield or East Midlands stores, or from thousands of nationwide CollectPlus collection points.

Simply enter your postcode below to see your delivery options:

Enter delivery postcode for options and prices:
click to close
Why buy me

StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port. The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design. This 1-Port Serial/1-Port Parallel card offers compatibility with a bro..

More Info » Tech Spec »
click
Valid promotions & discounts
Price match

If you have seen this product cheaper elsewhere you could take advantage of our Price Match Promise!. Give us a call on 0871 971 0005 and we will try and price match where possible! Terms & Conditions apply.

click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro, Solo and American Express, as well as Amazon payments and Paypal - making placing an order with us as easy and convenient as possible.

payment options
click

Popular Bundles

Product Information

StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART

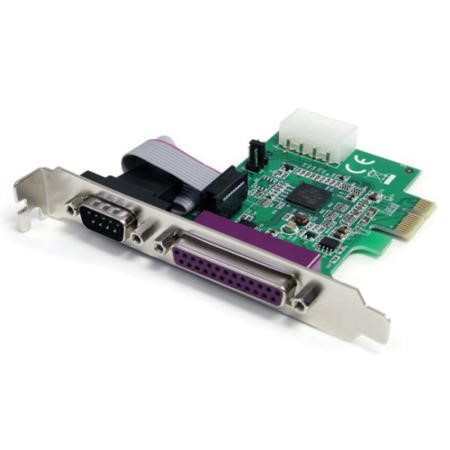

The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port.

The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design.

This 1-Port Serial/1-Port Parallel card offers compatibility with a broad range of operating systems including Windows® (32/64-bit) and Linux, for easy integration into mixed environments. The card also features an optional low profile/half-height bracket that enables you to install the card in virtually any computer case, regardless of form factor.



Tech Spec

Design
Colour of product Green
Performance
Chipset PLX OXPCIe952
FIFO (First In, First Out) 128 B
Supports EPP and ECP
Ports & interfaces
Host interface PCIe
Internal
Output interface Parallel,Serial
Parallel ports quantity 1
Serial ports quantity 1
Power
Power consumption (typical) 0.2 W
Operational conditions
Operating relative humidity (H-H) 0 - 60 %
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 125 °C
Other features
Compatible operating systems Windows 7(32/64bit)/ Server 2008 R2/ Vista(32/64bit)/ XP(32/64bit)/ Server 2003(32/64bit)/ Server 2000, Linux 2.6.x
Data transfer rate 1.5 Mbit/s
Ports quantity 2
Weight & dimensions
Depth 80 mm
Height 65 mm
Package depth 175 mm
Package height 31 mm
Package weight 150 g
Package width 143 mm
Weight 60 g
Width 12 mm
