Professional BNC Video & Power Cable 20m - CBL20BNC
Quick Find: 1023750

SAVE 13%
Professional BNC Video & Power Cable 20m
Was: : £14.97     You save: : £2.00

Now   £12.97



  • Centre conductor: 0.80mm 21% CCS
  • Insulation: Highly foamed PE
  • Insulation dia. over dielectric: 3.70+/-0.10mm
  • Foil shiled coverage: 100%
  • Braiding: 0.12x16x4 ALbraiding, 60% coverage, Nom. dia 4.20mm
  • Pwer core: 2x 17/0.16mm CU + 1.60mm PVC
  • Jacket: black PVC
  • Dia. over jacket: 6.0mm + 4.5mm
More Info...

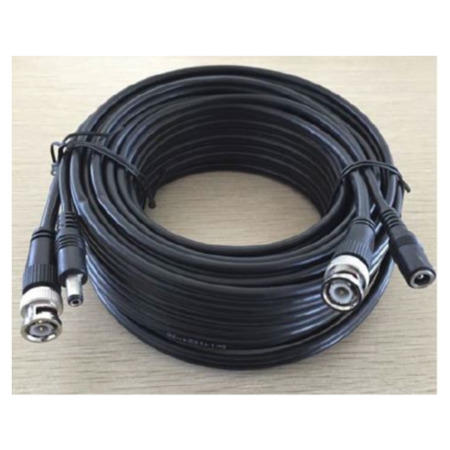

Ready made professional camera cable. 20m of composite cable allowing you to connect the camera to the recording equipment. Cable carries Video and Audio as well as Power. BNC terminated so compatible with all cameras and recording equipment.

Cable construction:

  • Centre conductor: 0.80mm 21% CCS
  • Insulation: Highly foamed PE
  • Insulation dia. over dielectric: 3.70+/-0.10mm
  • Foil shiled coverage: >100%
  • Braiding: 0.12x16x4 ALbraiding, 60% coverage, Nom. dia 4.20mm
  • Pwer core: 2x 17/0.16mm CU + 1.60mm PVC
  • Jacket: black PVC
  • Dia. over jacket: 6.0mm + 4.5mm
  • Plug of coaxial cable: BNC connector on both ends
  • Plug of power cable: 2.1x5.5x12mm Male and Female
  • Minimum bend radius: loaded 20x cable OD / unloaded 10x cable OD
  • Cable temperature rating:-10°C - +70°C
