ASUS 90MB0LS0-M0EAY0 Intel Z170 Chipset DDR4 ATX Motherboard - 90MB0LS0-M0EAY0
Quick Find: 1035203

SAVE 22%

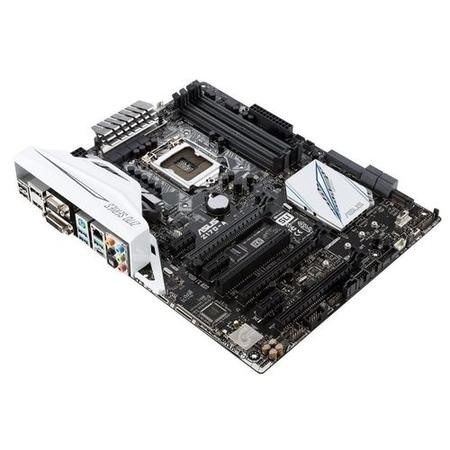

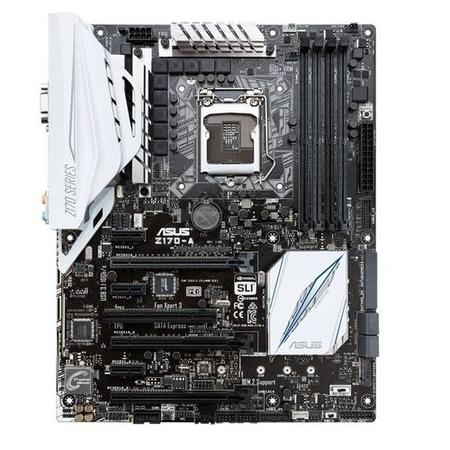

ASUS 90MB0LS0-M0EAY0 Intel Z170 Chipset DDR4 ATX Motherboard
Was : £165.97     You save : £36.00

Now   £129.97 Finance Available
click here


One click overclock and cooling 5-Way Optimization at your disposal it takes just one click to tune complex settings - for instant, highly-controllable performance boosts. The exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything el..

More Info...

One click overclock and cooling

5-Way Optimization at your disposal it takes just one click to tune complex settings - for instant, highly-controllable performance boosts. The exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else.

OC design- ASUS PRO clock technology

A dedicated base-clock (BCLK) generator designed for 6th-generation Intel processors that allows overclocked base clock frequencies up to or beyond 400 MHz. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU), to enhance voltage and base-clock overclocking control - providing an exciting new way to boost performance to extreme heights.

DDR4 overclocking strength in numbers

Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach heights: over DDR4-3400 MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, the second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.

Fast storage speed with SATA Express

Current SSDs devour up to 550 MB/s bandwidth, which is close to saturation point for SATA 6 Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard - and ensures that you and your system won't get left behind.

Speed up with onboard M.2 up to 32 Gbit/s

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32 Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Ultimate-speed 10 Gbit/s with USB 3.1 onboard

With one USB 3.1 Type-A port and one reversible USB 3.1 Type-C for the very fastest USB connections, you'll experience data-transfer speeds of up to 10 Gbit/s - or twice as fast USB 3.0. USB 3.1 is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further.

LANGuard

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

ASUS Z170-A - Motherboard - ATX - LGA1151 Socket - Z170 - USB 3.0, USB 3.1, USB-C - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)


Weight & dimensions
Depth 244 mm
Width 305 mm

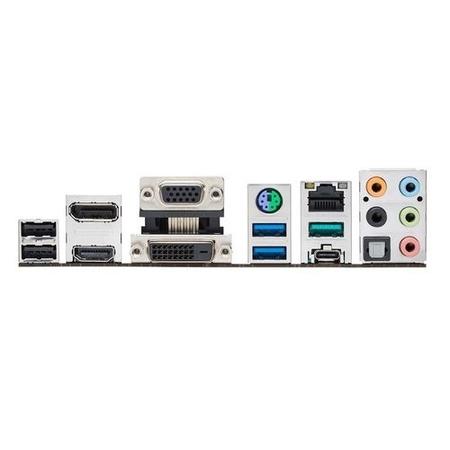

Back panel I/O ports
DisplayPorts quantity 1
DVI-D ports quantity 1
eSATA ports quantity 0
Ethernet LAN (RJ-45) ports 1
Firewire (IEEE 1394) ports 0
HDMI ports quantity 1
Headphone outputs 1
Microphone in
PS/2 ports quantity 1
S/PDIF in port
USB 2.0 ports quantity 2
USB 3.0 (3.1 Gen 1) Type-A ports quantity 2
USB 3.1 (3.1 Gen 2) Type-A ports quantity 2
VGA (D-Sub) ports quantity 1
BIOS
ACPI version 5.0
BIOS memory size 16 MB
BIOS type UEFI AMI
Clear CMOS jumper
Expansion slots
PCI Express x1 (Gen 3.x) slots 3
PCI Express x16 (Gen 3.x) slots 3
PCI slots 1
Graphics
Parallel processing technology support 4-Way CrossFireX,Quad-GPU SLI
Internal I/O
ATX Power connector (24-pin)
CPU fan connector
EPS power connector (8-pin)
EZ plug connector
Front panel audio connector
Number of chassis fan connectors 4
Number of COM connectors 1
Number of EATX power connectors 1
Number of M.2 (M) slots 1
Number of Parallel ATA connectors 0
Number of SATA Express ports 1
Number of SATA II connectors 0
Number of SATA III connectors 6
S/PDIF out connector
Supported hard disk drive interfaces Serial ATA,Serial ATA III
Thunderbolt headers 1
TPM connector
USB 2.0 connectors 2
USB 3.0 (3.1 Gen 1) connectors 2
Memory
Maximum internal memory 64 GB
Memory channels Dual
Memory slots 4
Memory slots type DIMM
Non-ECC
Supported memory clock speeds 2133,2400,2600,2666,2800,2933,3000,3100,3200,3300
Supported memory types DDR4-SDRAM
Unbuffered memory
Networking
Ethernet interface type Gigabit
Ethernet LAN
Performance
Audio output channels 7.1
Energy Star certified -
Processor
Compatible processor series Celeron,Core i3,Core i5,Core i7,Pentium
Processor family Intel
Processor socket LGA1151
