We are the world's biggest motherboard manufacturer, and renowned our design thinking that revolves around users – just like you. Our engineers employ exacting standards to guarantee quality throughout the product's life, choosing the finest components for real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and undergo a minimum of 7,000 hours of strict validation. That gives you the peace of mind of knowing that ASUS motherboards are fit for all environments and applications. To build your PC with the best foundations, build it with an ASUS motherboard.
Hardware safeguards to ensure long-term durability
Our be-the-best ethos underscores the choice of every single component that goes into your ASUS motherboard. We focus relentlessly on quality to ensure long-term system reliability and performance.
Precise digital power control with ASUS DIGI+ VRM
Voltage regulator modules (VRMs) are among the most essential motherboard components. A good VRM intelligently delivers CPU power based on actual needs at any given time. ASUS was first with digital power design featuring faster sensing and response to deliver precise CPU power on demand. This great accuracy reduces energy waste and of course improves system stability thanks to more consistent delivery.
Enhanced DRAM overcurrent protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device.
Stainless-steel back I/O that lasts 3X longer
ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3X) longer compared to ordinary panels.
ESD Guards for protection from electrostatic discharge
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.
Every ASUS motherboard is compatible with thousands of devices. Our engineers fit and assess both server and consumer CPUs, hundreds of memory modules, dozens of graphics cards, loads of storage devices, power supplies, network devices, displays, optical drives, peripherals and many more. We do this to give you complete confidence in our products and their superb compatibility.

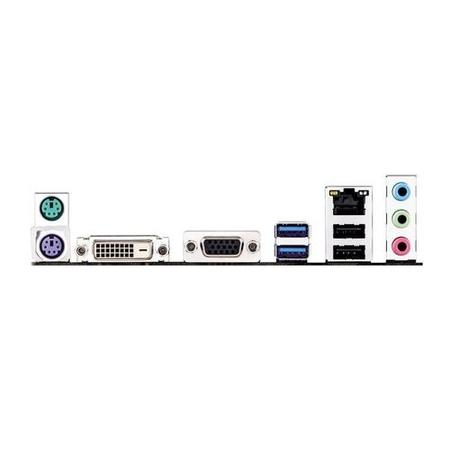

Back panel I/O ports
|DVI-D ports quantity||1|
|eSATA ports quantity||0|
|Ethernet LAN (RJ-45) ports||1|
|Firewire (IEEE 1394) ports||0|
|HDMI ports quantity||0|
|PS/2 ports quantity||2|
|USB 2.0 ports quantity||2|
|USB 3.0 (3.1 Gen 1) Type-A ports quantity||2|
|VGA (D-Sub) ports quantity||1|
|BIOS memory size||8 MB|
|BIOS type||UEFI AMI|
|PCI Express x1 (Gen 2.x) slots||1|
|PCI Express x16 (Gen 3.x) slots||1|
|Parallel processing technology support||-|
|ATX Power connector (24-pin)|
|CPU fan connector|
|Front panel audio connector|
|Number of chassis fan connectors||1|
|Number of COM connectors||1|
|Number of Parallel ATA connectors||0|
|Number of SATA II connectors||0|
|Number of SATA III connectors||4|
|Peripheral (Molex) power connectors (4-pin)||1|
|S/PDIF out connector|
|Supported hard disk drive interfaces||Serial ATA III|
|USB 2.0 connectors||2|
|USB 3.0 (3.1 Gen 1) connectors||0|
|Maximum internal memory||32 GB|
|Memory slots type||DIMM|
|Supported memory clock speeds||1333,1600,1866,2133,2400 MHz|
|Supported memory module capacities||2GB,4GB,8GB|
|Supported memory types||DDR3-SDRAM|
|Ethernet interface type||Gigabit|
|LAN controller||Realtek 8111GR|
|Audio output channels||7.1|
|Audio system||Realtek ALC887-VD|
|Energy Star certified||-|
|Motherboard chipset||AMD A68|
|Motherboard chipset family||AMD|
|Motherboard form factor||Micro ATX|
|Windows operating systems supported||Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64|
|Compatible processor series||AMD A,Athlon,Athlon X2,Sempron|
|Maximum number of SMP processors||1|
|Processor socket||Socket FM2+|
|Quick Installation Guide|
